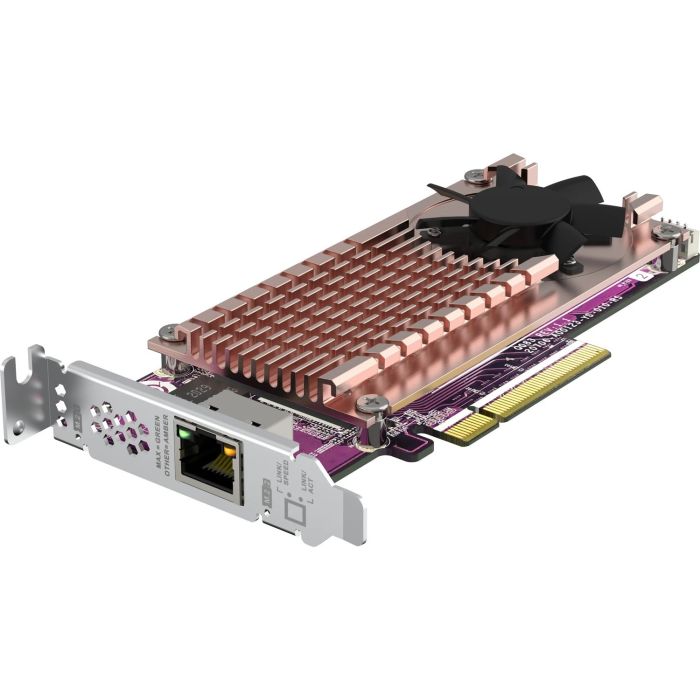

QNAP QM2-2P10G1TB 2x M.2 NVMe 10GbE expansion network adapter

The QNAP QM2-2P10G1TB is a powerful PCIe Gen3 x8 expansion card that enables the simultaneous use of two M.2 NVMe SSDs and a 10GbE network connection via RJ-45 connector. The card is designed to improve the responsiveness and throughput of NAS systems using SSD cache, SSD volume or Qtier technology, while enabling the transition to high-speed 10GbE networking. It supports multiple transfer speeds (10G/5G/2.5G/1G/100M) and allows the use of existing copper infrastructure. Built-in cooling module and temperature sensors ensure stable performance of NVMe SSDs even under heavy loads. The card is suitable for demanding business environments, virtualization, large file transfers and data-intensive applications.

Specifications:
Model: QM2-2P10G1TB
Device Type: PCIe expansion card for NVMe SSD and 10GbE
Interface: PCIe Gen3 x8
SSD slots: 2 × M.2 2280 NVMe (PCIe Gen3 x4 per slot)
Network Connector: 1 × RJ-45 (10GBASE-T, Multi-Gig)
Network speeds: 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s, 100Mb/s
Network Controller: Marvell AQtion AQC113C
Features: SSD cache, SSD volume, Qtier
Cooling: cooling module with fan and temperature sensors
Bracket: low-profile (default), full-height bracket also included
Compatibility: compatible QNAP NAS models with PCIe slot(see QNAP compatibility list)
Supported systems: QTS / QuTS hero, Windows, Linux
Dimensions: 152.65 × 18.9 × 68.9 mm
