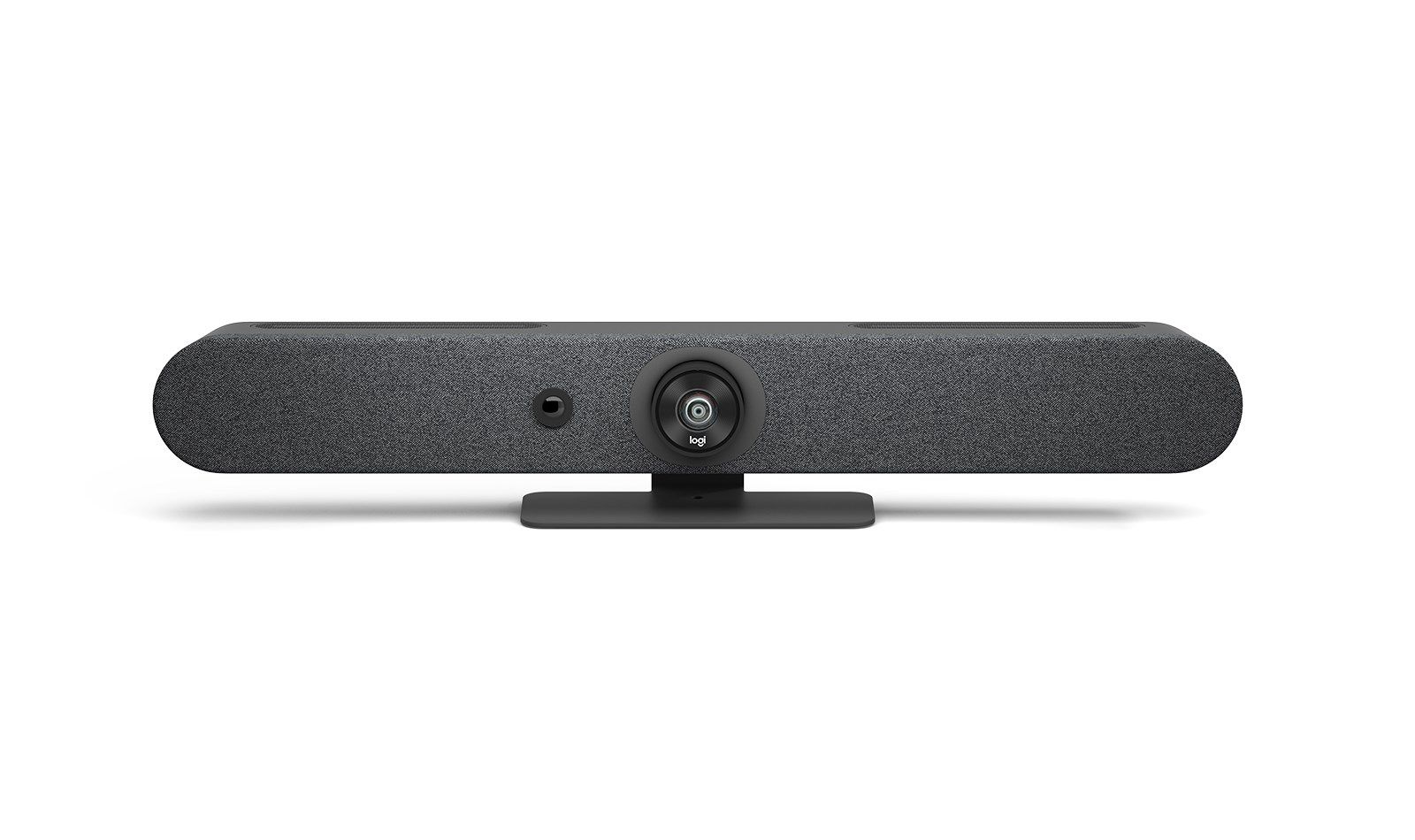

RALLY BAR MINI - GRAPHITE -EMEA /RALLY BAR MINI EU /AP

Features
Telepresence: No

Power
Current: 4.754 A
AC input voltage: 100 - 240 V
Power source type: AC
DC input voltage: 19 V
Power plug type: Type C
Number of batteries supported: 1
Battery capacity: 220 mAh
Battery technology: Lithium

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Heat dissipation: 64 BTU/h
Operating relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions
Height: 91.4 mm
Package height: 199 mm
Package weight: 5.8 kg
Width: 719 mm
Package width: 191 mm
Depth: 101 mm
Weight: 4.03 kg
Package depth: 789 mm

Network
Supported network protocols: IPv4, IPv6
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11a, 802.11g, 802.11b
Ethernet LAN data rates: 10, 1000, 100 Mbit/s
Security algorithms: 128-bit AES
Ethernet LAN: Yes
Wi-Fi: Yes

Performance
Product type: Group video conferencing system
Tilt angle range: -15 - 15°
Pan range: -25 - 25°
PTZ control: Yes
Product colour: Graphite
Packaging content: Rally Bar Mini Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main lens and AI Viewfinder User documentation

Packaging content
Batteries included: Yes
Cables included: HDMI, DC, AC, USB Type-A to USB Type-C
Power cable length: 2.5 m
Remote control included: Yes
Quick start guide: Yes
AC adapter included: Yes
HDMI cable length: 2 m

Audio
Audio beamforming: Yes
Noise reduction: Yes
Microphone pick-up range: 4.5 m
Built-in speaker(s): Yes
Echo cancellation: Yes
Sample rates: 0 - 48 kHz
Output level: 92/99 dB
RMS rated power: 8 W
Line-out impedance: 4 Ω
Output voltage Total Harmonic Distortion (THD): 2%

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
HDMI ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
DC-in jack: Yes
HDMI input ports quantity: 1
USB connector type: USB Type-C, USB Type-A
HDMI output ports quantity: 2

Camera
Zoom capability: Yes
Horizontal field of view: 113°
Diagonal field of view: 120°
Vertical field of view: 80.7°
Remote control interface: Bluetooth
Digital zoom: 4x

Battery
Battery capacity: 0.675 Wh

Logistics data
Master (outer) case length: 330 mm
Harmonized System (HS) code: 85176990
Master (outer) case width: 300 mm
Master (outer) case height: 160 mm
Master (outer) case gross weight: 4.73 kg

Video
Maximum frame rate: 30 fps
Supported video modes: 2160p, 720p, 1440p, 576p, 900p
HD type: 4K Ultra HD

Microphone
Microphone direction type: Omnidirectional
Sound pressure level (max): 90 dB
Microphone sensitivity: -36 dB
Number of microphones: 6
Microphone frequency: 90 - 16000 Hz

Safety warning
Warnings: Must not be disposed of in the general waste bin, the product requires special disposal., Keep out of the reach of children., Avoid contact with water and high humidity.

Computer system
Windows operating systems supported: Yes
Mac operating systems supported: MacOS
