Reflecta DigitDia evolution

Reflecta DigitDia evolution

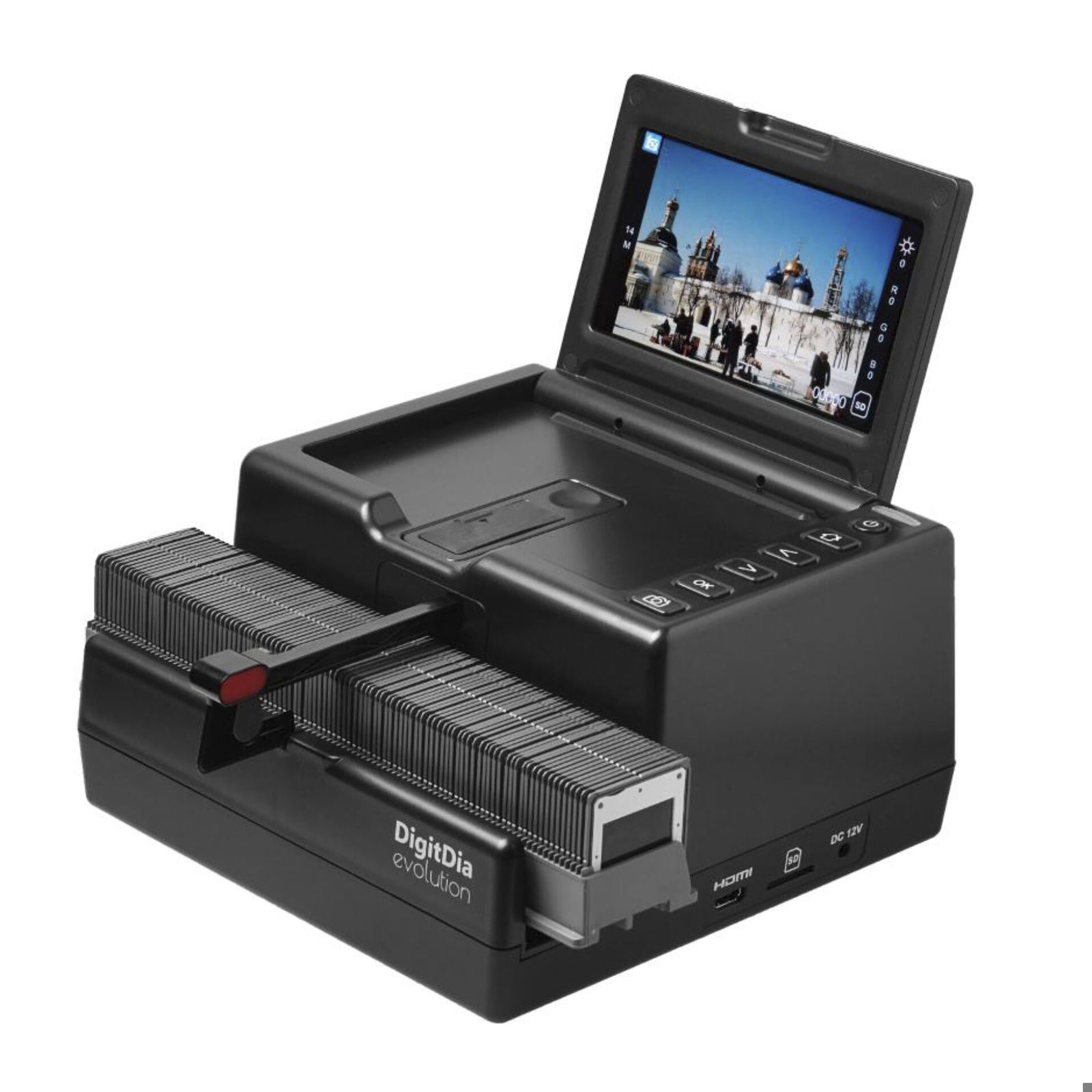

With the innovative DigitDia evolution you can now view and digitise your entire slide archive directly from the magazines. The computer-independent device is very easy to operate. As with a conventional slide projector, the slides are played back immediately after being inserted into the device. This is done on a brilliant IPS display that is integrated in the unit. Optionally, you can also connect an external monitor, a TV set or a projector via the HDMI output of the DigitDia evolution. This means that a classic slide show is once again possible. Both playback and digitisation of the slides can be done manually or automatically. The automatic scanning of a complete magazine with 50 slides is done in only four minutes in best resolution, whereby the digital images are saved directly on an SD card.

Features:

• Slides that can be used: frames (5 x 5 cm) with a thickness of up to 3.2 mm
• Image sensor: 1 / 2.33" - 15.3 megapixel CMOS sensor
• Resolution: 4608 x 3072 pixels or 5760 x 3840 pixels (interp.)
• Scanning speed: less than 5 seconds per slide (automatic mode)
• Display: 17.8 cm (7") IPS with wide viewing angle
• Colour correction: red, green, blue (RGB -2,0 EV to +2,0 EV)
• Exposure compensation: automatic manual (-2,0 EV to +2,0 EV)
• Light source: diffuse daylight LED light source for optimal colour rendering. Reduces dust and scratches.
• Digital output format: JPEG (low compression)
• Usable magazines: Universal (DIN 108), CS, LKM
• Supported memory cards: SD/SDHC cards with up to 128 GB
• Power supply: Mains adapter 12V/1.5A
• Video interface: HDMI (Type A)
