Design
Product colour: Grey, Black
Form factor: Dome
Mounting type: Ceiling/wall
Power
Power consumption (max): 12 W
Power source type: DC, PoE
DC output voltage: 12, 48
DC output current: 1 A
Security
Intelligent Video Surveillance (IVS) system features: Human detection
Video motion detection: Yes
Operational conditions
Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%
Management features
Reset button: Yes
Weight & dimensions
Diameter: 12.6 cm
Height: 49.2 mm
Weight: 293 g
Network
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af
Ethernet LAN: Yes
Supported network protocols: HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Live view: Yes
Number of users: 20 user(s)
User access level: Administrator, User
System requirements
Mac operating systems supported: Yes
Mobile operating systems supported: Android, iOS
Windows operating systems supported: Yes
Performance

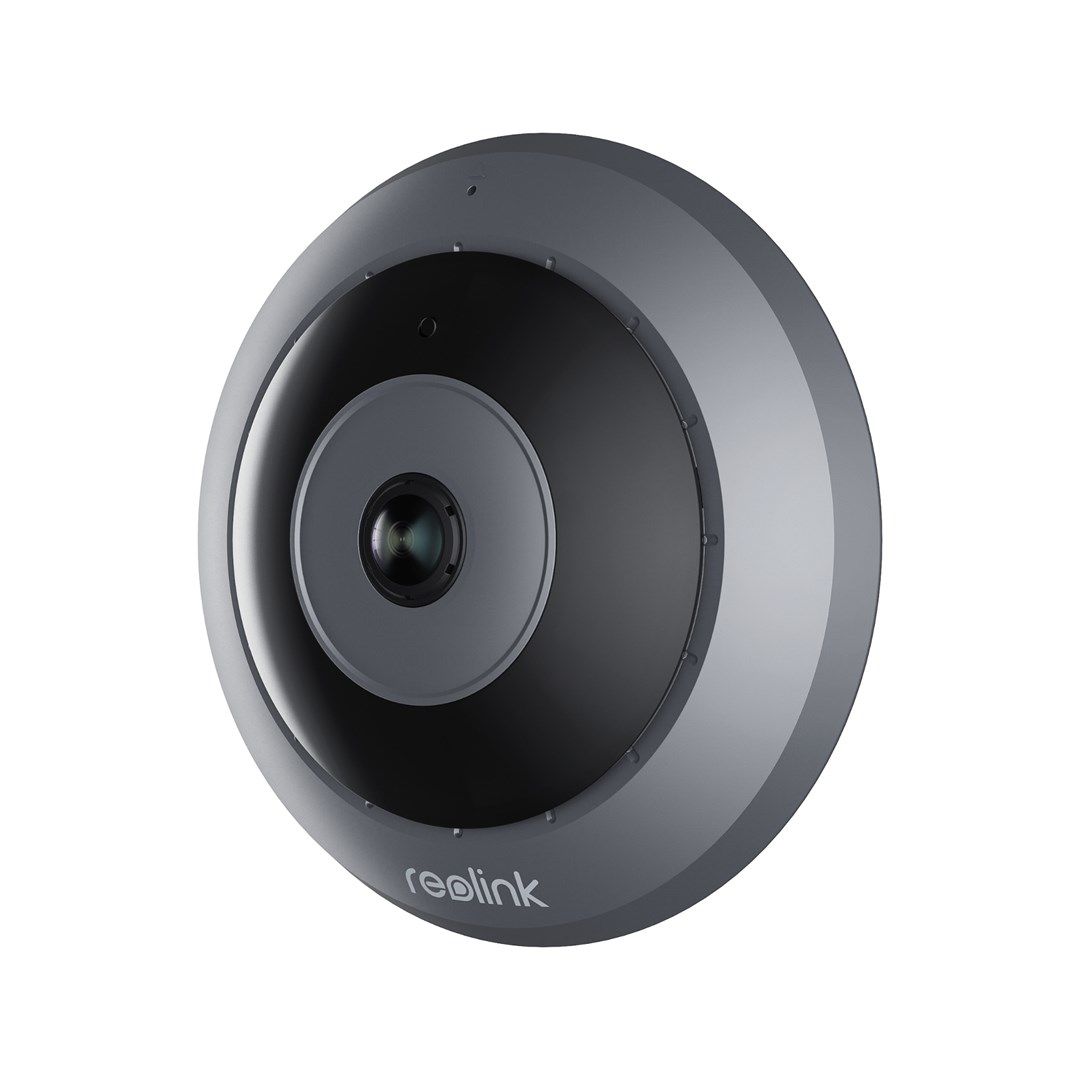

Type: IP security camera
Connectivity technology: Wired
Placement supported: Indoor & outdoor
Infrared (IR) cut-off filter: Yes
Virtual assistant: Google Assistant
Packaging content
Number of cameras: 1
Manual: Yes
Mounting kit: Yes
Screws included: Yes
Audio
Audio system: 2-way
Built-in microphone: Yes
Built-in speaker(s): Yes
Storage
Maximum memory card size: 256 GB
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Built-in HDD: No
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Camera
Lens viewing angle, horizontal: 180°
Lens viewing angle, vertical: 180°
Lens viewing angle, diagonal: 180°
Image sensor
Optical sensor size: 25.4 / 2.5 mm (1 / 2.5")
Sensor type: CMOS
Number of sensors: 1
Video
Video formats supported: H.265
Supported graphics resolutions: 2560 x 2560
Total megapixels: 6.5 MP
Maximum resolution: 2560 x 2560 pixels
Bit rate: 64 Kbps - 8192 Kbps
Frame rate: 25 fps
Video compression formats: H.265
Video recording: Yes
Night vision
LED type: IR
Night vision distance: 8 m
Night vision: Yes
Infra-red wavelength: 850 nm
Lens system
Fixed focal length: 1.98 mm
Maximum aperture number: 2
Number of lenses: 1
