Design
International Protection (IP) code: IP66
Mounting type: Wall
Form factor: Bullet
Product colour: White
Power
Power consumption (max): 12 W
DC output current: 1 A
DC output voltage: 12, 48
Power source type: DC, PoE
Security
Intelligent Video Surveillance (IVS) system features: Vehicle detection, Pet detection, Human detection
Video motion detection: Yes
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -10 - 50 °C
Management features
Reset button: Yes
Weight & dimensions
Diameter: 6.7 cm
Depth: 187 mm
Weight: 460 g
Network
User access level: Administrator, User
Ethernet LAN: Yes
Number of users: 20 user(s)
Live view: Yes
Supported network protocols: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af
System requirements
Windows operating systems supported: Yes
Mac operating systems supported: Yes
Mobile operating systems supported: iOS, Android
Performance
Infrared (IR) cut-off filter: Yes
Colour temperature: 6500 K
Placement supported: Indoor & outdoor
Virtual assistant: Google Assistant
Luminous flux: 450 lm
Built-in light: Yes
Connectivity technology: Wired

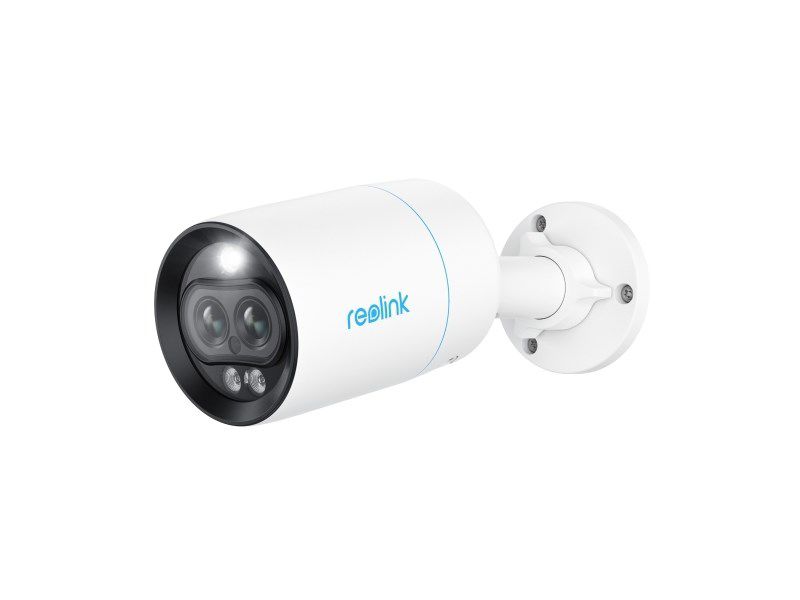

Type: IP security camera
Packaging content
Number of cameras: 1
Screws included: Yes
Mounting kit: Yes
Audio
Built-in speaker(s): Yes
Audio system: 2-way
Built-in microphone: Yes
Storage
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB
Built-in HDD: No
Card reader integrated: Yes
Ports & interfaces
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1
Camera
Lens viewing angle, horizontal: 43 - 109°
Lens viewing angle, vertical: 25 - 58°
Image sensor
Number of sensors: 1
Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Video
Supported video modes: 2160p
Video formats supported: H.264, H.265
Frame rate: 20 fps
Bit rate: 128 Kbps - 4096 Kbps
Video compression formats: H.265, H.264
Video recording: Yes
Total megapixels: 8 MP
Supported graphics resolutions: 3840 x 2160
Maximum resolution: 3840 x 2160 pixels
Night vision
Night vision: Yes
LED type: IR/White
Night vision distance: 15 m
Infra-red wavelength: 850 nm
Lens system
Number of lenses: 2
Maximum aperture number: 1.6
