Design
Mounting type: Ceiling
International Protection (IP) code: IP66
LED indicators: Yes
Product colour: White
Form factor: Dome
Power
DC output current: 1 A
DC output voltage: 12, 48
Power consumption (max): 12 W
Power source type: DC, PoE
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -10 - 50 °C
Management features
Reset button: Yes
Weight & dimensions
Height: 103.8 mm
Diameter: 11.7 cm
Weight: 510 g
Network
Number of users: 20 user(s)
Wi-Fi: No
User access level: Administrator, User
Supported network protocols: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af
Bluetooth: No
System requirements
Mobile operating systems supported: iOS, Android
Windows operating systems supported: Yes
Mac operating systems supported: Yes
Performance
Placement supported: Indoor & outdoor
Virtual assistant: Google Assistant
Connectivity technology: Wired

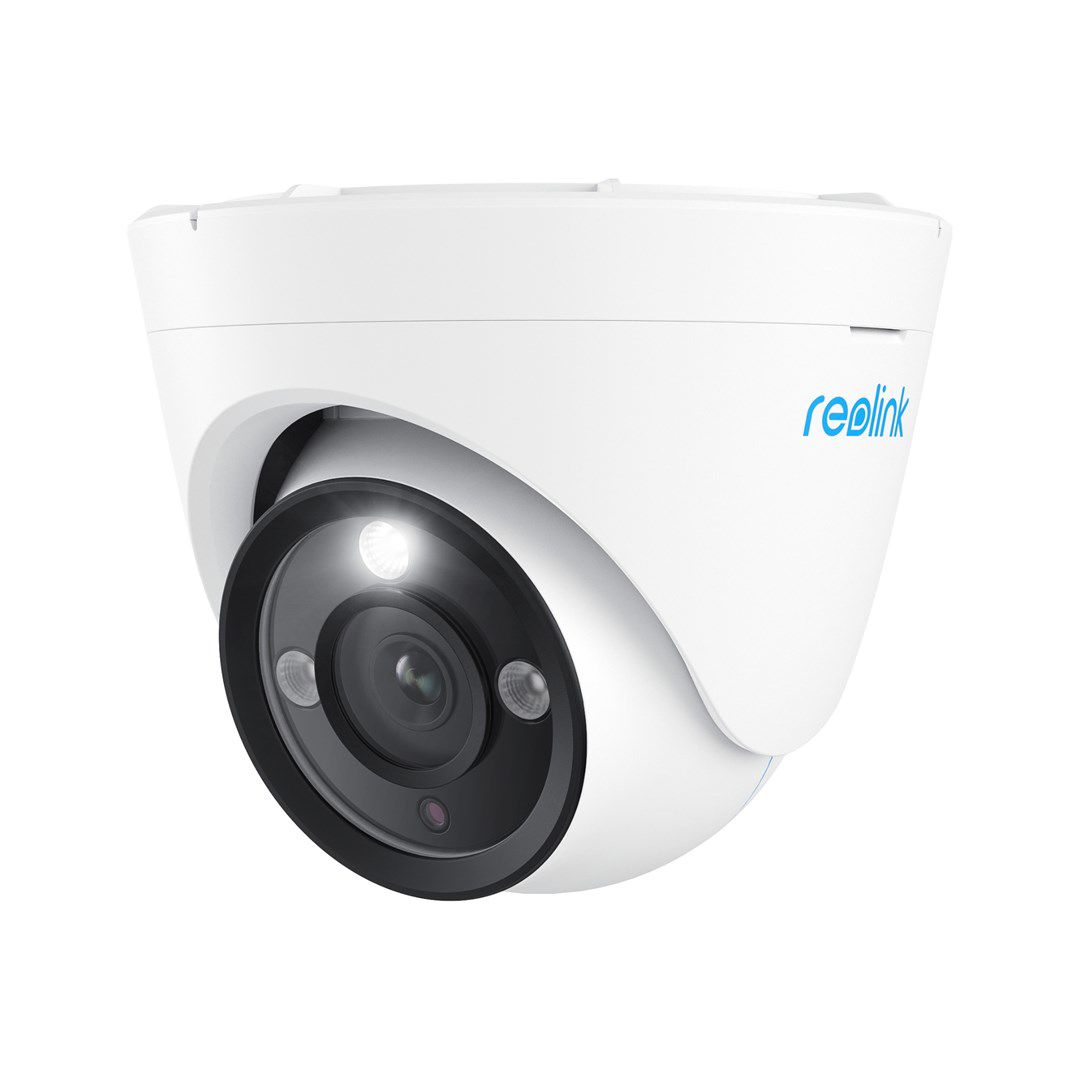

Type: IP security camera
Packaging data
Package height: 140 mm
Package weight: 780 g
Package depth: 140 mm
Package width: 140 mm
Packaging content
Number of cameras: 1
Cables included: LAN (RJ-45)
Screws included: Yes
Mounting kit: Yes
Audio
Built-in speaker(s): Yes
Bit rate range: 64 - 8192 Kbit/s
Built-in microphone: Yes
Audio system: 2-way
Storage
Maximum memory card size: 256 GB
Compatible memory cards: MicroSD (TransFlash)
Built-in HDD: No
Card reader integrated: Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Camera
Lens viewing angle, vertical: 30 - 53°
Lens viewing angle, horizontal: 50 - 94°
Image sensor
Sensor type: CMOS
Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Video
Frame rate: 25 fps
Video compression formats: H.265
Total megapixels: 8 MP
Maximum resolution: 3840 x 2160 pixels
Night vision
Night vision distance: 30 m
LED type: IR
Number of illumination LEDs: 2
Night vision: Yes
Infra-red wavelength: 850 nm
Lens system
Maximum aperture number: 1.6
Focal length range: 2.8 - 8 mm
