Design
Mounting type: Wall
Product colour: White
LED indicators: Yes
International Protection (IP) code: IP67
Weatherproof: Yes
Form factor: Bullet
Power
DC output voltage: 12
Power consumption (max): 12 W
DC output current: 1 A
Power source type: DC
Security
Security algorithms: WPA2-PSK, WPA-PSK
Intelligent Video Surveillance (IVS) system features: Human detection, Pet detection, Vehicle detection
Operational conditions
Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%
Management features
Reset button: Yes
Weight & dimensions
Height: 186 mm
Diameter: 6.7 cm
Weight: 415 g
Network
Bluetooth: No
Networking standards: IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11b
Supported network protocols: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11a, 802.11g, 802.11b
Ethernet LAN: Yes
Wi-Fi: Yes
User access level: Administrator, User
Number of users: 20 user(s)
System requirements
Mobile operating systems supported: iOS, Android
Mac operating systems supported: Yes
Windows operating systems supported: Yes
Performance
Infrared (IR) cut-off filter: Yes
Antenna type: External
Day/night mode: Yes
Connectivity technology: Wired & Wireless

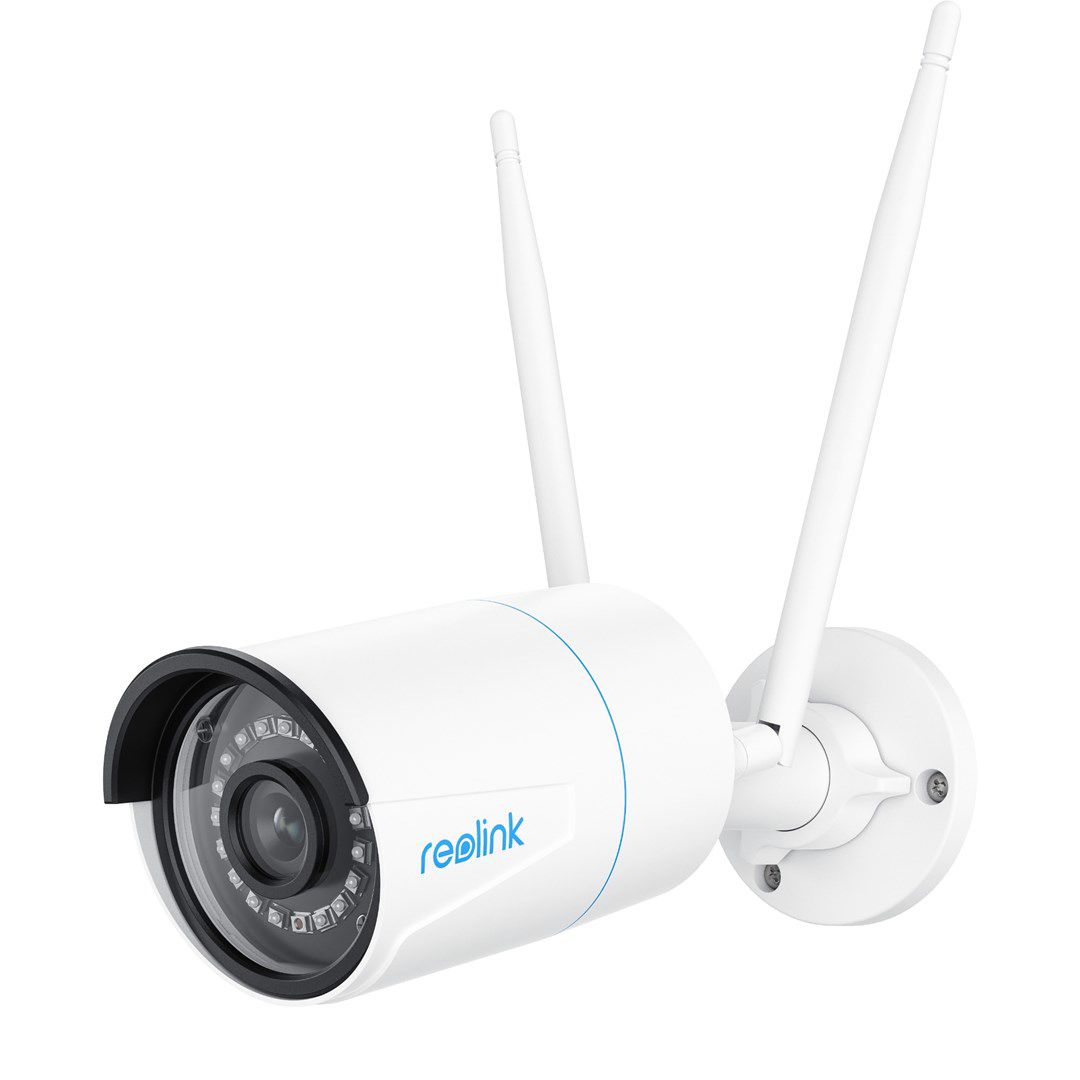

Type: IP security camera
Placement supported: Outdoor
Antennas quantity: 2
Virtual assistant: Google Assistant
Packaging data
Package height: 125 mm
Package weight: 880 g
Package depth: 250 mm
Package width: 122 mm
Packaging content
Number of cameras: 1
Cables included: LAN (RJ-45)
Mounting kit: Yes
Screws included: Yes
Audio
Built-in speaker(s): Yes
Bit rate range: 64 - 8192 Kbit/s
Audio system: 2-way
Built-in microphone: Yes
Storage
Built-in HDD: No
Compatible memory cards: MicroSD (TransFlash)
Card reader integrated: Yes
Maximum memory card size: 256 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Camera
Lens viewing angle, horizontal: 80°
Lens viewing angle, vertical: 48°
Image sensor
Sensor type: CMOS
Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Video
Total megapixels: 5 MP
Video recording: Yes
Frame rate: 20 fps
Video compression formats: H.264
Maximum resolution: 2560 x 1920 pixels
Night vision
Number of illumination LEDs: 18
LED type: IR
Night vision distance: 30 m
Infra-red wavelength: 850 nm
Night vision: Yes
Lens system
Number of lenses: 1
Fixed focal length: 4 mm
Maximum aperture number: 2
