Design
Product colour: White
LED indicators: Yes
International Protection (IP) code: IP66
Mounting type: Wall
Power
DC output voltage: 12, 48
Power consumption (max): 12 W
Power source type: DC, PoE
DC output current: 1 A
Operational conditions
Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%
Management features
Reset button: Yes
Weight & dimensions
Depth: 188 mm
Height: 67 mm
Weight: 452 g
Width: 63 mm
Network
Bluetooth: No
Networking standards: IEEE 802.3af
Supported network protocols: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Number of users: 20 user(s)
Wi-Fi: No
User access level: Administrator, User
System requirements
Mac operating systems supported: Yes
Windows operating systems supported: Yes
Mobile operating systems supported: iOS, Android
Performance
Connectivity technology: Wired

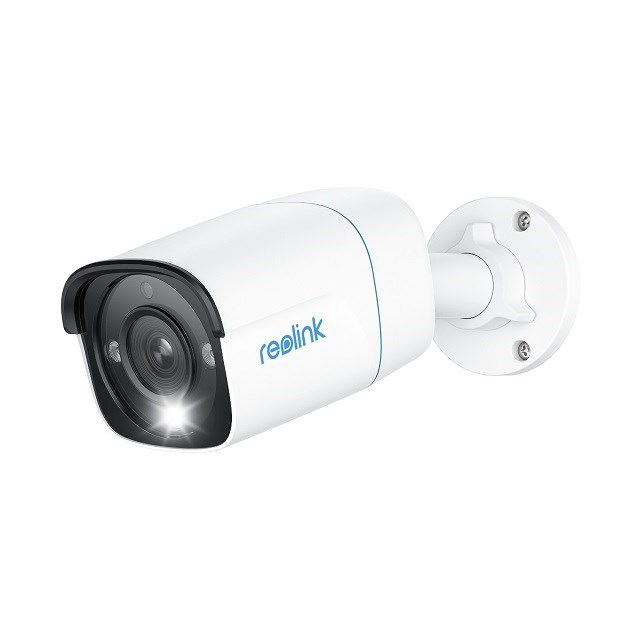

Type: IP security camera
Virtual assistant: Google Assistant
Placement supported: Indoor & outdoor
Packaging data
Package width: 122 mm
Package depth: 196 mm
Package weight: 700 g
Package height: 105 mm
Packaging content
Mounting kit: Yes
Cables included: LAN (RJ-45)
Screws included: Yes
Number of cameras: 1
Audio
Audio system: 2-way
Built-in speaker(s): Yes
Built-in microphone: Yes
Bit rate range: 64 - 8192 Kbit/s
Storage
Compatible memory cards: MicroSD (TransFlash)
Card reader integrated: Yes
Built-in HDD: No
Maximum memory card size: 256 GB
Ports & interfaces
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1
Camera
Lens viewing angle, horizontal: 100°
Lens viewing angle, vertical: 50°
Image sensor
Number of sensors: 1
Sensor type: CMOS
Optical sensor size: 25.4 / 2.49 mm (1 / 2.49")
Video
Maximum resolution: 4512 x 2512 pixels
Total megapixels: 12 MP
Night vision
Night vision distance: 30 m
Infra-red wavelength: 850 nm
Number of illumination LEDs: 2
Night vision: Yes
LED type: IR
Lens system
Fixed focal length: 2.8 mm
Maximum aperture number: 2
Number of lenses: 1
