REV Zwischenstecker mit integr. LED-Dimmer, weiß EMD201 20270112

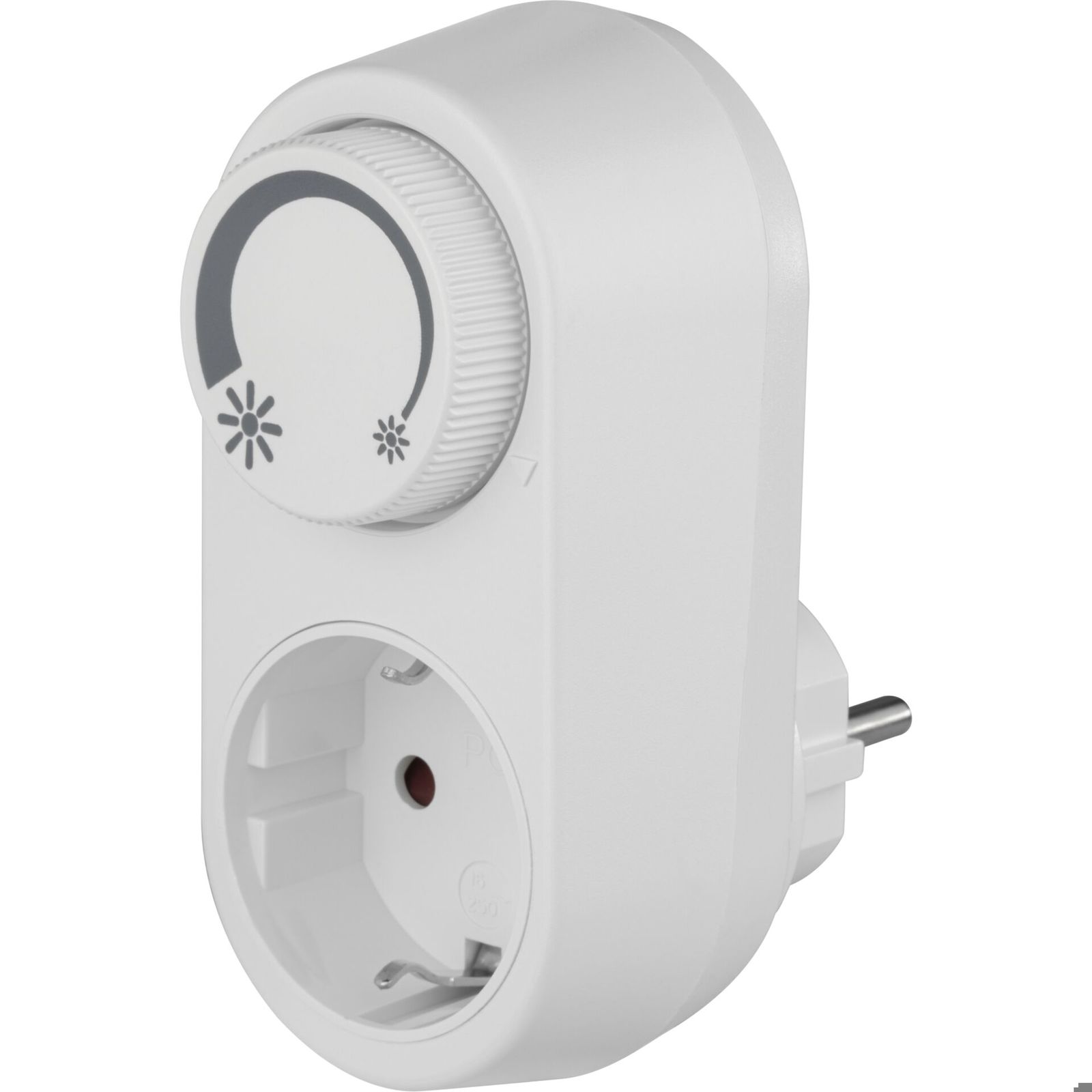

REV intermediate plug with integrated LED dimmer, white EMD201 20270112

Safe lighting accessories for replacement and retrofitting from REV Ritter for a reliable electrical installation in and around the home. Thanks to the use of tested materials and careful workmanship, these tried-and-tested products guarantee high quality and long-lasting use. From simple insulating material sockets to reliable intermediate switches and extendable light pendants - REV's extensive product range can fulfil the individual requirements of your home electrics.

• PRACTICAL - ideal for dimming your lights via rotary knob
• EASY - adapter as an intermediate plug for a standard socket, no installation or electrical connection required
• FUNCTIONAL - for incandescent lamps, high-voltage halogen lamps (30-200W), and dimmable LEDs 3-24W
• TECHNICAL SPECIFICATIONS: 230 V~; 50 Hz
• SAFE - with increased touch protection in the socket

Technical specifications:

• Mounting type: Intermediate plug
• IP protection class: IP20
• Material: Plastic
• Material quality: Polycarbonate (PC)
• Design: Protective contact
• Rated current: 16.000 mA
• Operating mode: Rotary knob
• Rated voltage: 230 V
• Number of protective contact sockets: 1
• Frequency: 50 Hz
• Switching capacity resistive load (incandescent lamp / high-voltage halogen lamp): 30 - 200 W
• LED switching capacity: 3 - 24 W
• Protection class: I
• With protective contact plug for BE/DE/NL/RU (Type F): Yes
• Ambient temperature (operation): 0°C – 35°C
• Ambient temperature (storage): 0°C - 25°C
• Application area: indoor
• Color: White
• Dimensions (LxWxH): 107 x 55 x 76 mm
• Net weight: 104 g
• Volume in cm³: 447 cm³
• USB: Type of current / voltage type: DC
