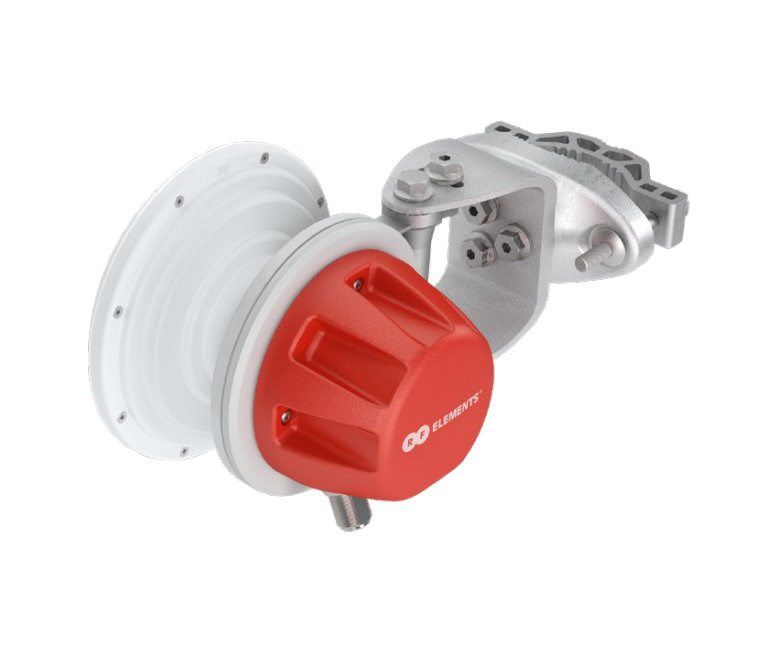

RF Elements HG3-CC-S70 network antenna Horn antenna N-type 11.5 dBi

Features
Product colour: White, Red
Antenna type: Horn antenna
Antenna connector type: N-type
Wind load: 22
Mounting: Pole
Downtilt: 25°
Front to back ratio: 30 dB
Connector gender: Female
International Protection (IP) code: IP55
Housing material: Aluminium, Zinc, Polypropylene (PP), Stainless steel
Survival wind speed: 160 km/h
Voltage Standing Wave Ratio (VSWR): 1.6/1.9
Polarization: Dual polarization
Purpose: Outdoor
Mounting pipe: 30 - 90 mm
Ultraviolet (UV) resistant: Yes

Operational conditions
Operating temperature (T-T): -30 - 55 °C

Weight & dimensions
Weight: 1.8 kg
Depth: 162 mm
Width: 312 mm
Height: 152 mm

Performance
Frequency band: 5.18 - 6.4 GHz
Horizontal beam width: 70°
Impedance: 50 Ω
Antenna gain level (max): 11.5 dBi
Vertical beam width: 70°

Packaging data
Package weight: 2.6 kg
Package depth: 239 mm
Package width: 305 mm
Package height: 183 mm

Packaging content
Quantity per pack: 1 pc(s)

Logistics data
Products per master (outer) case: 10 pc(s)
Master (outer) case gross weight: 27.4 kg
Master (outer) case length: 510 mm
Master (outer) case width: 940 mm
Master (outer) case height: 335 mm
