Design
Radiator material: Aluminum
Fan connector: 4-pin
LED connector type: 4-pin
Illumination LED: Yes
Illumination colour: Multi
Product colour: White
Fan controller: Yes
Number of fans: 3 fan(s)
Water block material: Copper
Base plate material: Copper
Power
Rated current: 0.21 A
Fan current: 0.21 A
Pump voltage: 42 V
Fan voltage: 12 V
Rated voltage: 12 V
LED power consumption (fan): 2.7 W
LED power consumption (pump): 4 W
Weight & dimensions
Tube length: 40 cm
Weight: 1.86 kg
Radiator height: 2.75 cm
Radiator depth: 12.1 cm
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Radiator width: 39.2 cm
Tube diameter: 7.15 cm
Performance
Maximum air pressure: 2.9 mmH2O
Supported processor sockets: LGA 2066, Socket AM4, LGA 2011 (Socket R), Socket AM3+, LGA 1200 (Socket H5), Socket FM2, Socket FM1, LGA 1151 (Socket H4), LGA 2011-v3 (Socket R), Socket AM2+, LGA 1150 (Socket H3), Socket AM5, LGA 1156 (Socket H), LGA 1700, Socket TRX40, LGA 1155 (Socket H2), Socket AM2, Socket TR4
Noise level (low speed): 35 dB

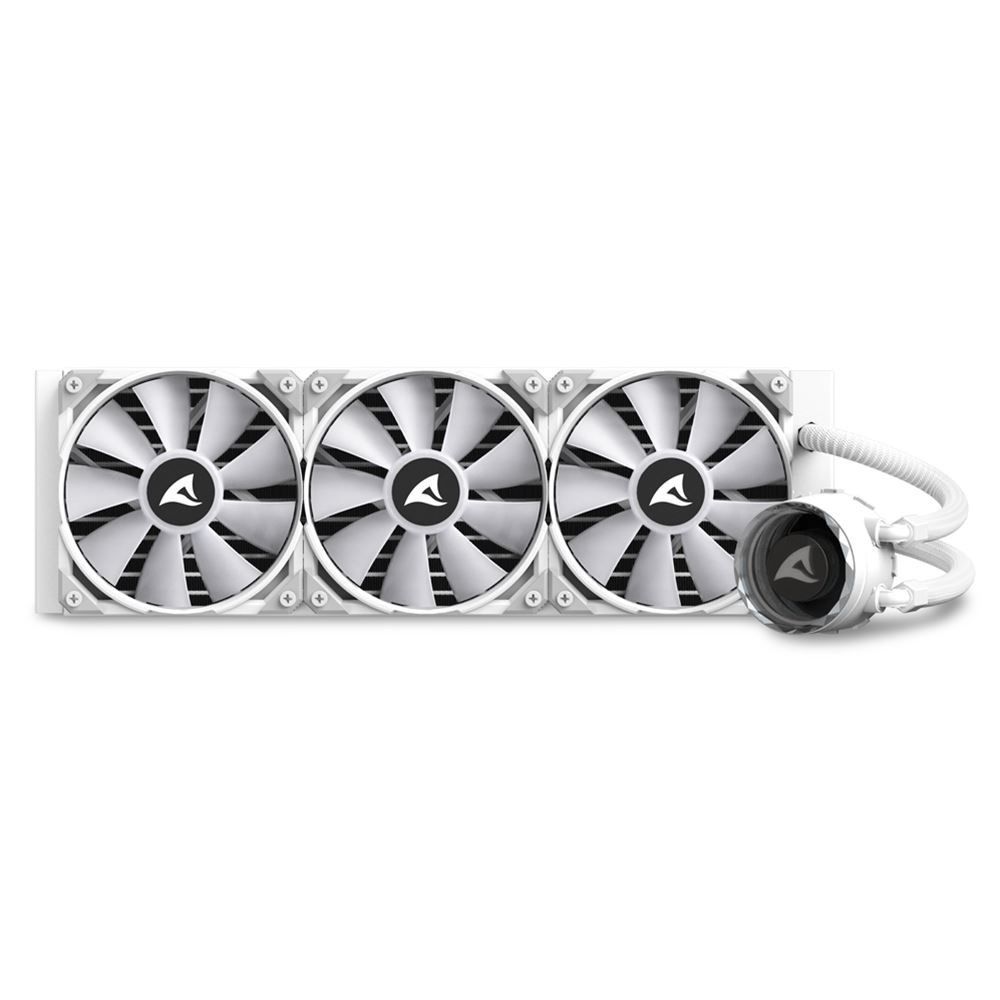

Type: All-in-one liquid cooler
Rotational speed (min): 600 RPM
Airflow: 131.93 m³/h
Pump motor speed (min): 1600 RPM
Compatible processor series: Intel® Core™ i5, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9
Quantity per pack: 1 pc(s)
Rotational speed (max): 2000 RPM
Suitable location: Processor
Fan diameter: 12 cm
Pump motor speed (max): 3200 RPM
Packaging content
Package type: Box
Mounting kit: Yes
Screws included: Yes
Thermal pad included: Yes
