Technical details
Compliance certificates: VCCI, Federal Communications Commission (FCC), RoHS, CE, BSMI, UKCA, RCM
Processor
Processor threads: 4
Processor model: N100
Processor cache: 6 MB
Processor cores: 4
Built-in processor: Yes
Processor manufacturer: Intel
Processor boost frequency: 3.4 GHz
Graphics
On-board graphics card: Yes
Graphics card family: Intel
On-board graphics card model: Intel® UHD Graphics
Memory
Number of memory slots: 1
Maximum internal memory: 16 GB
Memory slots type: SO-DIMM
Memory voltage: 1.2 V
Supported memory clock speeds: 3200 MHz
Memory channels: Single-channel
Non-ECC: Yes
Supported memory types: DDR4-SDRAM
ECC: No
Design
Housing material: Plastic
Cable lock slot: Yes

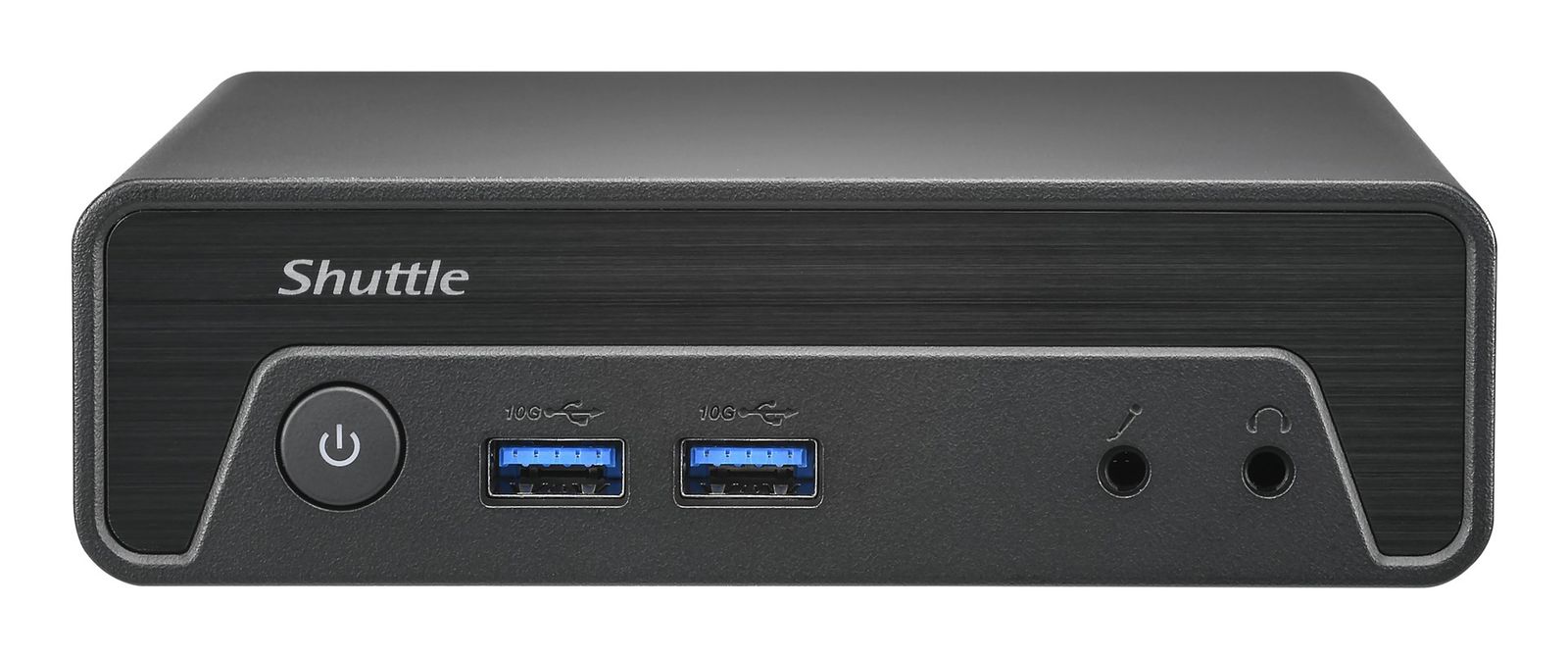

Product type: Mini PC barebone
Chassis type: 0.6L sized PC
LED indicators: Yes
Cooling type: Passive
VESA mounting: Yes
Cable lock slot type: Kensington
Panel mounting interface: 75 x 75,100 x 100 mm
Product colour: Black
Power
Power supply type: External AC adapter
AC input frequency: 50/60 Hz
AC adapter output current: 3.42 A
AC input voltage: 100 - 240 V
Power supply: 65 W
Number of power supply units: 1
AC adapter output voltage: 19 V
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
Depth: 115 mm
Width: 135 mm
Weight: 600 g
Height: 39 mm
Package weight: 1.5 kg
Network
Ethernet LAN: Yes
Wi-Fi: No
Performance
BIOS type: EFI AMI
Trusted Platform Module (TPM) version: 2.0
Number of processors supported: 1
Trusted Platform Module (TPM): Yes
Motherboard chipset: Intel SoC
Audio chip: Senary SN6141
Packaging content
Quick start guide: Yes
Power cord included: Yes
Drivers included: Yes
AC adapter included: Yes
Software
Windows operating systems supported: Windows 11
Linux operating systems supported: Yes
Audio
Built-in speaker(s): No
Storage
Supported storage drive types: SSD
Card reader integrated: No
Storage drive sizes supported: M.2
Storage drive interface: PCI Express, Serial ATA
SSD form factor: M.2
Ports & interfaces
Microphone in: Yes
DC-in jack: Yes
Headphone outputs: 1
HDMI version: 2.0
DisplayPort version: 1.4
DisplayPorts quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
Logistics data
Harmonized System (HS) code: 84733080
Sustainability
Sustainability certificates: ENERGY STAR, ErP
