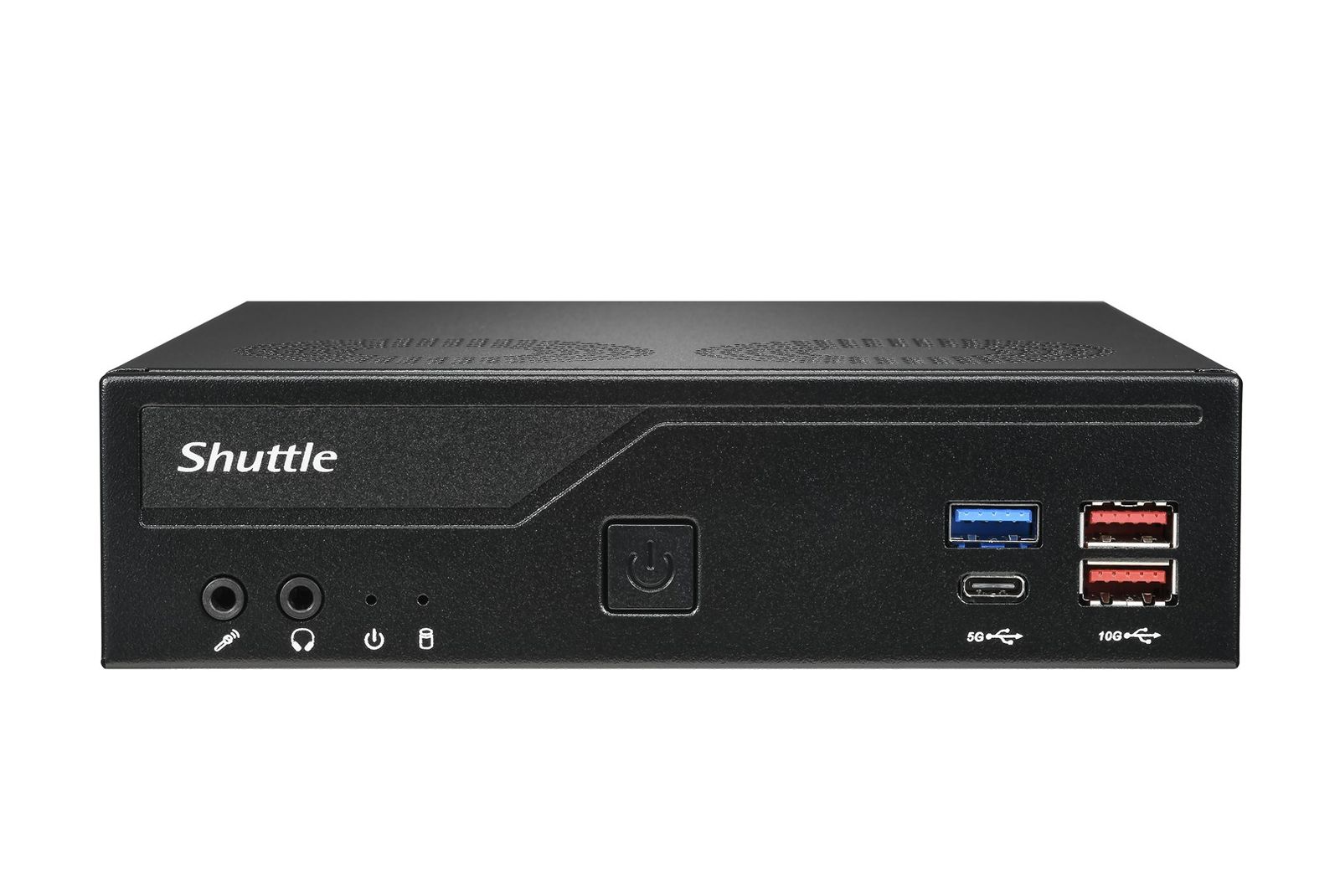

Shuttle Slim PC DH770 , S1700, 2x HDMI, 2x DP , 2x 2.5G LAN, 2x COM, 8x USB, 1x 2.5, 2x M.2, 24 /7 permanent operation, incl. VESA

Technical details
Compliance certificates: RoHS, CE, BSMI, RCM, Federal Communications Commission (FCC), ETL, VCCI, CB

Processor
Built-in processor: No

Graphics
On-board graphics card: No

Memory
Internal memory installed: No
Non-ECC: Yes
Maximum internal memory: 64 GB
Supported memory clock speeds: 5600
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
Memory slots type: SO-DIMM
Memory channels: Dual-channel
Memory voltage: 1.1 V
ECC: No

Design
Cable lock slot type: Kensington
Cable lock slot: Yes
Cooling type: Active
LED indicators: Power, HDD
Product colour: Black
Chassis type: 1.35L sized PC
Product type: Mini PC barebone
VESA mounting: Yes
Housing material: Metal
Panel mounting interface: 100 x 75
On/off switch: Yes

Power
AC input voltage: 100 - 240 V
AC adapter output current: 6.32 A
AC input frequency: 50/60 Hz
AC adapter output voltage: 19 V
Number of power supply units: 1
Power supply: 120 W
Power supply type: External AC adapter

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 50 °C

Weight & dimensions
Package weight: 2.1 kg
Weight: 1.3 kg
Depth: 165 mm
Height: 43 mm
Width: 190 mm

Network
LAN controller: Intel I226-LM
Ethernet LAN: Yes
Wi-Fi: No

Performance
Motherboard chipset: Intel H770
Number of processors supported: 1
BIOS type: UEFI AMI
Audio chip: Realtek ALC888S
Trusted Platform Module (TPM): Yes
Processor socket: LGA 1700
Trusted Platform Module (TPM) version: 2.0
Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3

Packaging content
AC adapter included: Yes
Power cord included: Yes
Drivers included: Yes

Audio
Built-in speaker(s): No

Storage
Supported storage drive types: HDD & SSD
Storage drive sizes supported: M.2, 2.5
Storage drives installed: No
NVMe: Yes
Storage drive interface: PCI Express, Serial ATA III

Ports & interfaces
Combo headphone/mic port: Yes
DC-in jack: Yes
DisplayPorts quantity: 2
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 2
HDMI version: 2.0b
Serial ports quantity: 2
Microphone in: Yes
HDMI ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Other features
Country of origin: China

Logistics data
Harmonized System (HS) code: 84733080

Sustainability
Sustainability certificates: ENERGY STAR, ErP
