Technical details
Compliance certificates: RoHS, CE, Federal Communications Commission (FCC), BSMI, VCCI, ETL, CB, RCM
Processor
Built-in processor: No
Graphics
On-board graphics card: Yes
Memory
Supported memory types: DDR5-SDRAM
Memory slots type: SO-DIMM
Number of memory slots: 2
Memory channels: Dual-channel
Supported memory clock speeds: 5600
Maximum internal memory: 96 GB
Non-ECC: Yes
ECC: No
Memory voltage: 1.1 V
Design
LED indicators: Power, HDD
Housing material: Metal
Cable lock slot: Yes
Cooling type: Active
VESA mounting: Yes

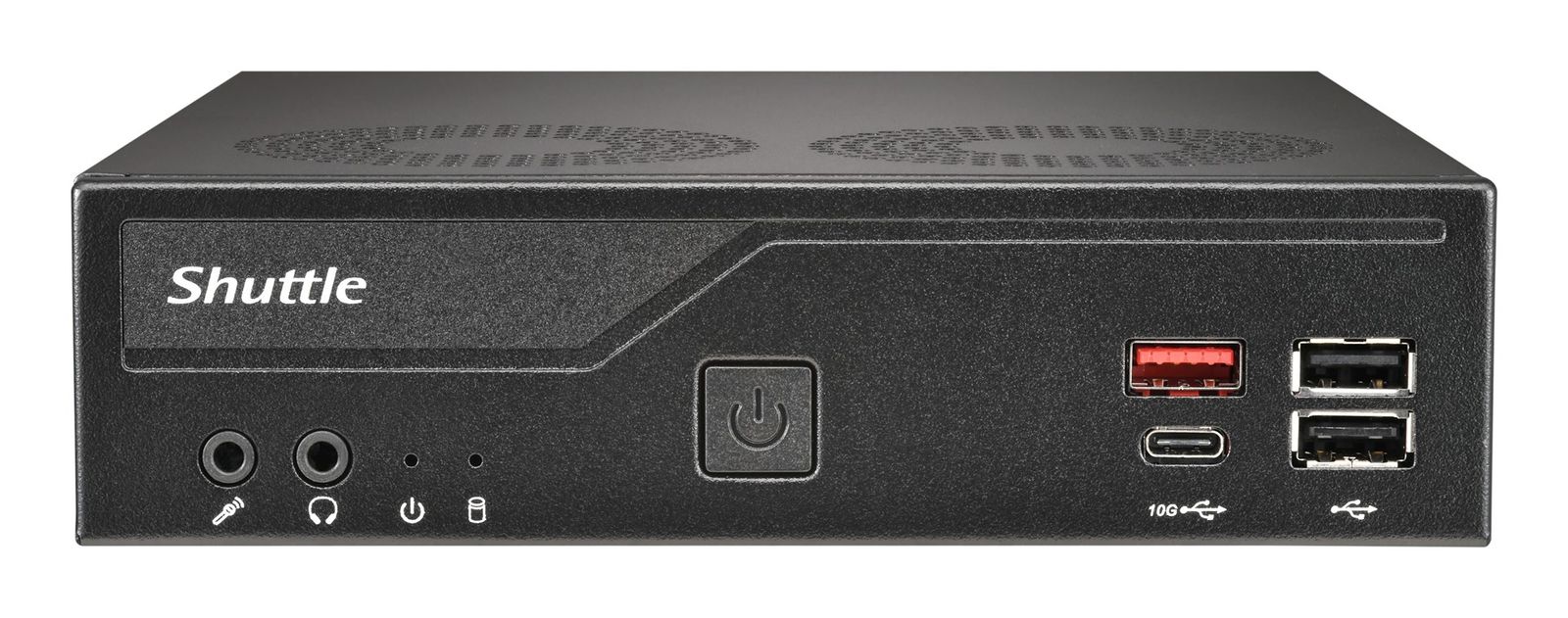

Product type: Mini PC barebone
Cable lock slot type: Kensington
Chassis type: 1.35L sized PC
Product colour: Black
Power
AC adapter output current: 6.32 A
AC input voltage: 100 - 240 V
Power supply type: External AC adapter
Power supply: 120 W
AC input frequency: 50/60 Hz
Number of power supply units: 1
AC adapter output voltage: 19 V
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
Depth: 190 mm
Package weight: 2.1 kg
Height: 43 mm
Weight: 1.3 kg
Width: 165 mm
Network
LAN controller: Intel® I219, Intel I226
Ethernet LAN: Yes
Wi-Fi: No
Performance
Processor socket: LGA 1851 (Socket V1)
Number of processors supported: 1
BIOS type: EFI AMI
Audio output channels: 2.0 channels
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
Audio chip: Realtek ALC888S
Packaging content
Drivers included: Yes
Quick start guide: Yes
Power cord included: Yes
AC adapter included: Yes
Software
Windows operating systems supported: Windows 11
Linux operating systems supported: Yes
Audio
Built-in speaker(s): No
Storage
Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5
NVMe: Yes
Storage drive interface: M.2, PCI Express, Serial ATA
Number of storage drives supported: 2
SSD form factor: M.2
Ports & interfaces
USB 2.0 ports quantity: 4
Microphone in: Yes
DisplayPort version: 1.4a
Ethernet LAN (RJ-45) ports: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
DisplayPorts quantity: 1
Headphone outputs: 1
HDMI version: 2.1
DC-in jack: Yes
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB4 Gen 2x2 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Serial ports quantity: 2
Logistics data
Harmonized System (HS) code: 84733080
Sustainability
Sustainability certificates: ENERGY STAR, ErP
