Technical details
Compliance certificates: RCM, BSMI, Federal Communications Commission (FCC), VCCI, RoHS, CE, UKCA
Processor
Processor boost frequency: 3.4 GHz
Thermal Design Power (TDP): 6 W
ECC supported by processor: No
Processor threads: 4
Processor cores: 4
Built-in processor: Yes
Processor model: N100
Processor cache: 6 MB
Processor manufacturer: Intel
Graphics
Discrete graphics card model: Not available
Maximum resolution: 4096 x 2160 pixels
Graphics card family: Intel
On-board graphics card: Yes
Number of displays supported: 3
On-board graphics card model: Intel® UHD Graphics
Memory
Maximum internal memory: 16 GB
Supported memory clock speeds: 4800
Non-ECC: Yes
Internal memory installed: No
Memory voltage: 1.1 V
Memory channels: Single-channel
Supported memory types: DDR5-SDRAM
Memory slots type: SO-DIMM
Number of memory slots: 1
ECC: No
Design
Product colour: Black
Cable lock slot: Yes
LED indicators: Power, HDD
Panel mounting interface: 100 x 75

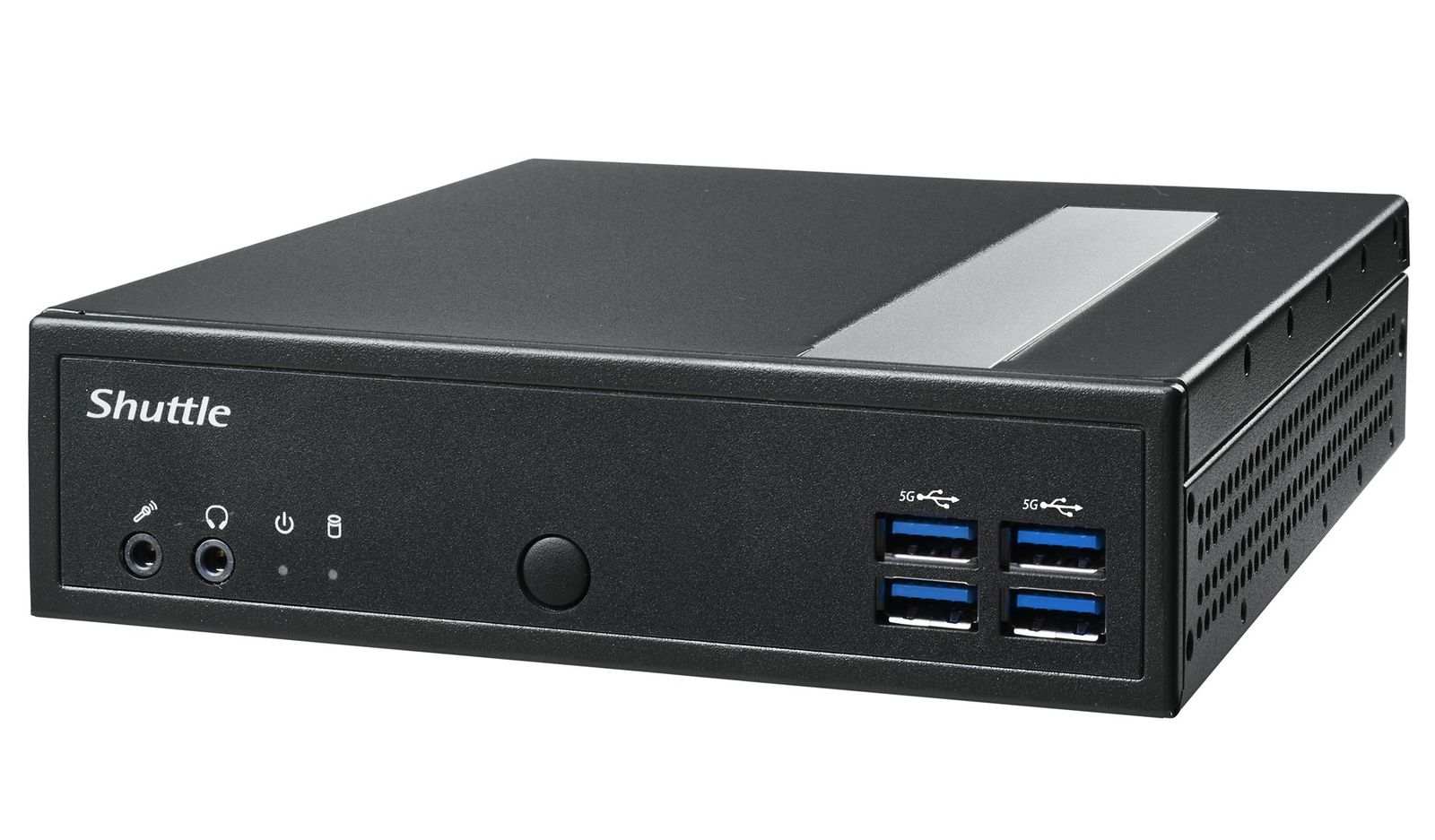

Product type: Mini PC barebone
Cable lock slot type: Kensington
Housing material: Steel
Chassis type: 1.35L sized PC
Cooling type: Passive
VESA mounting: Yes
On/off switch: Yes
Power
AC adapter output voltage: 19 V
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
AC adapter output current: 3.42 A
Number of power supply units: 1
Power supply type: External AC adapter
Power supply: 65 W
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
Weight: 800 g
Depth: 190 mm
Package weight: 2.1 kg
Height: 43 mm
Width: 165 mm
Network
LAN controller: Intel I226-LM
Ethernet LAN: Yes
Wi-Fi: No
Performance
Audio chip: Realtek ALC888S
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
BIOS type: UEFI AMI
Number of processors supported: 1
Packaging content
Quick start guide: Yes
AC adapter included: Yes
Drivers included: Yes
Power cord included: Yes
Software
Windows operating systems supported: Windows 10, Windows 11 x64
Linux operating systems supported: Yes
Operating system installed: No
Audio
Built-in speaker(s): No
Storage
Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5, M.2
Storage drives installed: No
Card reader integrated: No
NVMe: Yes
Number of storage drives supported: 2
Storage drive interface: PCI Express, Serial ATA III
Ports & interfaces
DisplayPort version: 1.4a
DC-in jack: Yes
DisplayPorts quantity: 1
HDMI version: 2.0b
Serial ports quantity: 2
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
Microphone in: Yes
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 8
Logistics data
Harmonized System (HS) code: 84733080
Safety warning
Warnings: Avoid contact with liquids inside the unit., Do not open the appliance without adequate protection., Return the used product to an electro-waste collection point.
Hazard pictogram(s): GHS09: Environmental hazard, GHS07: Harmful, GHS06: Toxic
Sustainability
Sustainability certificates: ENERGY STAR, ErP
Sustainability compliance: Yes
