Technical details
Compliance certificates: BSMI, VCCI, Federal Communications Commission (FCC), CB, cTUVus, RoHS, CE, RCM
Processor
ECC supported by processor: No
Processor cores: 5
Processor model: 7305
Performance cores: 1
Processor family: Intel® Celeron®
Processor threads: 5
Processor manufacturer: Intel
Efficient cores: 4
Built-in processor: Yes
Graphics
On-board graphics card model: Intel® UHD Graphics
Graphics card family: Intel
On-board graphics card: Yes
Memory
Supported memory clock speeds: 5200
Maximum internal memory: 64 GB
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: SO-DIMM
Number of memory slots: 2
Memory voltage: 1.1 V
Design
LED indicators: HDD, Power
Cable lock slot type: Kensington
Product colour: Black
Cooling type: Passive
VESA mounting: Yes
On/off switch: Yes
Chassis type: 1.3L sized PC
Cable lock slot: Yes
Panel mounting interface: 75 x 75,100 x 100 mm

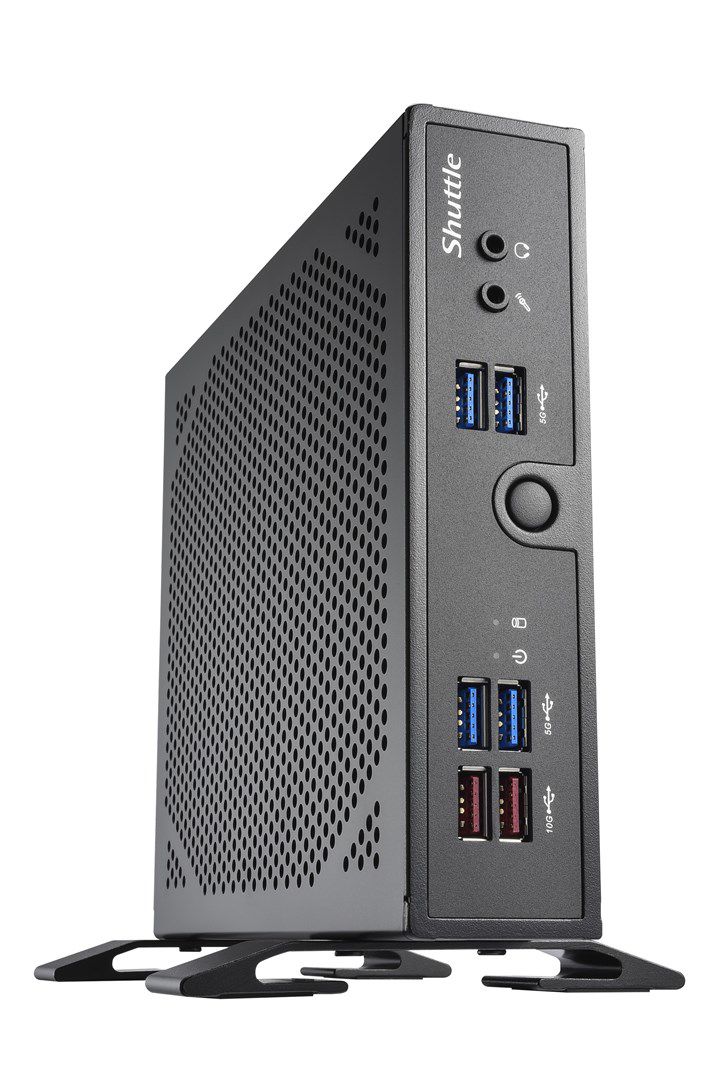

Product type: Mini PC barebone
Housing material: Steel
Power
AC input frequency: 50/60 Hz
AC adapter output current: 1.6 A
AC input voltage: 100 - 240 V
AC adapter output voltage: 19 V
Power supply: 90 W
Power supply type: External AC adapter
Number of power supply units: 1
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
Package weight: 2.3 kg
Weight: 1.6 kg
Height: 39.5 mm
Depth: 165 mm
Width: 200 mm
Network
LAN controller: Intel® I219, Intel I226-LM
Wi-Fi: No
Ethernet LAN: Yes
Performance
Number of processors supported: 1
Audio chip: Realtek ALC888S
Trusted Platform Module (TPM): Yes
BIOS type: UEFI AMI
Trusted Platform Module (TPM) version: 2.0
Packaging content
AC adapter included: Yes
Quick start guide: Yes
Power cord included: Yes
Software
Windows operating systems supported: Windows 11, Windows 10
Operating system installed: No
Linux operating systems supported: Yes
Audio
Built-in speaker(s): No
Storage
Supported storage drive types: HDD & SSD
Number of storage drives supported: 3
Storage drive sizes supported: 2.5, M.2
NVMe: Yes
Storage drive interface: PCI Express, Serial ATA III
Ports & interfaces
DisplayPort version: 1.4
DC-in jack: Yes
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
DisplayPorts quantity: 1
Headphone outputs: 1
HDMI version: 2.0b
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Microphone in: Yes
HDMI ports quantity: 1
Serial ports quantity: 1
Logistics data
Harmonized System (HS) code: 84733080
Sustainability
Sustainability certificates: ENERGY STAR, ErP
Sustainability compliance: Yes
