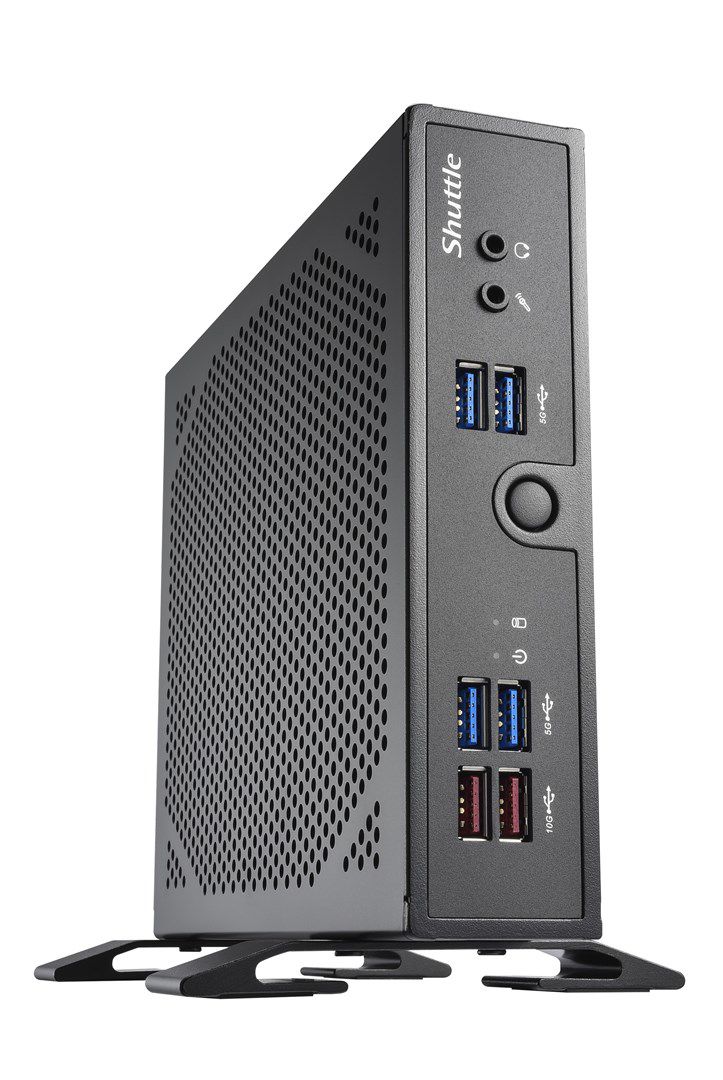

Shuttle XPC slim Barebone DS50U3, Intel i3-1315U, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24 /7 permanent operation

Technical details
Compliance certificates: BSMI, RCM, cTUVus, VCCI, Federal Communications Commission (FCC), RoHS, CE, CB

Processor
Processor threads: 8
Efficient cores: 4
Processor family: Intel® Core™ i3
Processor cache: 10 MB
Processor model: i3-1315U
Processor boost frequency: 4.5 GHz
Processor manufacturer: Intel
Performance cores: 2
Processor cores: 6
ECC supported by processor: No
Built-in processor: Yes
Processor generation: Intel Core i3-13xxx
Performance-core boost frequency: 4.5 GHz
Efficient-core boost frequency: 3.3 GHz

Graphics
On-board graphics card: Yes
On-board graphics card model: Intel® UHD Graphics
Graphics card family: Intel

Memory
Supported memory clock speeds: 5200
Maximum internal memory: 64 GB
Memory voltage: 1.1 V
Number of memory slots: 2
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: SO-DIMM
Internal memory installed: No

Design
Product colour: Black
Cable lock slot type: Kensington
Housing material: Steel
Cooling type: Passive
VESA mounting: Yes
On/off switch: Yes
LED indicators: Power, HDD
Panel mounting interface: 75 x 75,100 x 100 mm
Chassis type: 1.3L sized PC
Product type: Mini PC barebone
Cable lock slot: Yes

Power
AC input frequency: 50/60 Hz
Power supply type: External AC adapter
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC adapter output current: 1.6 A
AC adapter output voltage: 19 V
Power supply: 90 W

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C

Weight & dimensions
Weight: 1.6 kg
Width: 200 mm
Depth: 165 mm
Package weight: 2.3 kg
Height: 39.5 mm

Network
LAN controller: Intel® I219, Intel I226-LM
Wi-Fi: No
Ethernet LAN: Yes

Performance
Trusted Platform Module (TPM): Yes
BIOS type: UEFI AMI
Trusted Platform Module (TPM) version: 2.0
Audio chip: Realtek ALC888S
Number of processors supported: 1

Packaging content
Quick start guide: Yes
AC adapter included: Yes
Power cord included: Yes

Software
Operating system installed: No
Windows operating systems supported: Windows 11, Windows 10
Linux operating systems supported: Yes

Audio
Built-in speaker(s): No

Storage
Supported storage drive types: HDD & SSD
Number of storage drives supported: 3
Storage drive sizes supported: 2.5, M.2
Storage drives installed: No
NVMe: Yes
Storage drive interface: PCI Express, Serial ATA III

Ports & interfaces
DisplayPorts quantity: 1
DC-in jack: Yes
Microphone in: Yes
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Serial ports quantity: 1
Headphone outputs: 1
VGA (D-Sub) ports quantity: 1
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
DisplayPort version: 1.4
HDMI version: 2.0b
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Logistics data
Harmonized System (HS) code: 84733080

Sustainability
Sustainability certificates: ENERGY STAR, ErP
Sustainability compliance: Yes
