Technical details
Compliance certificates: Federal Communications Commission (FCC), BSMI, VCCI, RCM, RoHS, CE, cTUVus, CB
Processor
Thermal Design Power (TDP): 15 W
Efficient cores: 8
Processor generation: 13th gen Intel® Core™ i7
Performance-core boost frequency: 5 GHz
Built-in processor: Yes
Efficient-core boost frequency: 3.7 GHz
Processor cache: 12 MB
Processor manufacturer: Intel
Performance cores: 2
Processor threads: 12
Processor cores: 10
Processor boost frequency: 5 GHz
ECC supported by processor: No
Processor family: Intel® Core™ i7
Processor model: i7-1355U
Graphics
Graphics card family: Intel
On-board graphics card: Yes
On-board graphics card model: Intel® UHD Graphics
Memory
Supported memory types: DDR5-SDRAM
Memory slots type: SO-DIMM
Memory voltage: 1.1 V
Memory channels: Dual-channel
Number of memory slots: 2
Supported memory clock speeds: 5200
Maximum internal memory: 64 GB
Design
VESA mounting: Yes

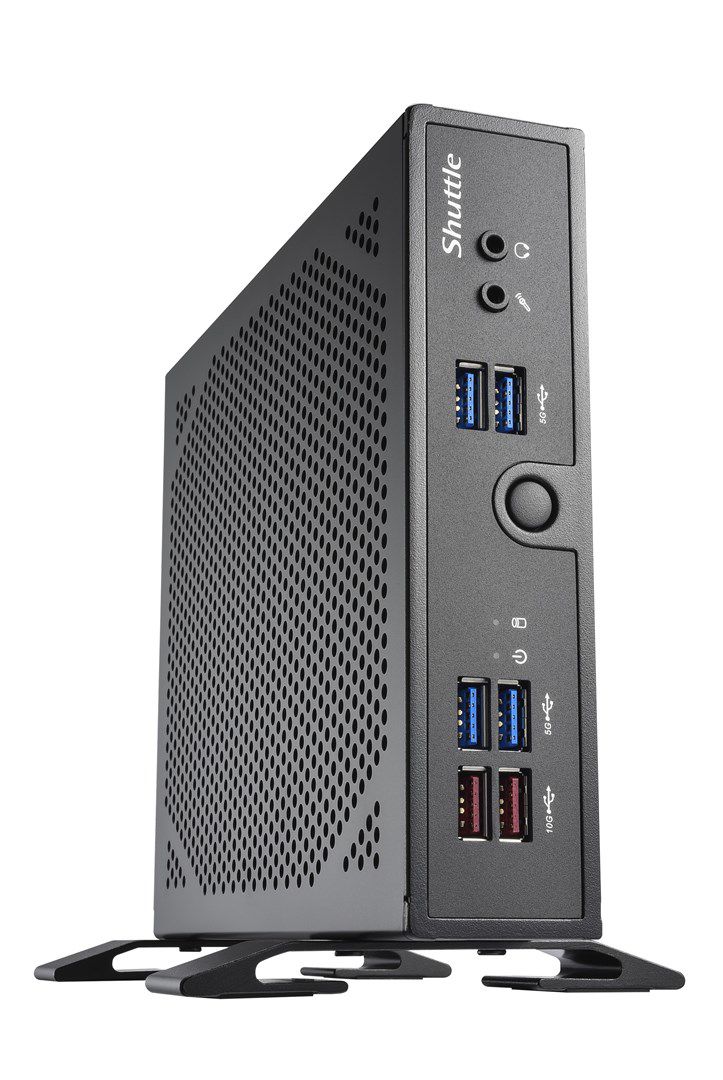

Product type: Mini PC barebone
On/off switch: Yes
Panel mounting interface: 75 x 75,100 x 100 mm
Chassis type: 1.3L sized PC
Housing material: Steel
Cable lock slot: Yes
Product colour: Black
Cable lock slot type: Kensington
Cooling type: Passive
LED indicators: HDD, Power
Power
Number of power supply units: 1
Power supply: 90 W
Power supply type: External AC adapter
AC input frequency: 50/60 Hz
AC adapter output voltage: 19 V
AC input voltage: 100 - 240 V
AC adapter output current: 1.6 A
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
Depth: 165 mm
Height: 39.5 mm
Width: 200 mm
Weight: 1.6 kg
Package weight: 2.3 kg
Network
Wi-Fi: No
Ethernet LAN: Yes
LAN controller: Intel® I219, Intel I226-LM
Performance
Trusted Platform Module (TPM) version: 2.0
BIOS type: UEFI AMI
Trusted Platform Module (TPM): Yes
Audio chip: Realtek ALC888S
Number of processors supported: 1
Packaging content
Power cord included: Yes
Quick start guide: Yes
AC adapter included: Yes
Software
Windows operating systems supported: Windows 11, Windows 10
Operating system installed: No
Linux operating systems supported: Yes
Audio
Built-in speaker(s): No
Storage
Storage drive sizes supported: 2.5, M.2
NVMe: Yes
Storage drive interface: PCI Express, Serial ATA III
Number of storage drives supported: 3
Supported storage drive types: HDD & SSD
Ports & interfaces
Serial ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
Headphone outputs: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI version: 2.0b
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
DisplayPorts quantity: 1
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 2
DC-in jack: Yes
USB 2.0 ports quantity: 2
Logistics data
Harmonized System (HS) code: 84733080
Safety warning
Hazard pictogram(s): GHS09: Environmental hazard, GHS07: Harmful, GHS06: Toxic
Sustainability
Sustainability compliance: Yes
Sustainability certificates: ENERGY STAR, ErP
