Technical details
Compliance certificates: RoHS
Processor
Built-in processor: No
Graphics
On-board graphics card: Yes
Graphics card family: Intel
Memory
Non-ECC: Yes
Maximum internal memory: 64 GB
Supported memory clock speeds: 3200, 2666, 2133 MHz, 2933, 2400
ECC: No
Number of memory slots: 2
Memory slots type: SO-DIMM
Memory channels: Dual-channel
Supported memory types: DDR4-SDRAM
Memory voltage: 1.2 V
Design
Product colour: Black
Cable lock slot type: Kensington

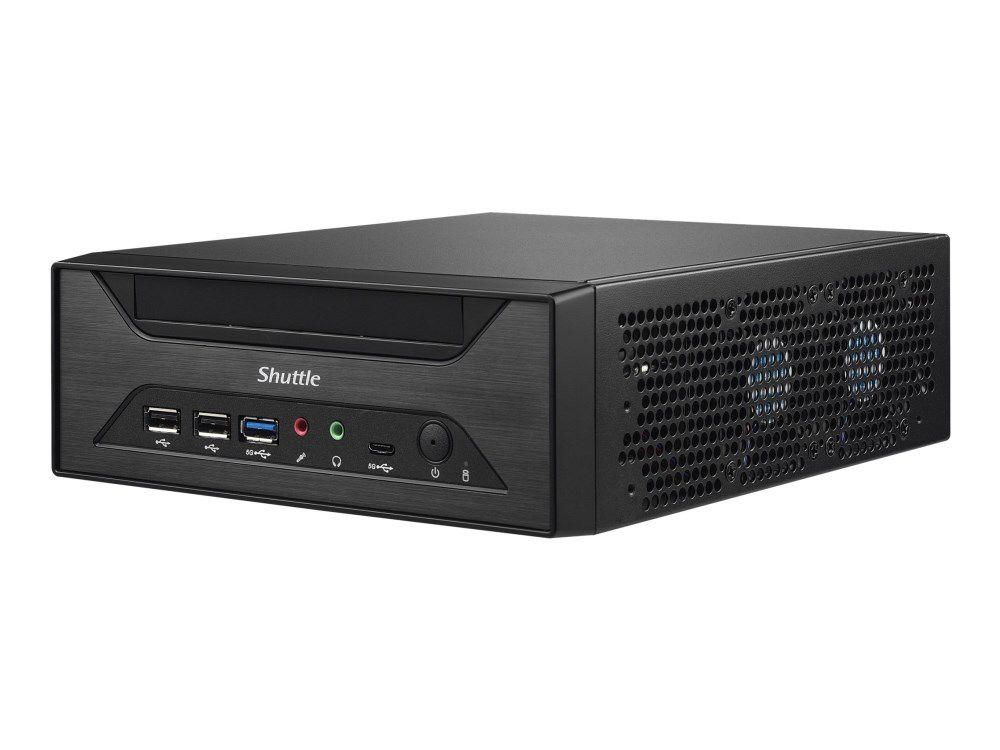

Product type: PC barebone
Cable lock slot: Yes
Chassis type: 3.5L sized PC
Cooling type: Active
LED indicators: HDD, Power
Power
AC input frequency: 50 - 60 Hz
Power supply type: External AC adapter
Power supply: 120 W
AC input voltage: 100 - 240 V
Number of power supply units: 1
AC adapter output current: 6.32 A
AC adapter output voltage: 19 V
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
Height: 72 mm
Width: 200 mm
Package weight: 3.5 kg
Weight: 2.2 kg
Depth: 238 mm
Network
Wi-Fi: No
Ethernet LAN: Yes
Performance
Trusted Platform Module (TPM): Yes
Motherboard chipset: Intel H610
Trusted Platform Module (TPM) version: 2.0
Number of processors supported: 1
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Pentium®
BIOS type: AMI
Processor socket: LGA 1700
Packaging content
Quick start guide: Yes
Drivers included: Yes
Expansion slots
Number of M.2 (M) slots: 1
Software
Windows operating systems supported: Windows 10, Windows 11
Operating system installed: No
Linux operating systems supported: Yes
Audio
Built-in speaker(s): No
Storage
Supported storage drive types: HDD & SSD
NVMe: Yes
Storage drive interface: M.2, PCI Express, Serial ATA III
Storage drive sizes supported: 2.5
Ports & interfaces
VGA (D-Sub) ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
COM ports quantity: 2
DisplayPort version: 1.4a
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Microphone in: Yes
DC-in jack: Yes
Headphone outputs: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI ports quantity: 1
USB 2.0 ports quantity: 4
DisplayPorts quantity: 1
HDMI version: 2.0b
Other features
Country of origin: China
Logistics data
Harmonized System (HS) code: 84733080
Sustainability
Sustainability certificates: ENERGY STAR, ErP
