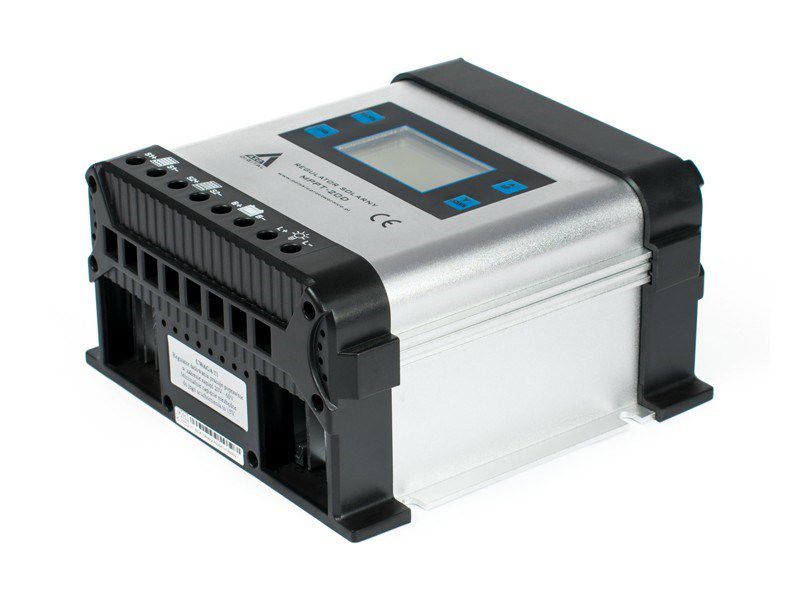

Solar MPPT charge controller AZO Digital 12 /24 - 20A LCD display

(ocijenilo: 0 korisnik/a)

Šifra: 28-FOWAZOINW0012 | Brand: AZO DIGITAL

92,30 €
  • Dostupno za narudžbu, isporuka unutar 3 do 14 radnih dana
  • Mogućnost plaćanja na rate
    Već od 2,78 €/mj. ℹ️
  • Cijena dostave za ovaj artikl je 6,00 €
U košaricu
Purpose: Photovoltaic panels
Power supply type: -

Features
Power protection features: Over voltage, Overheating, Overvoltage protection, Overcharge
Supported battery type: AGM / Gel
International Protection (IP) code: IP21
Power current type: DC
MPPT function: Yes
Product colour: White

Design
Built-in display: LCD
Conductor cross section (max): 16mm / 6AWG

Power
Input voltage: 12V: 20V-60V / 24V: 30V-90V (auto-detection)
Maximum charging current: 20 A
DC battery voltage: 12 / 24 V

Weight & dimensions
Depth: 175 mm
Width: 175 mm
Height: 95 mm
Weight: 1.47 kg

Performance
Temperature compensation: 12V: 18mV/°C / 24V: 36mV/°C
Operating temperature (T-T): -40 - 50 °C
Specific features: Internal power consumption: <1mA (standby) / 15mA (operation) / 130mA (operation with connected load)
