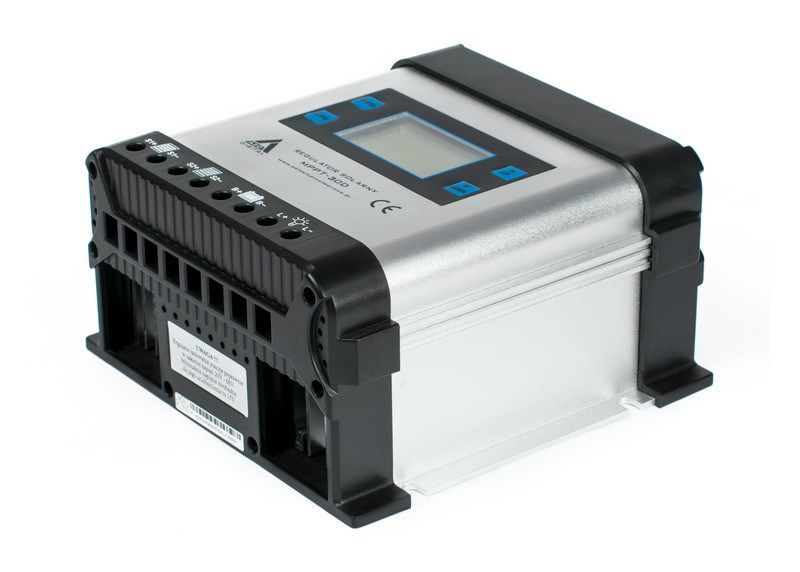

Solar MPPT charge controller AZO Digital 12 /24 - 30A LCD display

Purpose: Photovoltaic panels
Power supply type: -

Features
MPPT function: Yes
Product colour: White
Power current type: DC
Supported battery type: AGM / Gel
Power protection features: Overheating, Overvoltage protection, Over voltage, Overcharge
International Protection (IP) code: IP21

Design
Conductor cross section (max): 16mm / 6AWG
Built-in display: LCD

Power
DC battery voltage: 12 / 24 V
Maximum charging current: 30 A
Input voltage: 12V: 20V-60V / 24V: 30V-90V (auto-detection)

Weight & dimensions
Depth: 175 mm
Height: 95 mm
Weight: 1.53 kg
Width: 175 mm

Performance
Temperature compensation: 12V: 18mV/°C / 24V: 36mV/°C
Operating temperature (T-T): -25 - 55 °C
Specific features: Internal power consumption: <1mA (standby) / 15mA (operation) / 130mA (operation with connected load)
