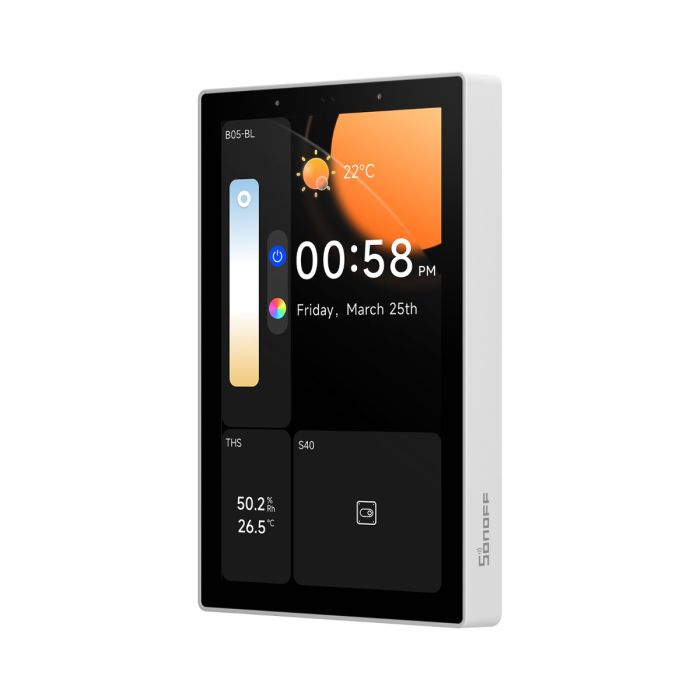

SONOFF central control unit NSPanel120PW

Large display: 12 cm (4.3-inch) touchscreen
Sonoff NSPanel120PW has a large color touchscreen that allows you to easily control devices and monitor their status.

Wi-Fi connectivity: 2.4 GHz Wi-Fi
The control unit uses a 2.4 GHz Wi-Fi connection, which allows easy connection to your home network and remote control of devices.

Smart device control
NSPanel120PW allows you to control a wide range of Sonoff smart devices and other compatible devices such as blinds, fans, refrigerators, security systems, and more.

Voice control: compatible with Amazon Alexa and Google Assistant
You can control it with your voice via Alexa or Google Assistant – simply say commands such as "Alexa, turn off the light" or "Hey Google, turn on the fan."

Automation and scripting
NSPanel120PW allows you to set up automated tasks based on time, temperature, motion, or other parameters, helping to optimize energy consumption and improve comfort.

Multiple control methods
You can control the devices via the touch screen or the eWeLink app, which gives you remote control and insight.

Compatibility with other Sonoff devices: integration with eWeLink
The panel is compatible with the eWeLink app, which allows synchronization with other Sonoff devices and the creation of a smart home network.

High-quality design: elegant appearance
The NSPanel120PW boasts a modern and minimalist design that blends easily into any space. The compact design is suitable for a variety of spaces.

Direct control via the display
The panel allows direct control of devices via the display, which shows their current status and allows quick switching on or off.

Energy saving: consumption control
Sonoff NSPanel120PW allows you to monitor your electricity consumption and optimize the operation of your devices, helping to reduce your electricity costs.

Specifications:

• Voltage range: 100–240 V AC (50/60 Hz), max.

• Power consumption: up to 5 W, 150 mA

• Display size and resolution: 4.7" capacitive touchscreen, 750 × 1334 pixels

• Wireless connectivity: Wi-Fi IEEE 802.11 b/g/n (2.4 GHz), Zigbee 3.0

• Operating humidity: 5%–90% RH, non-condensing

• Operating temperature: 0°C to 40°C

• Housing material: PC V0 + CRS + tempered glass

• Certifications: CE, FCC, ISED, RoHS

• Color: White

• Product dimensions: 122.5 × 74.5 × 39.5 mm
