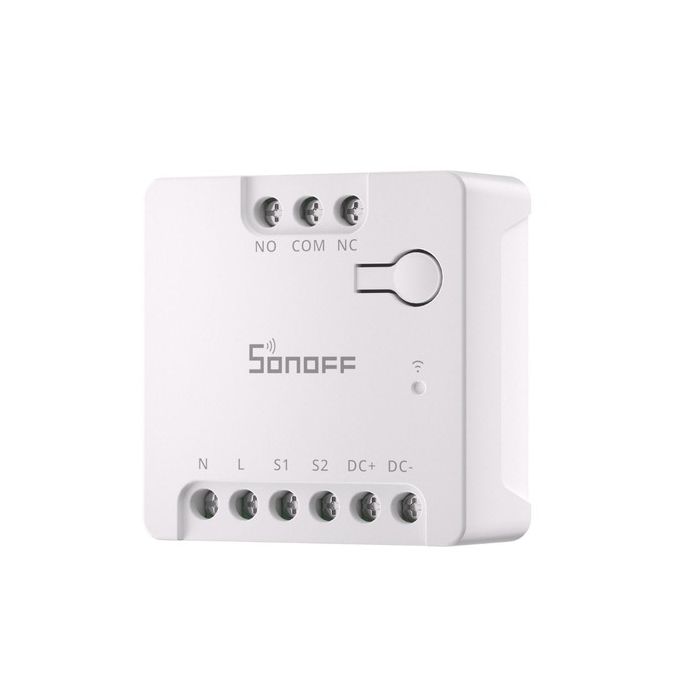

SONOFF Smart WiFi Switch Matter MINI-D

Matter compatible – cross-platform smart home integration
SONOFF MINI-D is a Matter-certified switch designed for seamless integration with various platforms such as Amazon Alexa, Google Home, Apple Home, Home Assistant, and others. It allows you to control devices from different brands within a single system.

Support for AC/DC power supply
MINI-D supports AC (100–240 V) or DC (12–48 V) power supply, allowing for flexible installation in residential, industrial, or special control environments.

Dry contact output – supports NO and NC configurations
Equipped with a dry contact with the option of normally open (NO) or normally closed (NC), enabling the control of various signal-triggered systems, such as boilers, garage doors, access controls, etc.

Optimized for low-power DC motors (up to 8 W)
Suitable for controlling low-voltage devices such as smart irrigation, motorized curtains, or door systems.

Integration with a contactor – safe control of larger loads
In conjunction with a contactor, it enables control of larger loads (e.g., industrial equipment, HVAC systems) via low-voltage control, increasing safety and efficiency.

Specifications:

• Product type: Smart Wi-Fi switch

• Electrical specification: DC 12–48 V / AC 100–240 V

• Control chip (MCU): ESP32

• Output type: Dry contact

• Wireless connection: Wi-Fi IEEE 802.11 b/g/n (2.4 GHz)

• 433 MHz RF support: No

• Compatibility: Amazon Alexa, Google Assistant, IFTTT

• DIY mode: No

• Certifications: CE, FCC, RoHS

• Quantity in box: 100 pieces

• Box dimensions: 248 × 208 × 146 mm

• Box weight: 4.44 kg
