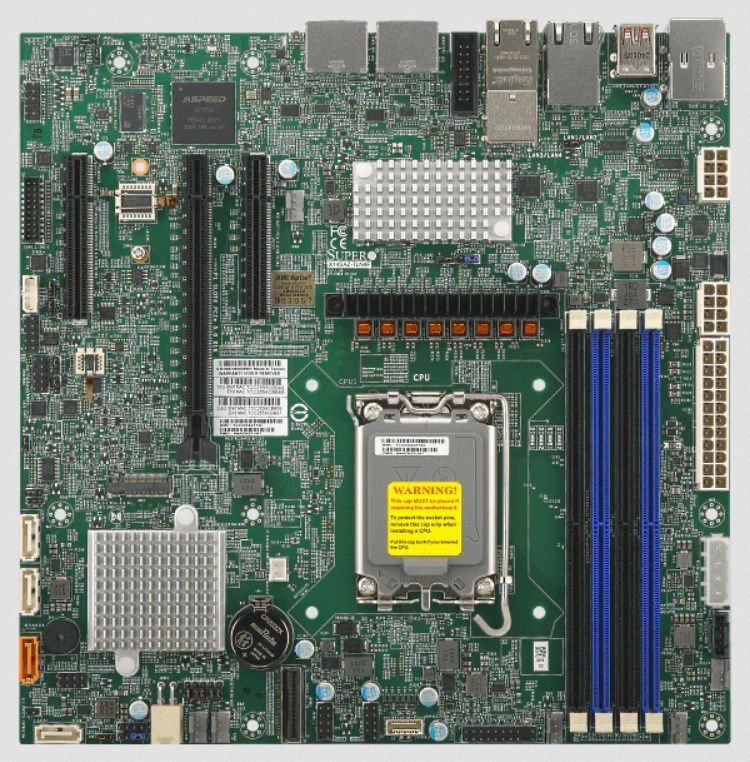

Supermicro MBD-X14SAZ-TLN4F-O motherboard Intel W880

Processor
Processor manufacturer: Intel
Compatible processor series: Intel Core Ultra (Series 2)
Processor cores: 24

Features
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Component for: Server

Memory
ECC сompatibility: ECC & Non-ECC
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Supported memory clock speeds: 5600
Memory slots type: DIMM
Maximum internal memory: 256 GB
Memory voltage: 1.1 V

Operational conditions
Storage relative humidity (H-H): 10 - 95%
Operating temperature (T-T): 0 - 60 °C
Operating relative humidity (H-H): 10 - 85%
Storage temperature (T-T): -40 - 85 °C

Weight & dimensions
Depth: 244 mm
Width: 244 mm

Network
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Intel I226-LM

Internal I/O
TPM connector: Yes
Number of SATA III connectors: 4
Serial port headers: 2

BIOS
BIOS type: UEFI AMI
System Management BIOS (SMBIOS) version: 3.7
ACPI version: 6.5

Rear panel I/O ports
DisplayPorts quantity: 2
HDMI ports quantity: 2
VGA (D-Sub) ports quantity: 1
Serial ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 2
IPMI LAN (RJ-45) port: Yes

Safety warning
Warnings: The product contains electrical components - take care during installation to avoid injury., Avoid contact with liquids and moisture to prevent damage to equipment., Adjust adequate ventilation to avoid overheating and potential damage.
