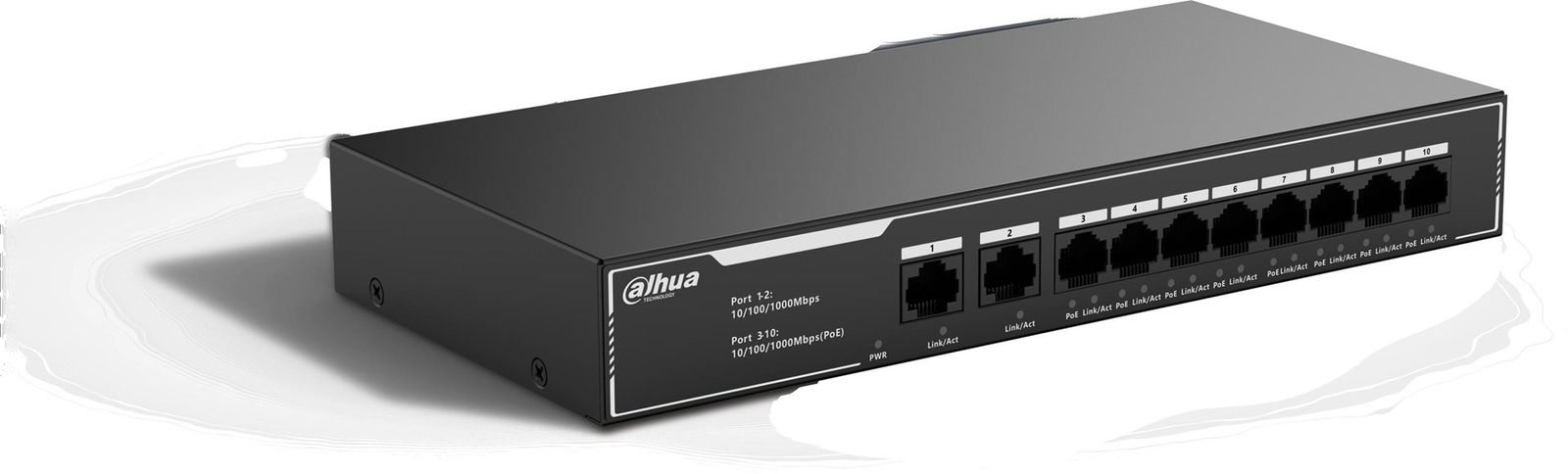

Switch Dahua SG1010LP

Design
Rack mounting: No
Product colour: Black
Housing material: Iron

Power
Input current: 1.5 A
Power consumption (max): 65 W
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power source: DC/PoE

Operational conditions
Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -10 - 55 °C

Management features
Switch layer: L2
Switch type: Unmanaged

Weight & dimensions
Width: 118 mm
Depth: 243 mm
Height: 35 mm
Weight: 800 g

Network
Networking standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af
10G support: No

Performance
Plug and Play: Yes

Packaging data
Package width: 260 mm
Package height: 70 mm
Package weight: 1.8 kg
Package depth: 300 mm

Certificates
Compliance certificates: CE

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 10
Gigabit Ethernet (copper) ports quantity: 10
Uplink ports quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Data transmission
Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
Jumbo frames: 9216
Packet buffer memory: 2 MB
Jumbo frames support: Yes
MAC address table: 2000 entries

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 8
Total Power over Ethernet (PoE) budget: 65 W

Sustainability
Sustainability compliance: Yes
