Technical details
Sustainability certificates: RoHS, CE
Audio support: Yes
Certification: CE, FCC, RoHS
Features
Product colour: Black
HDCP: Yes
Colour depth: 8 bit
Supported video modes: 1080i, 720p, 480p, 1080p
Cable types supported: Cat6, Cat7, Cat5e, Cat6a
Maximum transfer distance: 60 m

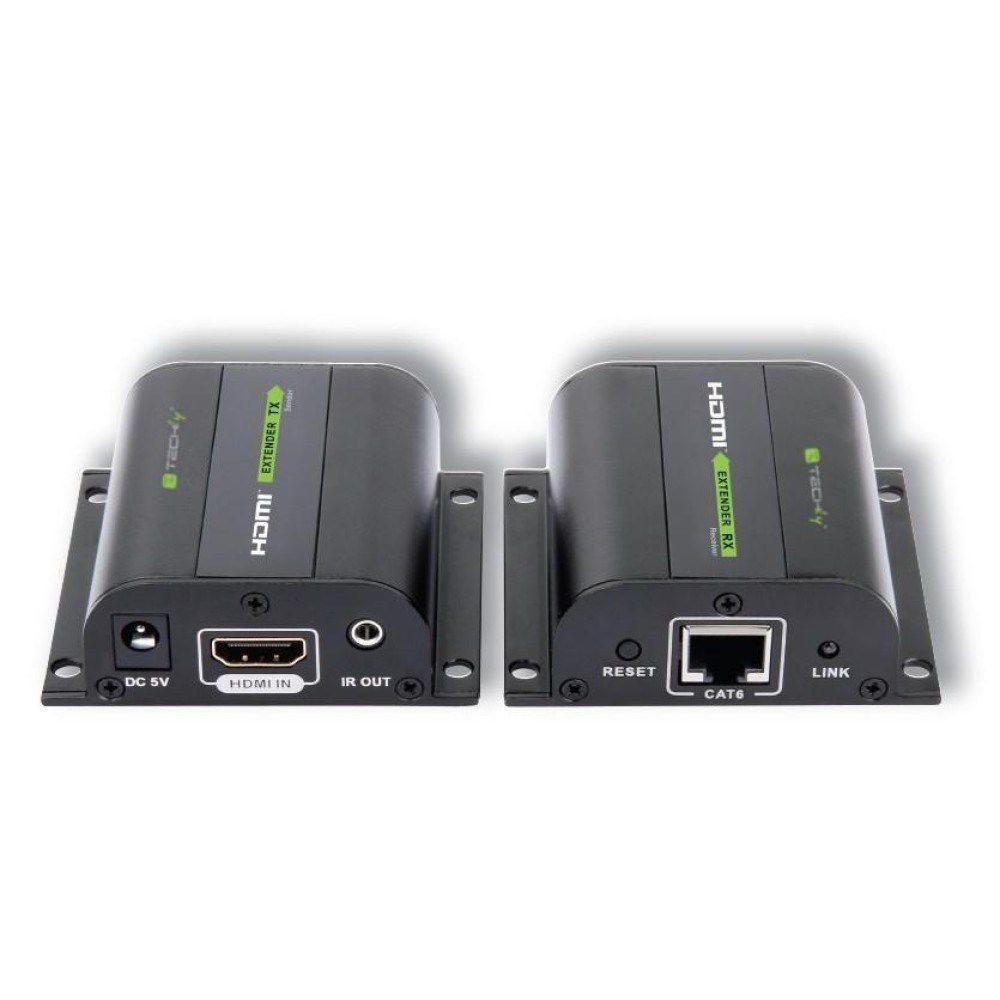

Type: AV transmitter & receiver
LED indicators: Yes
3D: Yes
Audio system: stereo
Bandwidth: 10.2 Gbit/s
Power
Power consumption (receiver) (max): 5 W
Current: 1 A
Power consumption (transmitter) (max): 5 W
Operating voltage: 5 V
Weight & dimensions
Transmitter dimensions (WxDxH): 66.6 x 71.6 x 24.8 mm
Width: 71.6 mm
Receiver dimensions (WxDxH): 66.6 x 71.6 x 24.8 mm
Height: 24.8 mm
Depth: 66.6 mm
Weight: 479 g
Dimensions (WxDxH): 71.6 x 66.6 x 24.8 mm
Packaging content
Manual: Yes
AC adapter included: Yes
Ports & interfaces
Ethernet LAN: Yes
Number of HDMI outputs: 1
RJ-45 output ports: 1
DC-in jack: Yes
RJ-45 input ports: 1
HDMI in: 1
Safety warning
Warnings: Do not open the appliance housing to avoid electric shock.
Supplier features
Vendor code: 020355
