Design
Suitable for indoor use: Yes
Product colour: Black

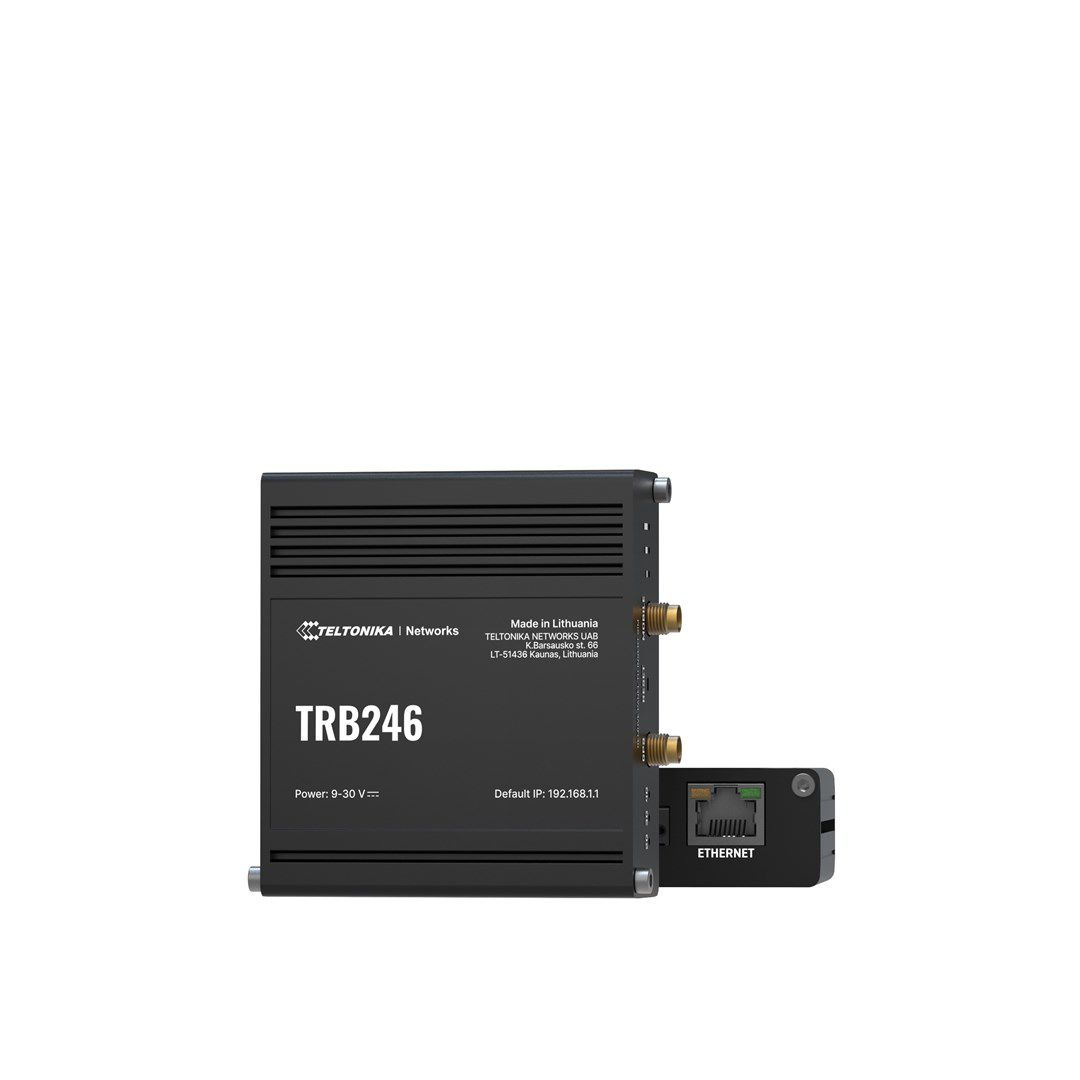

Device type: Cellular network gateway
LED indicators: Signal strength, LAN, Status, Power
Mounting: DIN-rail/Wall mounting
Market positioning: Industrial
Housing material: Aluminium
Power
Input voltage: 9 - 30 V
External power adapter: Yes
Power source type: DC
Security
DMZ support: Yes
Port forwarding: Yes
Operational conditions
Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%
Management features
Management platform: RMS
Weight & dimensions
Depth: 74.2 mm
Height: 25 mm
Weight: 165 g
Width: 83 mm
Performance
RAM type: DDR2
Processor frequency: 0.58 GHz
Antenna type: External
Antennas quantity: 2
RAM capacity: 0.128 GB
Processor manufacturer: MediaTek
Internal storage capacity: 0.016 GB
Built-in processor: Yes
GPS (satellite): Yes
Antenna connector type: SMA
Web-based management: Yes
Wireless LAN features
Wi-Fi: No
Ports & interfaces
Serial ports quantity: 1
Serial interface type: RS-232, RS-232/485
Ethernet LAN (RJ-45) ports: 1
GPS Performance
Galileo: Yes
BeiDou: Yes
Embedded GNSS: Yes
Quasi-Zenith Satellite System (QZSS): Yes
GLONASS: Yes
Mobile network
Number of SIM cards: 2
Data transfer rate (LTE) (download): 150 Mbit/s
Data transfer rate (LTE) (upload): 50 Mbit/s
SIM interface: 3 V
Short Message Service (SMS): Yes
SIM card type: MiniSIM
Data network: LTE, 4G, 3G, 2G
Safety warning
Warnings: The product may emit radio waves that may interfere with other electronic devices., Do not expose the device to water or moisture., Do not expose the device to extreme temperatures., Avoid contact with liquids as this may cause electric shock., Do not dismantle the unit yourself, there is a risk of electric shock., Do not open the appliance housing - risk of electric shock.
Ethernet LAN features
Ethernet LAN: Yes
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 10, 100
DHCP server: Yes
Ethernet LAN interface type: Fast Ethernet
Full duplex: Yes
Networking standards: IEEE 802.3az, IEEE 802.3, IEEE 802.11e, IEEE 802.3u
Serial interface
RS-485 signals: Data+, Data-, RDA-, RDB+
RS-232 signals: CTS, Rx, Tx, RTS
