Design

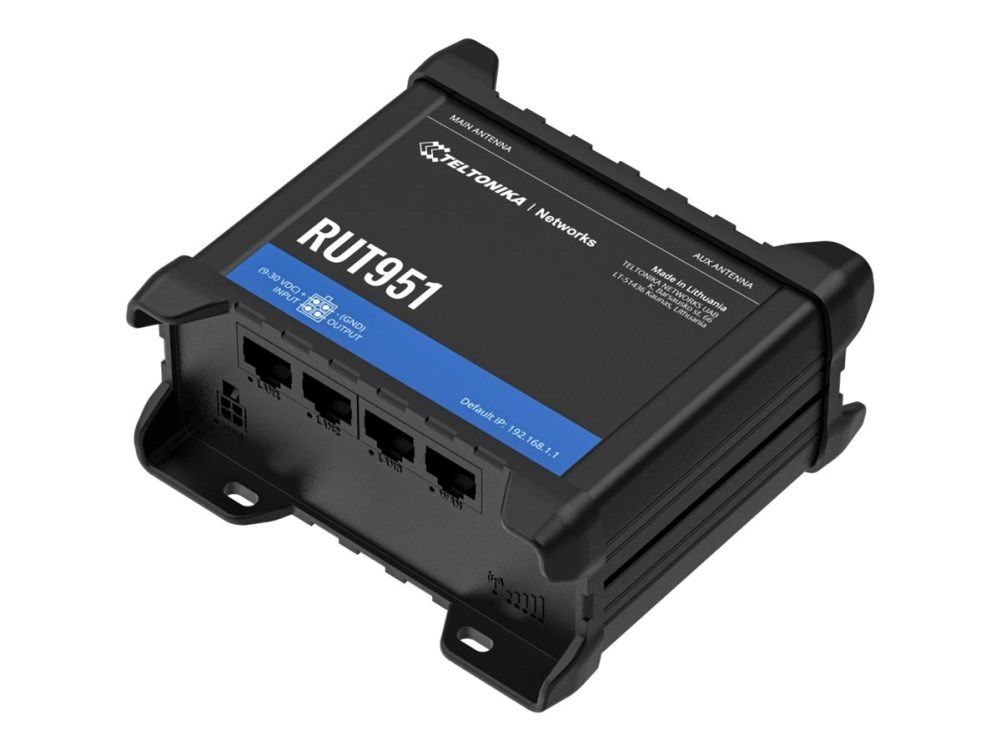

Device type: Cellular network router
LED indicators: Yes
Housing material: Aluminium, Plastic
Reset button: Yes
Mounting: DIN-rail
Market positioning: Industrial
Product colour: Black
Power
Input voltage: 9 – 57
Power source type: AC, DC, PoE
Security
Network address translation (NAT): Yes
DMZ support: Yes
Port forwarding: Yes
Firewall: Yes
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -40 - 75 °C
Weight & dimensions
Width: 110 mm
Height: 50 mm
Depth: 100 mm
Weight: 287 g
Performance
Antenna type: External
Built-in processor: Yes
Antennas quantity: 4
Web-based management: Yes
Wireless LAN features
Wi-Fi: Yes
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi band: Single-band (2.4 GHz)
Ports & interfaces
USB port: No
Ethernet LAN (RJ-45) ports: 4
Mobile network
Data network: 2G, 4G, 3G
Short Message Service (SMS): Yes
4G standard: LTE
Number of SIM cards: 2
Ethernet LAN features
Ethernet LAN data rates: 10, 100
DHCP server: Yes
Networking standards: IEEE 802.3at, IEEE 802.3af, IEEE 802.3u, IEEE 802.3
Ethernet LAN: Yes
Ethernet LAN interface type: Fast Ethernet
DHCP client: Yes
Auto MDI/MDI-X: Yes
