Design
LED indicators: Yes
Mounting: DIN-rail
Product colour: Black
Housing material: Plastic, Aluminium
Reset button: Yes
Market positioning: Industrial

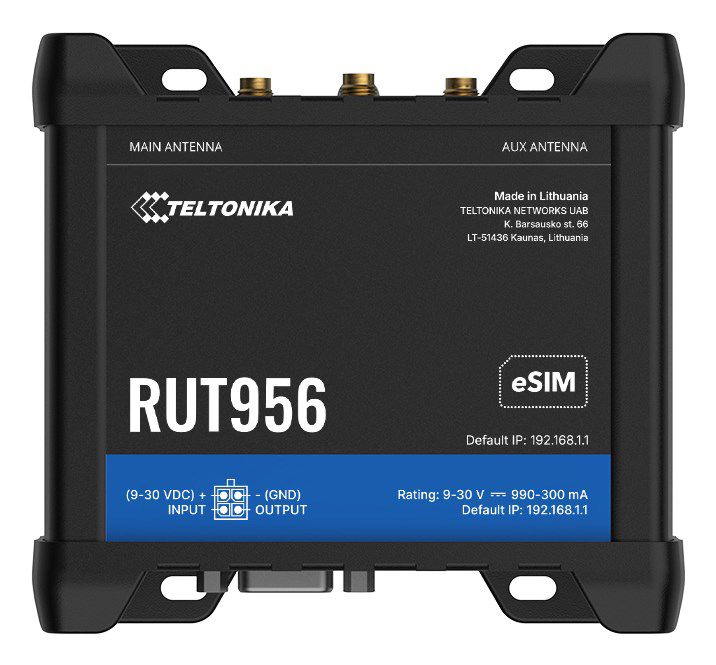

Device type: Cellular network router
Power
Input voltage: 9 - 30 V
Power source type: DC
Security
Port forwarding: Yes
Security algorithms: IPSec, WPA3-SAE, SSL/TLS, WPA2-PSK, 128-bit AES, PEAP, SSH-2, TLS, CAST, HTTPS, WEP, DES, SSH, 192-bit AES, WPA-PSK, TKIP, SNMP, WPA3-EAP, WPA2-Enterprise, AES-CCMP, SNMPv2, SSID, EAP-TLS, WPA-EAP, 256-bit AES, SNMPv3
Firewall: Yes
Network address translation (NAT): Yes
DMZ support: Yes
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -40 - 75 °C
Weight & dimensions
Height: 50 mm
Weight: 287 g
Depth: 100 mm
Width: 110 mm
Performance
Antenna type: External
RAM capacity: 0.128 GB
Antennas quantity: 5
Built-in processor: Yes
Web-based management: Yes
Processor manufacturer: MediaTek
Operating system installed: RutOS
GPS (satellite): Yes
Processor frequency: 0.58 GHz
Antenna connector type: SMA/RP-SMA
Packaging data
Package height: 60 mm
Package depth: 175 mm
Package width: 355 mm
Packaging content
Cables included: LAN (RJ-45)
Quick start guide: Yes
AC adapter included: Yes
Wireless LAN features
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11g, 802.11b
Wi-Fi: Yes
Certificates
Compliance certificates: Federal Communications Commission (FCC), CB, RCM, UL, RoHS, CE, REACH, UKCA
Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
USB 2.0 ports quantity: 1
Serial ports quantity: 2
USB port: Yes
Serial interface type: RS-232, RS-485
Logistics data
Country of origin: Lithuania
GPS Performance
Embedded GNSS: Yes
Galileo: Yes
BeiDou: Yes
Quasi-Zenith Satellite System (QZSS): Yes
GLONASS: Yes
Mobile network
Data network: 3G, 4G, 2G
Number of SIM cards: 2
Data transfer rate (LTE) (download): 150 Mbit/s
Data transfer rate (LTE) (upload): 50 Mbit/s
Short Message Service (SMS): Yes
Ethernet LAN features
Ethernet LAN data rates: 100, 10
Ethernet LAN: Yes
Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u
MAC address filtering: Yes
Ethernet LAN interface type: Fast Ethernet
Dynamic DNS (DDNS): Yes
DHCP server: Yes
Auto MDI/MDI-X: Yes
Network bridge: Yes
