Features
Operating system installed: RutOS
Built-in processor: Yes
Design
Product colour: Black

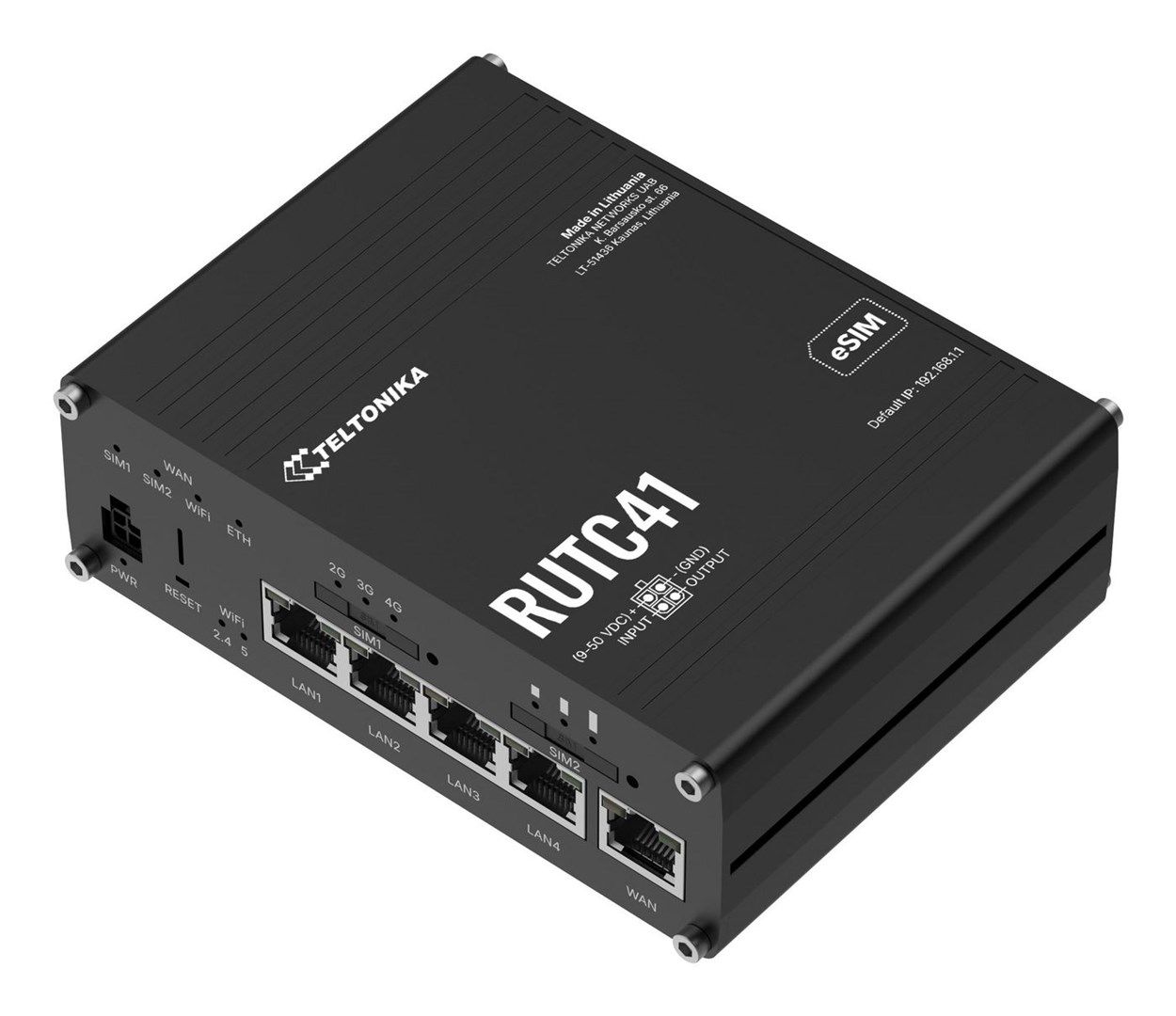

Product type: Industrial router
Power
AC input voltage: 100 - 240 V
Output voltage: 12 V
Power source type: AC
Power plug type: Type E
Output current: 2 A
Security
DDoS protection: Yes
Network address translation (NAT): Yes
MAC address filtering: Yes
DMZ support: Yes
Firewall security: Port forward, traffic rules, custom rules
IP address filtering: Yes
Firewall: Yes
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -40 - 75 °C
Management features
MU-MIMO technology: Yes
Reset button: Yes
Wake-on-LAN ready: Yes
MIMO: Yes
Quality of Service (QoS) support: Yes
Network
Ethernet LAN interface type: Gigabit Ethernet
Networking standards: IEEE 802.3az, IEEE 802.3, IEEE 802.3u
Ethernet LAN: Yes
Ethernet LAN data rates: 100, 1000, 10
Cabling technology: 10/100/1000Base-T(X)
Port forwarding: Yes
Auto MDI/MDI-X: Yes
Static route: Yes
Dynamic DNS (DDNS): Yes
Wireless LAN features
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 2402 Mbit/s
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Certificates
Compliance certificates: UKCA, CE
Protocols
Routing protocols: EIGRP, NHRP, OSPFv2, RIP-2, RIP-1, BGP
VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
DHCP client: Yes
DHCP server: Yes
Universal Plug and Play (UPnP): Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports: 5
USB 2.0 ports quantity: 1
USB port: Yes
Antenna
Antenna design: External
Antenna connector type: SMA
Antenna type: 4x4
WAN connection
3G/4G USB modem compatibility: No
Ethernet WAN: Yes
DSL WAN: No
SIM card slot: Yes
Mobile network
5G bands supported: 2600, 900, 600, 1700
5G standard: Sub6 SA/NSA
Mobile network generation: 5G
4G LTE category: 20
Short Message Service (SMS): Yes
Dual SIM support: Yes
4G standard: LTE
