Features
Processor manufacturer: MediaTek
Processor frequency: 1300 MHz
Internal memory type: DDR3
Processor architecture: ARM Cortex-A53
Internal memory: 512 MB
Built-in processor: Yes
Operating system installed: RutOS
Flash memory: 512 MB
Design
LED indicators: Yes
Product colour: Black

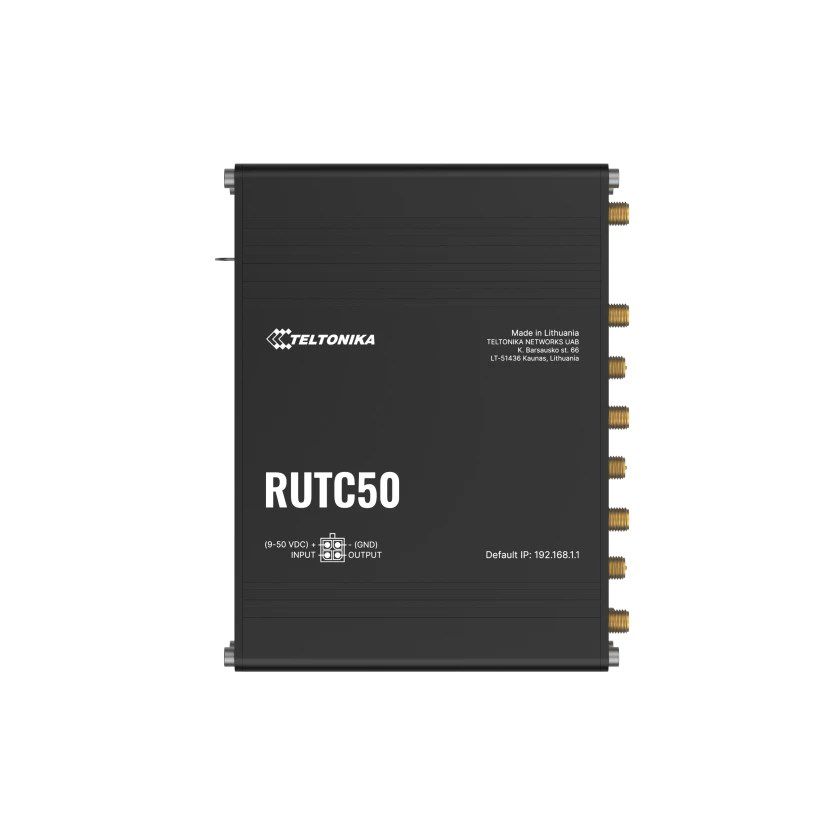

Product type: Industrial router
Power
Power consumption (typical): 4.5 W
Power source type: DC
Power plug type: Type E
Security
MAC address filtering: Yes
Network address translation (NAT): Yes
IP address filtering: Yes
Firewall: Yes
DMZ support: Yes
Firewall security: Port forward, traffic rules, custom rules
DDoS protection: Yes
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -40 - 75 °C
Management features
Wake-on-LAN ready: Yes
Web-based management: No
MIMO: Yes
Quality of Service (QoS) support: Yes
Reset button: Yes
MU-MIMO technology: Yes
Weight & dimensions
Weight: 452 g
Height: 42.6 mm
Depth: 103.4 mm
Width: 130.4 mm
Network
Networking standards: IEEE 802.3az, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates: 10, 1000 Mbit/s, 100
Ethernet LAN interface type: Gigabit Ethernet
Cabling technology: 10/100/1000Base-T(X)
Static route: Yes
Ethernet LAN: Yes
Port forwarding: Yes
Dynamic DNS (DDNS): Yes
Auto MDI/MDI-X: Yes
Wireless LAN features
Wi-Fi standards: Wi-Fi 6 (802.11ax), 802.11g, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 2402 Mbit/s
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Protocols
DHCP client: Yes
Routing protocols: RIP-1, EIGRP, NHRP, OSPFv2, BGP, RIP-2
VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
DHCP server: Yes
Universal Plug and Play (UPnP): Yes
Ports & interfaces
USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 5
USB port: Yes
Antenna
Antenna connector type: SMA
Antenna type: 4x4
Antenna design: External
WAN connection
Ethernet WAN: Yes
SIM card slot: Yes
DSL WAN: No
3G/4G USB modem compatibility: No
Mobile network
4G standard: LTE
Dual SIM support: Yes
Mobile network generation: 5G
Short Message Service (SMS): Yes
5G standard: Sub6 SA/NSA
4G LTE category: 20
5G bands supported: 6000 MHz
Safety warning
Warnings: Do not expose the device to extreme temperatures., Do not expose the device to water or moisture., Do not dismantle the unit yourself, there is a risk of electric shock.
