Features
Internal memory: 256 MB
Flash memory: 256 MB
Processor architecture: MIPS
Processor manufacturer: MediaTek
Built-in processor: Yes
Operating system installed: RutOS
Processor cores: 2
Processor frequency: 880 MHz
Internal memory type: DDR3
Design
Indication light: Yes

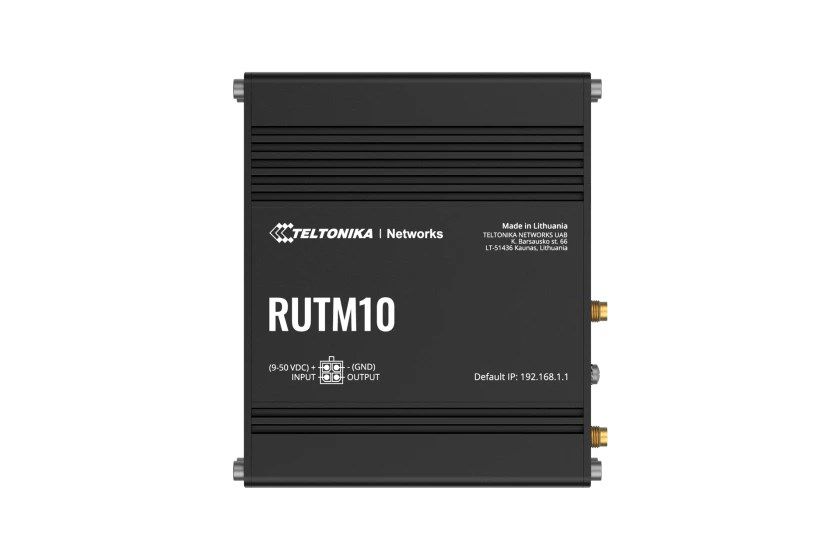

Product type: Industrial router
Product colour: Black
Power
Power consumption (typical): 3.51 W
Power source type: DC
Security
DMZ support: Yes
Firewall: Yes
Firewall security: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Security algorithms: EAP-TLS, WPA-EAP, WPA2-PSK, TKIP, OWE, AES-CCMP, WPA-PSK, WPA3-SAE, WPA3-EAP, WPA2-Enterprise-PEAP
DDoS protection: Yes
Network address translation (NAT): Yes
MAC address filtering: Yes
Operational conditions
Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%
Management features
Quality of Service (QoS) support: Yes
Wake-on-LAN ready: Yes
Reset button: Yes
MU-MIMO technology: Yes
Intelligent Mesh technology: Yes
Weight & dimensions
Depth: 95.2 mm
Height: 32.2 mm
Width: 115 mm
Weight: 359 g
Network
Port forwarding: Yes
Auto MDI/MDI-X: Yes
Ethernet LAN interface type: Gigabit Ethernet
Dynamic DNS (DDNS): Yes
Policy-based routing: Yes
Static route: Yes
Ethernet LAN: Yes
SSID-based VLAN assignment: Yes
Cabling technology: 10/100/1000Base-T(X)
Load balancing system: Yes
Ethernet LAN data rates: 1000 Mbit/s, 10, 100
Networking standards: IEEE 802.3u, IEEE 802.3, IEEE 802.3az
Support Samba (storage): Yes
Wireless LAN features
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max): 867 Mbit/s
Protocols
Routing protocols: EIGRP, NHRP, RIP-1, BGP, OSPFv2, RIP-2
Ports & interfaces
USB port: Yes
USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 4
Antenna
Antenna design: External
WAN connection
Ethernet WAN: Yes
SIM card slot: No
DSL WAN: No
3G/4G USB modem compatibility: No
