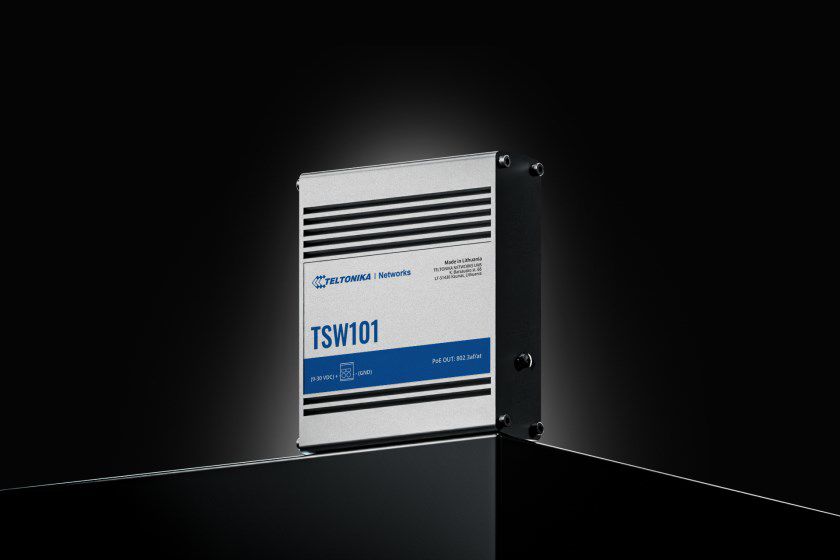

Teltonika TSW101 Gigabit Ethernet (10 /100 /1000) Power over Ethernet (PoE) Metallic

Design
LED indicators: Status, Power
International Protection (IP) code: IP30
Housing material: Aluminium
Product colour: Metallic

Power
Power consumption (typical): 0.64 W
Input voltage: 9 - 30 V
Power source: DC
Power consumption (max): 2.31 W

Operational conditions
Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions
Width: 115 mm
Depth: 32 mm
Height: 95 mm
Weight: 354 g

Network
Ethernet LAN data rates: 10,100,1000 Mbit/s
Auto MDI/MDI-X: Yes
Networking standards: IEEE 802.3az, IEEE 802.3u, IEEE 802.3
10G support: No

Ports & interfaces
Power connector: Terminal block (2-pin)
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data
Harmonized System (HS) code: 851762

Data transmission
Jumbo frames: 9216
MAC address table: 2000 entries
Jumbo frames support: Yes
Switching capacity: 10 Gbit/s

Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 4
Total Power over Ethernet (PoE) budget: 120 W
Power over Ethernet (PoE) power per port: 30 W
