Features
Firmware upgradeable: Yes
Design
LED indicators: LAN, LTE, WLAN

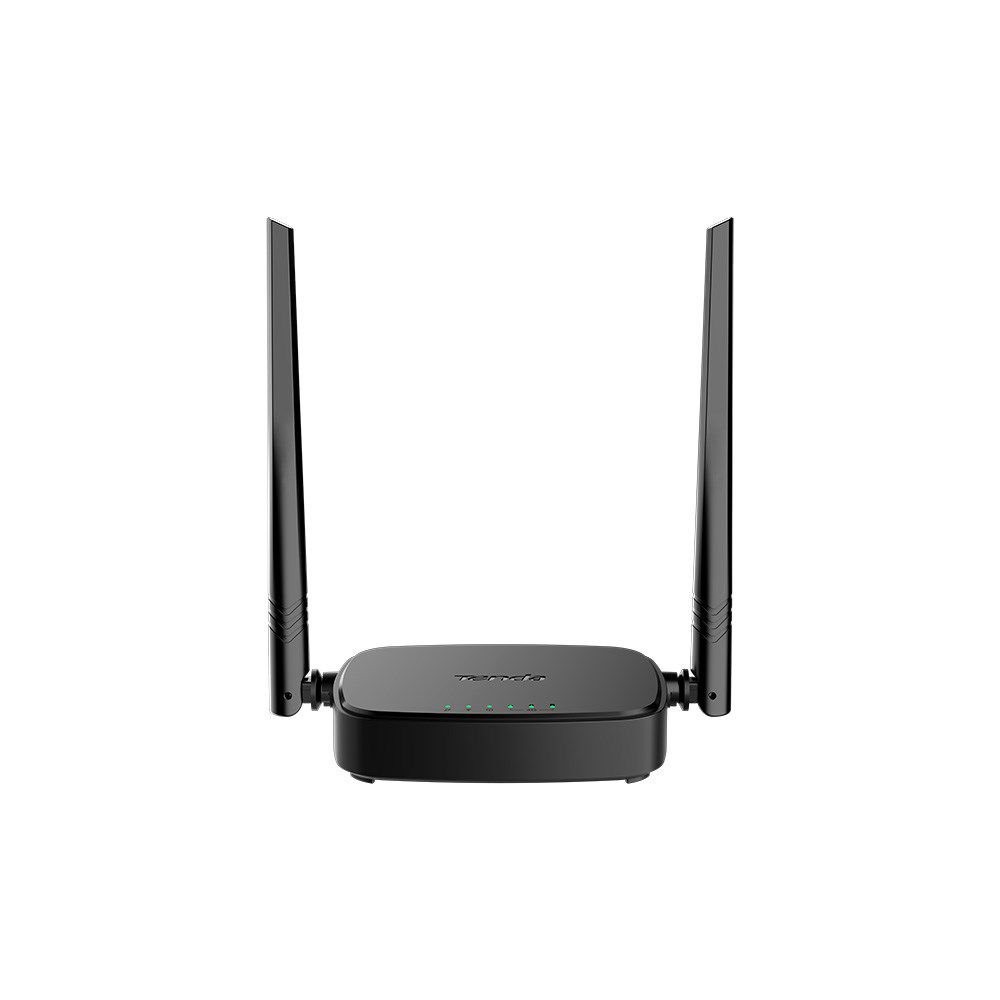

Product type: Portable router
Product colour: Black
Power
Output current: 1 A
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power source type: DC
Output voltage: 5 - 9 V
Security
Schedule access: Yes
Security algorithms: WPA2, WPA, WPA2-PSK, WPA-PSK
Firewall: Yes
Guest access: Yes
Operational conditions
Operating temperature (T-T): -5 - 45 °C
Storage temperature (T-T): -30 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Management features
Quality of Service (QoS) support: Yes
Reset button: Yes
WPS push button: Yes
Weight & dimensions
Width: 90.5 mm
Depth: 127.4 mm
Weight: 134 g
Height: 26 mm
VPN support: VPN(PPTP Client/L2TP Client/PPTP Server)
Network
Ethernet LAN data rates: 100, 10
Networking standards: IEEE 802.11g, IEEE 802.11n, IEEE 802.11b
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN: Yes
VPN server: PPTP Server
Packaging content
AC adapter included: Yes
Cables included: LAN (RJ-45)
Quick installation guide: Yes
Wireless LAN features
Wi-Fi standards: 802.11g, Wi-Fi 4 (802.11n), 802.11b
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rate (max): 300 Mbit/s
Wi-Fi band: Single-band (2.4 GHz)
WLAN data transfer rate (first band): 300 Mbit/s
Certificates
Compliance certificates: RoHS, CE
Protocols
DHCP client: Yes
DHCP server: Yes
Supported network protocols: IPv4/IPv6
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
DC-in jack: Yes
USB port: No
Antenna
Antenna design: Internal & external
Antennas quantity: 4
Transmit power: 20 dBmW
WAN connection
SIM card slot: Yes
DSL WAN: No
WAN connection type: RJ-45
3G/4G USB modem compatibility: No
Ethernet WAN: Yes
Mobile network
4G standard: LTE-TDD & LTE-FDD
3G standards: WCDMA
SIM card type: NanoSIM
Sustainability
Sustainability compliance: Yes
