Design
Mounting type: Desk/Wall
Product colour: White
International Protection (IP) code: IP67
Form factor: Cube
Power
Power consumption (Power over Ethernet (PoE)): 40 W
DC output current: 1.25 A
DC output voltage: 54
Power source type: DC
Security
Video motion detection: Yes
Active tampering alarm: Yes
Operational conditions
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -30 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Management features
Web browser: Yes
Weight & dimensions
Height: 305 mm
Width: 380 mm
Weight: 5.25 kg
Depth: 283 mm
Network
Streaming method: Multicast
Ethernet LAN: Yes
Supported network protocols: HTTP, HTTPS, WebSockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS
Networking standards: IEEE 802.3af
System requirements
Mobile operating systems supported: iOS, Android
Performance
Infrared (IR) cut-off filter: Yes
Day/night mode: Yes

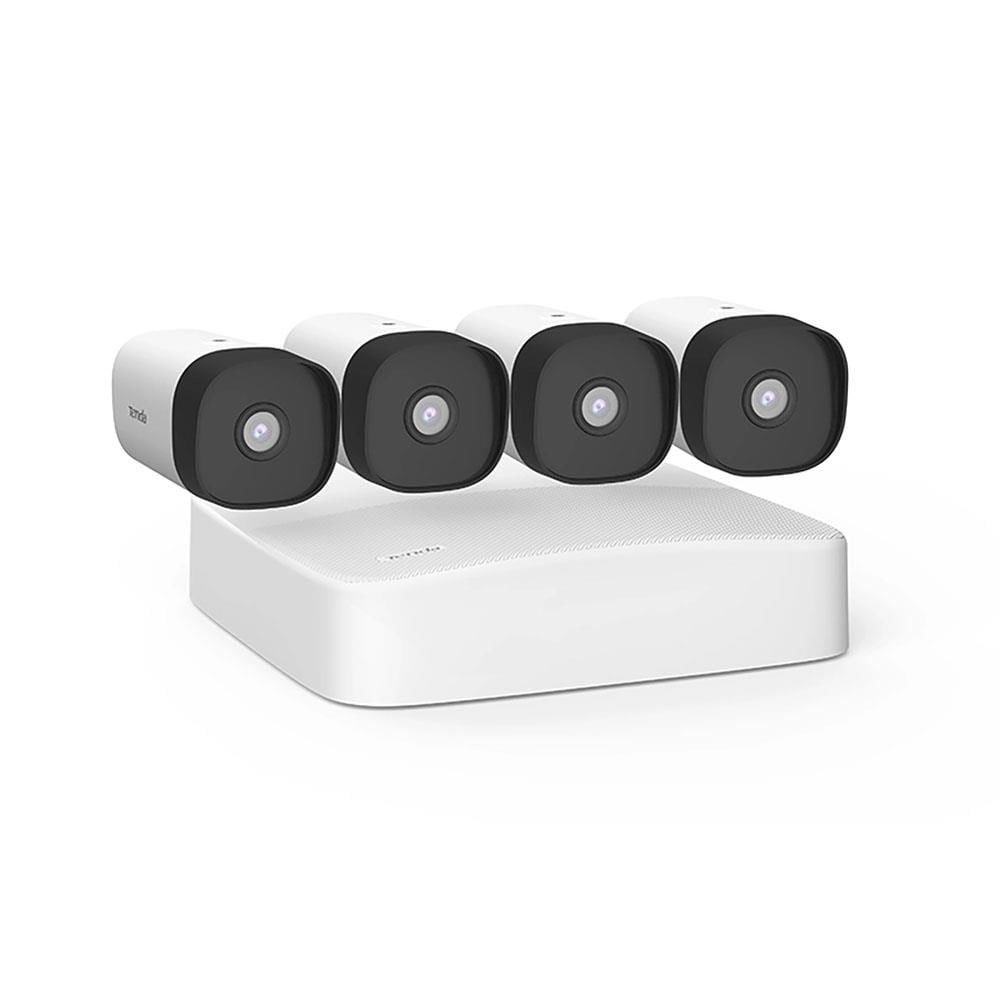

Type: IP security camera
Built-in light: Yes
Connectivity technology: Wired
Packaging content
Cables included: HDMI, LAN (RJ-45)
Number of cameras: 4
Manual: Yes
Screws included: Yes
Audio
Sample rate: 8 kHz
Built-in microphone: Yes
Audio formats supported: G.711 A-law, G.711 μ-law
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Storage
HDD capacity: 10 TB
Built-in HDD: Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
Camera
Lens viewing angle, diagonal: 88.2°
Lens viewing angle, horizontal: 74.9°
Lens viewing angle, vertical: 41.3°
Image sensor
Sensor type: CMOS
Optical sensor size: 25.4 / 3 mm (1 / 3")
Video
Noise reduction technology: 3D noise reduction
Video streaming: Yes
Video recording: Yes
Supported graphics resolutions: 320 x 240, 640 x 360, 3840 x 2160, 1280 x 720 (HD 720), 2560 x 1440, 1920 x 1080 (HD 1080), 352 x 288, 1280 x 1024 (SXGA), 2304 x 1296
Video formats supported: H.264, H.265
Back Light Compensation (BLC): Yes
Frame rate: 30 fps
Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Digital Wide Dynamic Range (DWDR): Yes
Noise reduction: Yes
Night vision
Night vision: Yes
LED type: IR
Lens system
Number of lenses: 1
Lens diameter: 4 mm
Sustainability
Compliance certificates: UKCA, CCC, RoHS, CE, Federal Communications Commission (FCC)
