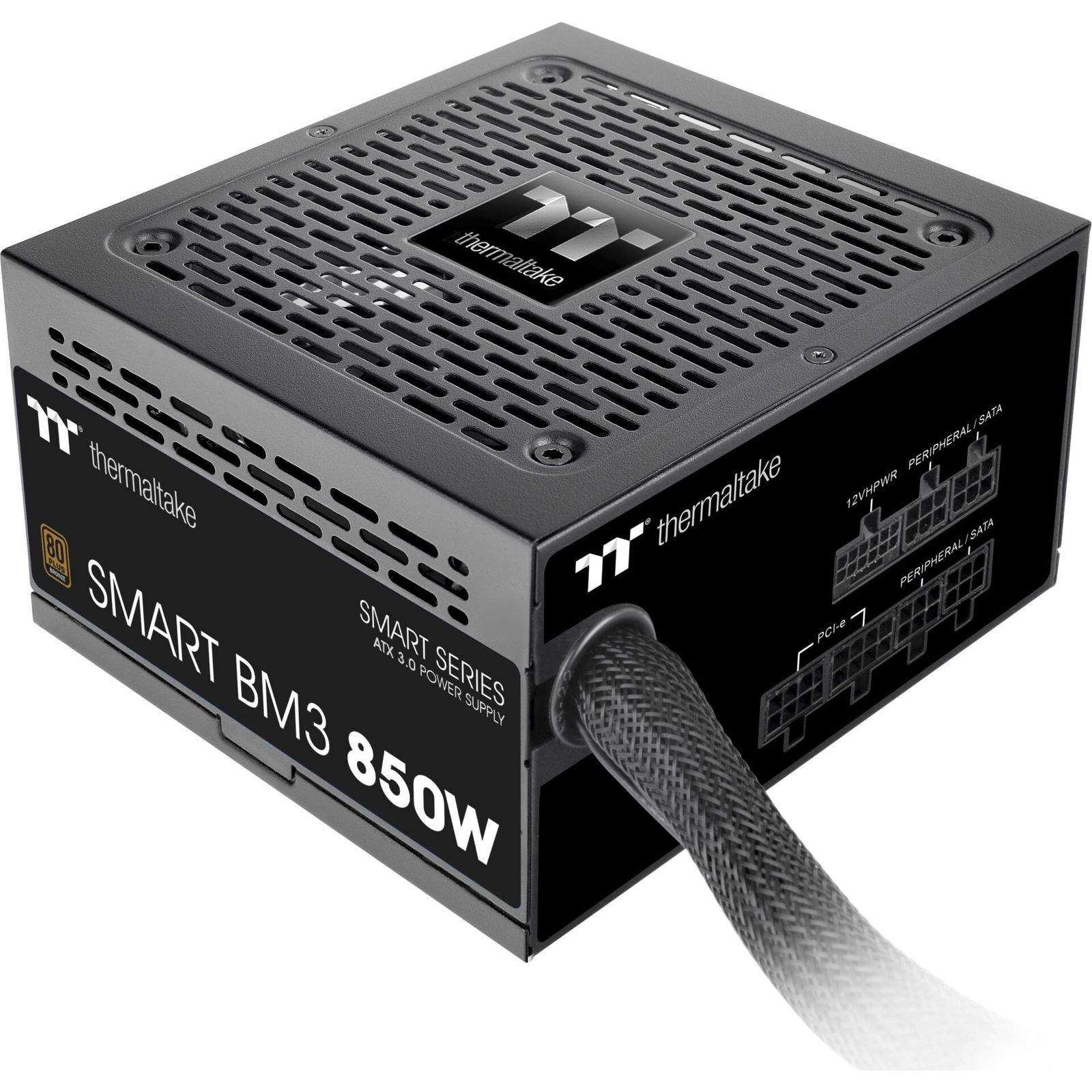

Thermaltake Smart BM3 850W Power Supply

Thermaltake Smart BM3 850W power supply, black

80 PLUS Bronze certified semi-modular power supply, compatible with Intel's ATX 3.0 specifications. It is equipped with a native PCIe Gen 5.0 connector and can power entry-level next-gen GPUs with a 12VHPWR cable.

Features:

• Power: 850 W
• PCIe Gen 5.0, 12VHPWR, 16-pin connector (can deliver up to 450 W for PCIe 5.0 graphics cards)
• Fully compatible with Intel ATX 3.0 standards
• PCIe Gen 5.0 Ready
• 120 mm FDB fan that provides excellent airflow
• Smart Zero Fan, the fan only turns when the load exceeds 20% of the power supply
• Durable and reliable electrolytic capacitors
• Semi-modular: Power supply unit fulfils ATX 3.0 standards
• Integrated protection in industrial quality: OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection)
• Active PFC
• Power Good Signal: 100-150 msec
• Operating temperature: 5°C to + 45°C
• Efficiency: 80 PLUS Bronze at 115 VAC
• MTBF: approx. 100,000 h
• Protection: OCP / OVP / UVP / OPP / OTP / SCP
• Connections:
  • 1x 24-pin main power supply
  • 2x 4+4-pin CPU power connection
  • 6x S-ATA 5-pin
  • 4x 6+2-pin PCIe connection
  • 1x 12+4-pin PCIe connector
  • 7x 4-pin peripheral connection
• Dimensions (W x H x D): 150 x 86 x 140 mm
• Colour: black
