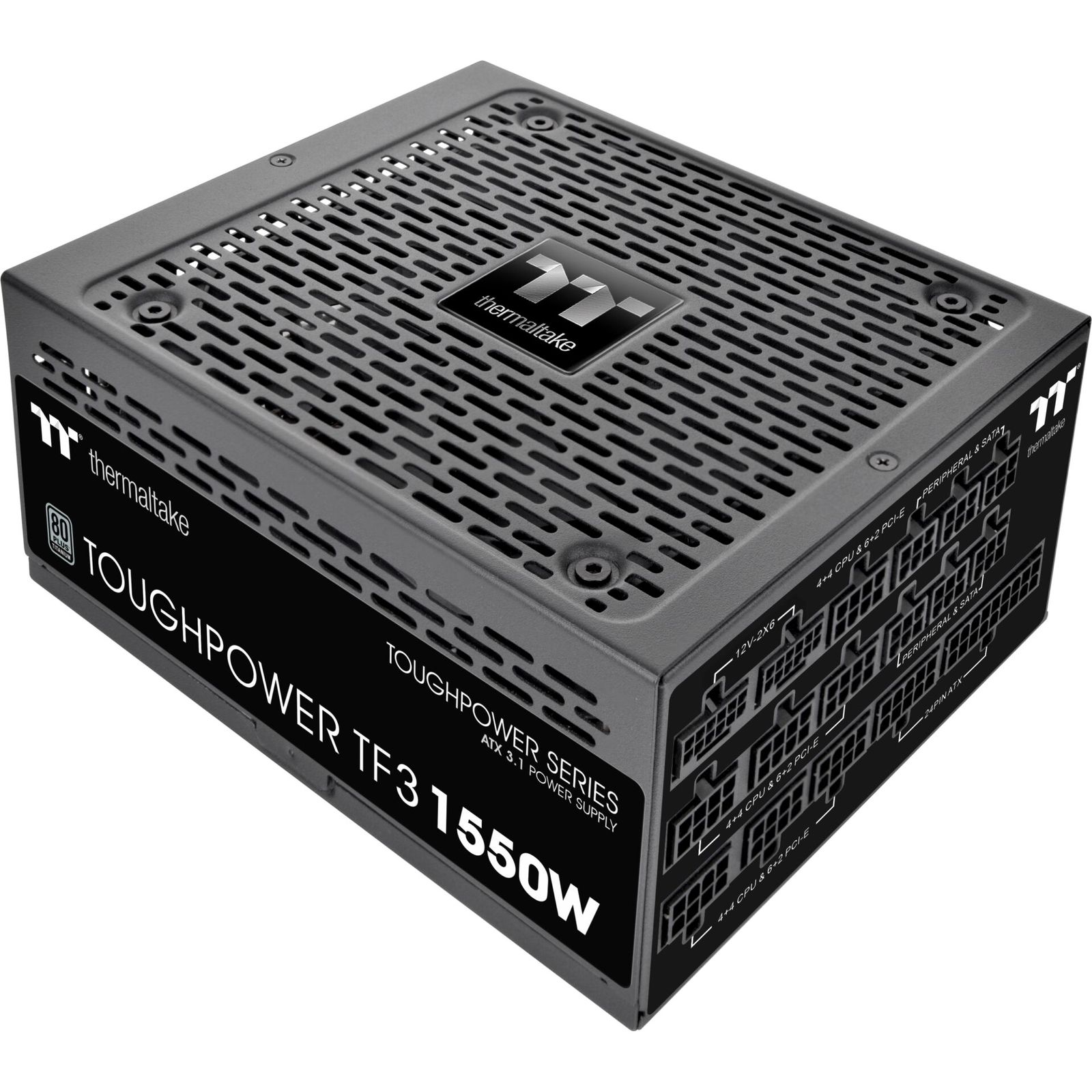

Thermaltake Toughpower TF3 1550W

Thermaltake Toughpower TF3 1550W PC-Netzteil PCIe 5.1 Ready, black

Designed for overclockers, users with high-end systems and more, the Toughpower TF3 Titanium 1550W offers 80 PLUS titanium efficiency to meet their needs. The Toughpower TF3 1550W has two native 12V-2x6 ports with a total output of 600W.

Manual overclocking mode
The OCM switch allows you to easily optimize your system’s performance. By default, the power supply works in multi-rail mode with over-current protection (OCP) to ensure maximum safety for your components. Overclocking enthusiasts can put the power supply in single 12-volt rail mode with a simple click on the OCM switch to increase performance when you need it most.

Features:

• Power: 1550 W
• ATX 3.1
• PCIe Gen 5.1 Ready:  2x Up to 600W max (Delivers up to 600W total power for PCIe 5.1 graphics cards)
• Switch for physical overclocking mode
• Particularly quiet 140 mm hydraulic fan
• Fully modular low-profile cables
• Integrated protection in industrial quality: OCP, OVP, UVP, OPP, SCP, OTP
• 80 Plus titanium certified

Technical data:

• Dimensions: 150 x 86 x 165 mm
• PFC: Active PFC
• Current: 20 - 8 A
• Voltage: 100 - 240 V (50 / 60 Hz)
• Lifetime (MTBF): about 100000 hours
• Connections:
  • 1x 24 pin mainboard, cable length 600 mm
  • 2x ATX 12V (4+4Pin), cable length 750 mm
  • 5x PCIe (6+2Pin), cable length 600 mm / 600 + 150 mm
  • 2x PCIe (12+4Pin max 600W total power), cable length 600 mm
  • 16x SATA (5pin), cable length 6000 mm + 150 mm + 150 mm + 150 mm
  • 8x Peripheral (4Pin), cable length 600 mm + 150 mm + 150 mm + 150 mm
• Colour: black
