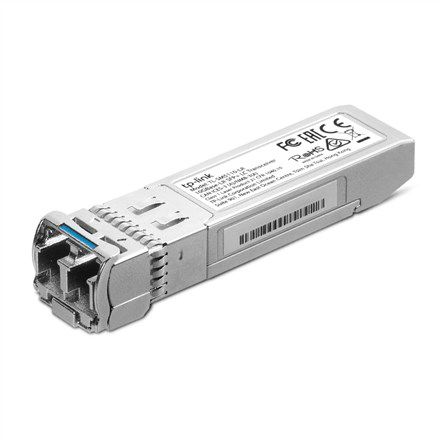

TP-Link 10Gbase-LR SFP+ LC Transceiver

Compatible products: Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.

Features
Brand compatibility: TP-Link
Hot-swap: Yes
Hot-Plug support: Yes

Power
Input voltage: 3.3 V

Operational conditions
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions
Width: 56.7 mm
Height: 10.3 mm
Depth: 13.9 mm

Performance
Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 802.3ae
Wavelength: 1310 nm
Fiber cable diameters supported (core/cladding): 9/125 µm
Fiber optic connector: LC
Maximum transfer distance: 10000 m
Interface type: SFP+
Multi-mode fiber (MMF) supported: No
Duplex system: Full
SFP transceiver type: Fiber optic
SFP transceiver standard: LR
Digital Diagnostics Monitoring (DDM): Yes
Single-mode fiber (SMF) supported: Yes

Packaging data
Package weight: 60 g
Package width: 81.5 mm
Package height: 38.5 mm
Package depth: 122.5 mm

Packaging content
Quantity per pack: 1 pc(s)

Logistics data
Harmonized System (HS) code: 85369010
