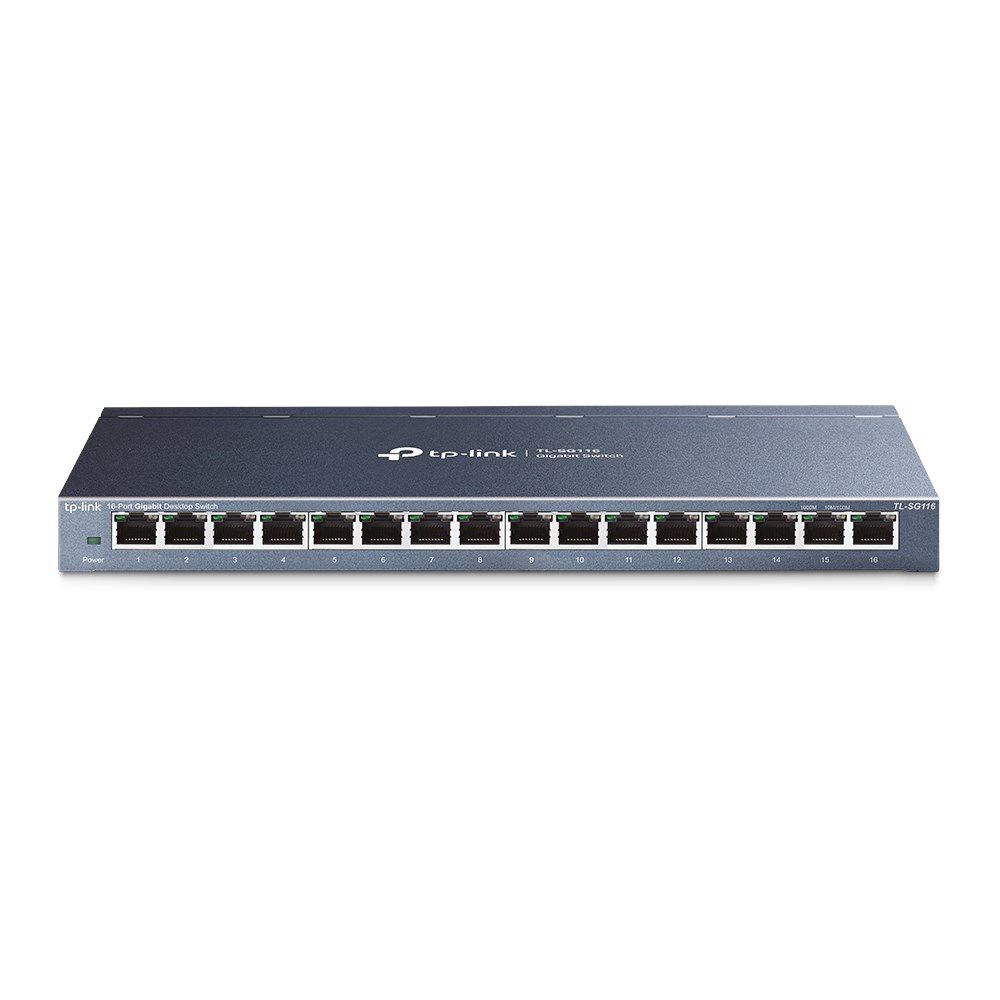

TP-Link 16-Port Gigabit Desktop Network Switch

Certification: CE, FCC ,RoHS

Design
Housing material: Steel
LED indicators: Yes
Product colour: Black
Rack mounting: No

Power
Power source: DC
Input current: 1 A
Power supply included: Yes
Input voltage: 12 V
Power consumption (max): 10 W

Security
IGMP snooping: Yes

Operational conditions
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 34.12 BTU/h
Operating temperature (T-T): 0 - 40 °C

Management features
Switch type: Unmanaged
Quality of Service (QoS) support: Yes

Weight & dimensions
Width: 286 mm
Depth: 111.7 mm
Height: 25.4 mm

Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3u
10G support: No
Auto-negotiation: Yes
Full duplex: Yes
Flow control support: Yes
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 1000BASE-T, 10BASE-T, 100BASE-TX

Performance
Plug and Play: Yes

Packaging data
Package width: 170 mm
Package depth: 412 mm
AC adapter included: Yes
Package weight: 1.33 kg
Package height: 70 mm
Package type: Box
Quick start guide: Yes
Rubber feet: Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 16
Gigabit Ethernet (copper) ports quantity: 16

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
MAC address table: 8000 entries
Packet buffer memory: 4.1 MB
Store-and-forward: Yes
Switching capacity: 32 Gbit/s
Jumbo frames support: Yes
Jumbo frames: 10000
Forwarding rate: 23.8 Mpps

Power over Ethernet (PoE)
Power over Ethernet (PoE): No
