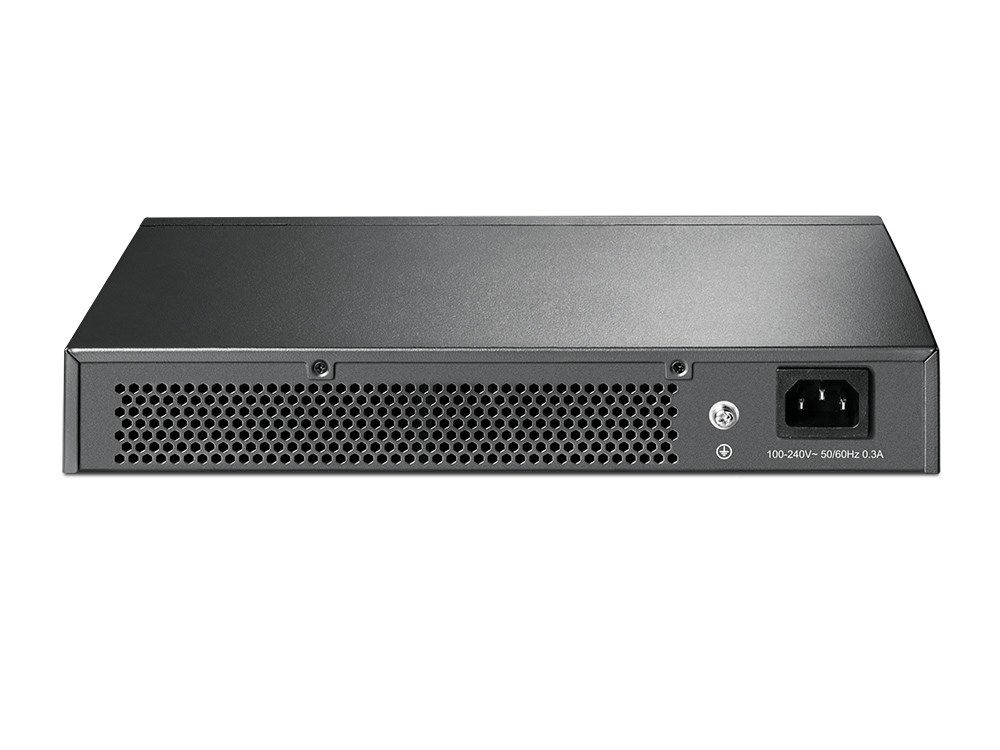

TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch

Design
Stackable: Yes
LED indicators: Yes
Product colour: Black
Rack mounting: Yes

Power
Power source: AC
Power consumption (max): 9.26 W
AC input voltage: 100 - 240 V
Power supply included: Yes
AC input frequency: 50/60 Hz

Operational conditions
Heat dissipation: 31.6 BTU/h
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Operating relative humidity (H-H): 10 - 90%

Management features
Switch type: Unmanaged

Weight & dimensions
Depth: 180 mm
Height: 44 mm
Width: 294 mm

Network
Cable types supported: Cat4, Cat5, Cat5e, Cat3
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Copper ethernet cabling technology: 1000BASE-T, 10BASE-T, 100BASE-TX, 1000BASE-TX
Full duplex: Yes
Flow control support: Yes
10G support: No
Networking standards: IEEE 802.3x, IEEE 802.3ab, IEEE 802.3u
Compatible operating systems: Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux

Performance
Fanless: Yes
Maximum cable length: 100 m

Packaging data
Package weight: 1.85 kg
Package height: 80 mm
Package type: Box
Cables included: AC
Package depth: 400 mm
User guide: Yes
Package width: 250 mm
Rack mount kit: Yes

Protocols
Supported network protocols: CSMA/CD, TCP/IP

Ports & interfaces
Power connector: AC-in jack
Basic switching RJ-45 Ethernet ports quantity: 16
Gigabit Ethernet (copper) ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Switching capacity: 32 Gbit/s
MAC address table: 8000 entries
Forwarding rate: 23.8 Mpps
Store-and-forward: Yes
Jumbo frames: 10000
Jumbo frames support: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Sustainability
Sustainability compliance: Yes
Sustainability certificates: RoHS, CE, Federal Communications Commission (FCC)
