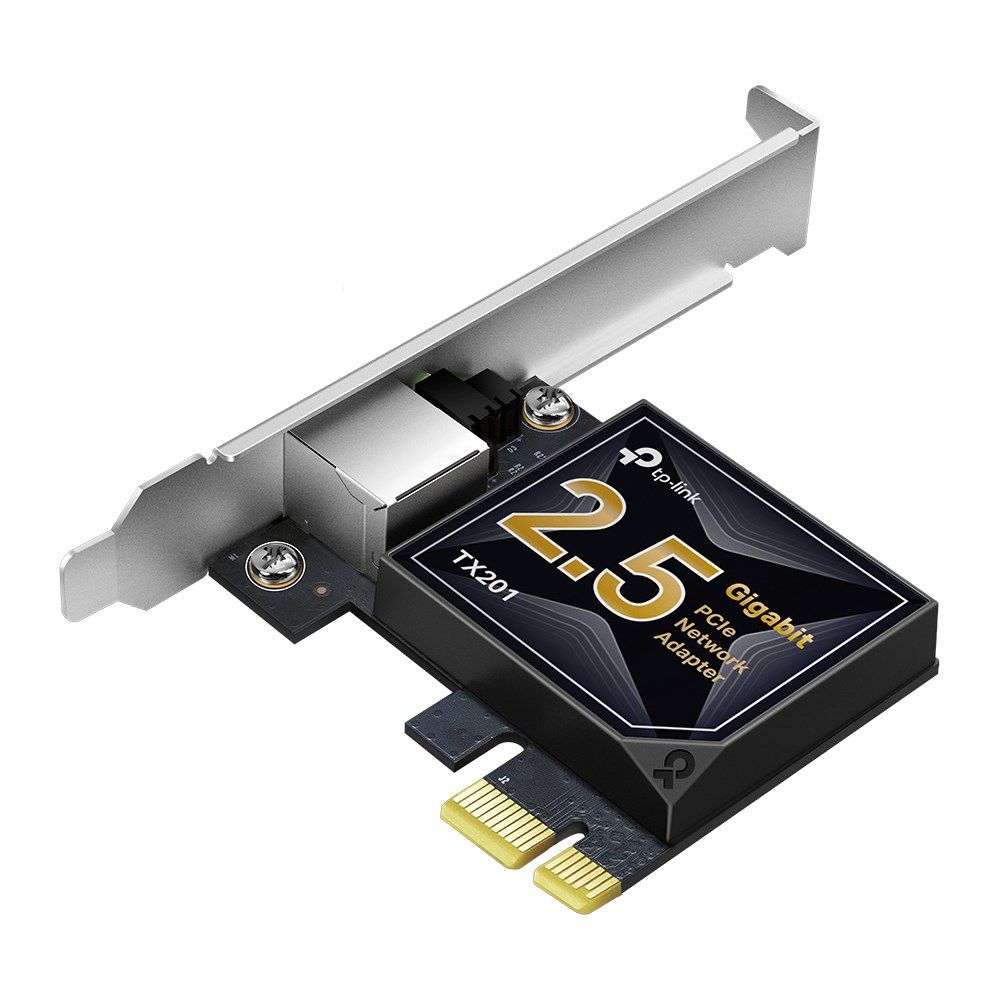

TP-Link 2.5 Gigabit PCIe Network Adapter

Technical details
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE

Design
Component for: PC/Laptop
Internal: Yes
LED indicators: Link, Activity
Product colour: Black, Grey

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 90%
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions
Height: 98.2 mm
Width: 120.8 mm
Depth: 21.5 mm

Network
Ethernet LAN: Yes
Ethernet LAN data rates: 1000, 100, 10, 2500 Mbit/s
Maximum data transfer rate: 2500 Mbit/s
Wake-on-LAN ready: Yes
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3u
Full duplex: Yes
Ethernet interface type: 2.5 Gigabit Ethernet

System requirements
Windows operating systems supported: Windows 10 Home, Windows 8 x64, Windows 10 Education, Windows 10 Home x64, Windows 8, Windows 7 Professional x64, Windows 10, Windows 10 IOT Core, Windows 8 Enterprise x64, Windows 8 Pro, Windows 7 Enterprise, Windows 10 Pro x64, Windows 8 Enterprise, Windows 10 Education x64, Windows 8 Pro x64, Windows 8.1 Pro, Windows 10 Pro, Windows 7 Home Premium, Windows 7 Starter, Windows 10 IoT Enterprise, Windows 10 Enterprise, Windows 7 Home Basic x64, Windows 8.1, Windows 7 Ultimate x64, Windows 7 x64, Windows 10 Enterprise x64, Windows 10 x64, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 7 Home Premium x64, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Ultimate, Windows 7 Starter x64, Windows 8.1 Enterprise, Windows 7 Professional, Windows 7
Server operating systems supported: Windows Server 2008 R2, Windows Server 2019, Windows Server 2012, Windows Server 2022, Windows Server 2012 R2, Windows Server 2016
Linux operating systems supported: Yes

Packaging data
Package height: 41.5 mm
Package width: 201.5 mm
Package weight: 170 g
Package depth: 152.5 mm

Packaging content
Resource CD: Yes
Quick installation guide: Yes
Mounting brackets included: Yes

Ports & interfaces
PCI version: 2.1
Interface: Ethernet
Connectivity technology: Wired
Host interface: PCI Express
Ethernet LAN (RJ-45) ports: 1

Safety warning
Warnings: Please observe local regulations regarding the disposal of electronic waste.

Sustainability
Sustainability compliance: Yes
