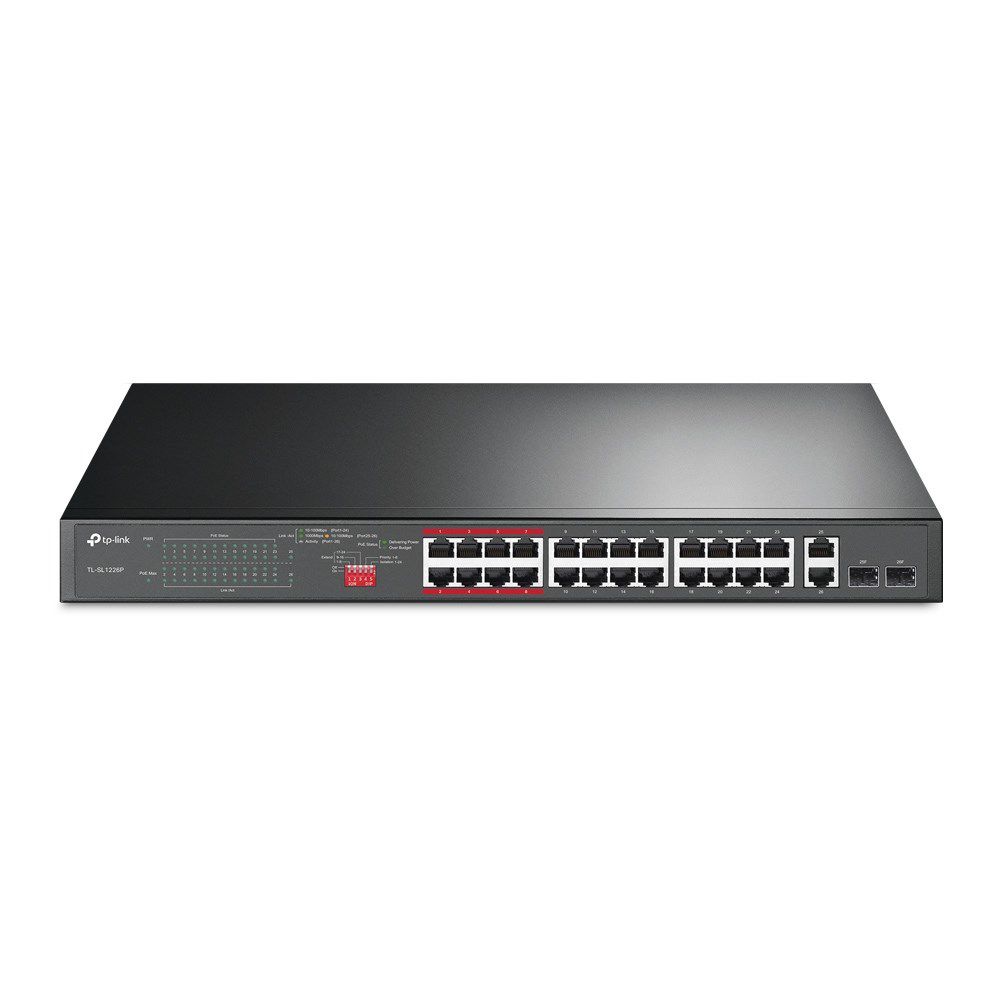

TP-Link 24-Port 10 /100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

Design
LED indicators: Yes
Product colour: Grey
Number of fans: 2 fan(s)
Form factor: 1U
Rack mounting: Yes

Power
AC input voltage: 100 - 240 V
Power consumption (max): 281 W
Power source: AC
Power supply included: Yes

Operational conditions
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 1002.54 BTU/h

Management features
Switch type: Unmanaged
Traffic classification: Yes

Weight & dimensions
Depth: 180 mm
Width: 440 mm
Height: 44 mm

Network
Networking standards: IEEE 802.3x, IEEE 802.3at, IEEE 802.3af
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Auto-negotiation: Yes
10G support: No

Packaging data
Package weight: 3.02 kg
Package width: 250 mm
Package height: 80 mm
Package depth: 528 mm

Packaging content
Quick start guide: Yes
Rack mount kit: Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 26
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2
Gigabit Ethernet (copper) ports quantity: 2
Fast Ethernet (copper) ports quantity: 24

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Jumbo frames support: Yes
Switching capacity: 8.8 Gbit/s
MAC address table: 8000 entries
Forwarding rate: 6.54 Mpps
Packet buffer memory: 4.1 MB
Jumbo frames: 10000
Store-and-forward: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 250 W
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet plus (PoE+) ports quantity: 24
