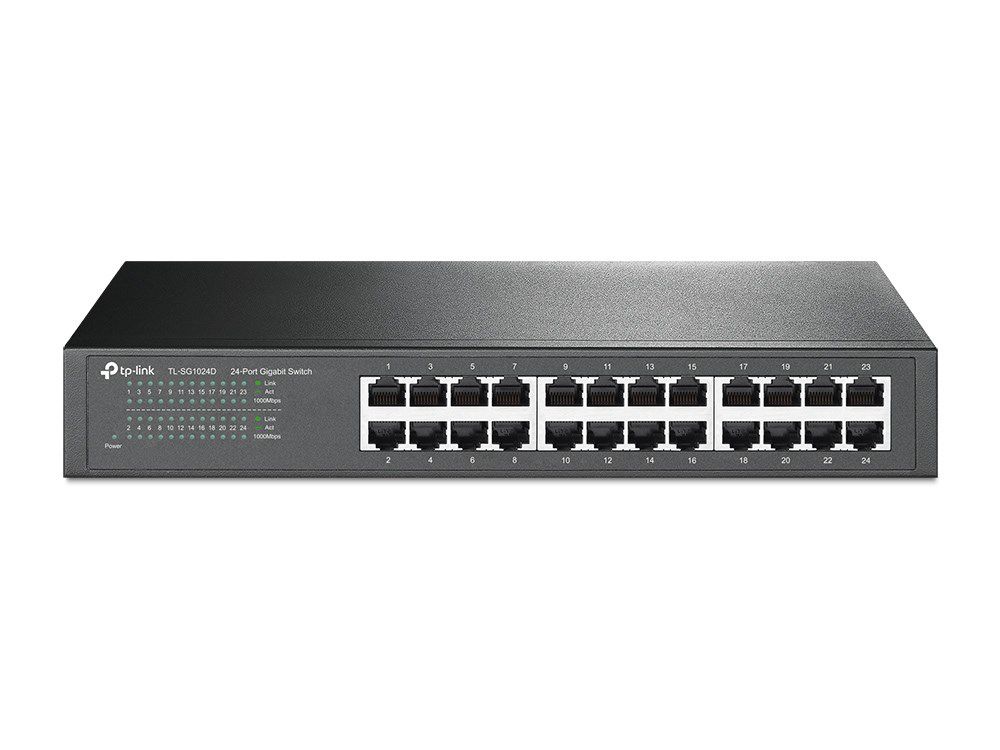

TP-Link 24-Port Gigabit Desktop/Rackmount Network Switch

Certification: FCC, CE, RoHS

Design
Product colour: Grey
Rack mounting: Yes
LED indicators: Yes
Stackable: Yes

Power
Power supply included: Yes
AC input frequency: 50 - 60 Hz
Power consumption (max): 13.62 W
AC input voltage: 100 - 240 V
Power source: AC

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 32 - 104 °F, 0 - 40 °C
Heat dissipation: 46.44 BTU/h
Storage relative humidity (H-H): 5 - 90%

Management features
Quality of Service (QoS) support: Yes
Switch type: Unmanaged

Weight & dimensions
Height: 44 mm
Width: 294 mm
Depth: 180 mm

Network
10G support: No
Auto MDI/MDI-X: Yes
Full duplex: Yes
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Auto-negotiation: Yes
Flow control support: Yes
Networking standards: IEEE 802.3x, IEEE 802.3ab, IEEE 802.3u

Packaging data
Package type: Box
Package height: 80 mm
Cables included: AC
User guide: Yes
Package width: 250 mm
Package weight: 1.95 kg
Rack mount kit: Yes
Package depth: 400 mm

Protocols
Supported network protocols: CSMA/CD, TCP/IP

Ports & interfaces
Power connector: DC-in jack
Basic switching RJ-45 Ethernet ports quantity: 24
Gigabit Ethernet (copper) ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Other features
Bandwidth: 48 Gbit/s
Dimensions (WxDxH): 294 x 180 x 44 mm
Networking features: Gigabit Ethernet
Connectivity LEDs: Y
Connectivity technology: Wired
Power requirements: 100 - 240V, 50/60Hz

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Switching capacity: 48 Gbit/s
Forwarding rate: 35.7 Mpps
Supported data transfer rates: 10/100/100 Mbps
Jumbo frames: 10000
Jumbo frames support: Yes
Maximum data transfer rate: 1 Gbit/s
MAC address table: 8000 entries
Store-and-forward: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE): No
