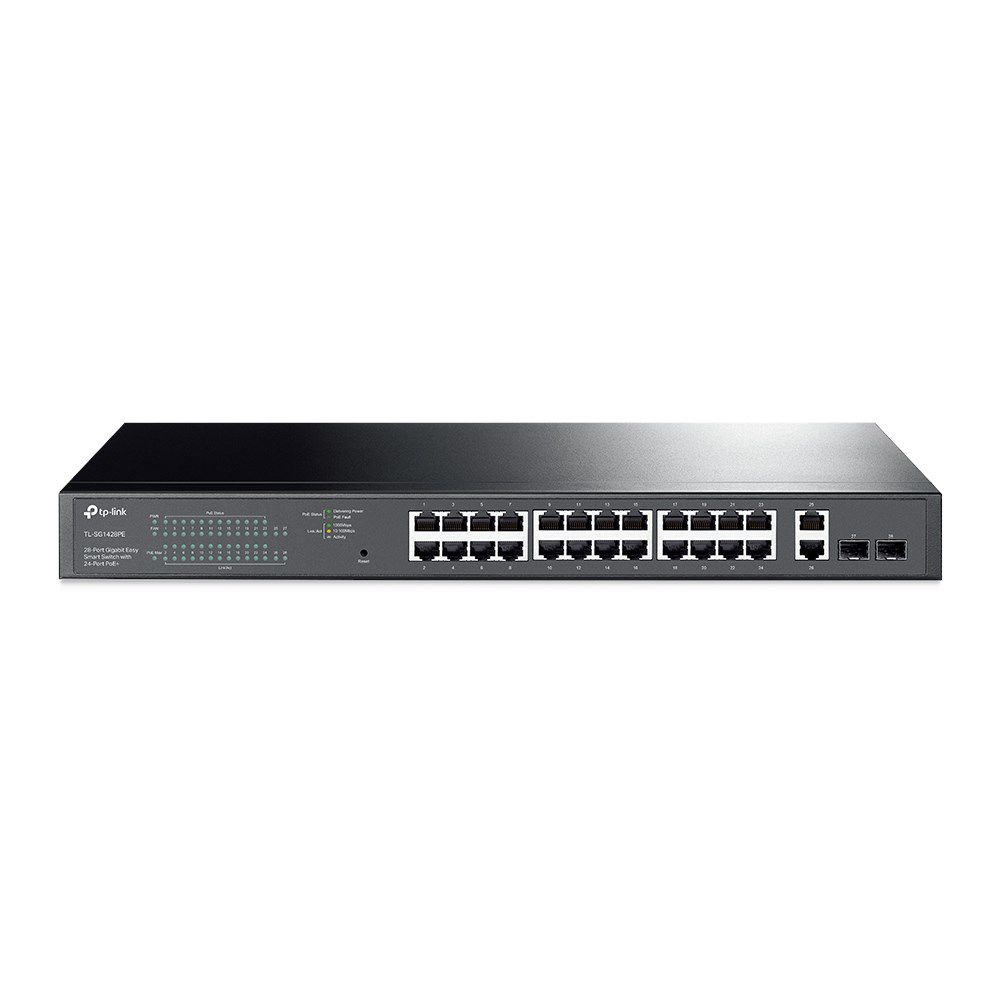

TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+

Design
Rack mounting: Yes
Form factor: 1U
Number of fans: 2 fan(s)
Product colour: Black

Power
Power consumption (max): 1039.03 W
Power source: AC
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Power supply included: Yes

Security
Security algorithms: SNMPv3, SNMP, SNMPv2
IGMP snooping: Yes

Operational conditions
Operating temperature (T-T): 0 - 50 °C
Storage relative humidity (H-H): 5 - 90%
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C

Management features
Switch type: Managed
Web-based management: Yes
Quality of Service (QoS) support: Yes
Switch layer: L2

Weight & dimensions
Width: 440 mm
Depth: 220 mm
Height: 44 mm

Network
Cable types supported: Cat3, Cat5, Cat5e, Cat4, Cat6
Auto-negotiation: Yes
Virtual LAN features: Port-based VLAN, Tagged VLAN
Networking standards: IEEE 802.3af, IEEE 802.3, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3at
Copper ethernet cabling technology: 1000BASE-T, 10BASE-T, 100BASE-TX
Link aggregation: Yes
VLAN support: Yes
Rate limiting: Yes
Auto MDI/MDI-X: Yes
Broadcast storm control: Yes
Port mirroring: Yes
Number of VLANs: 32
10G support: No
Flow control support: Yes

Packaging data
Package weight: 2.29 kg
Package width: 336 mm
Package height: 100 mm
Package depth: 528 mm

Packaging content
User guide: Yes
Cables included: AC
Rack mount kit: Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 26
Gigabit Ethernet (copper) ports quantity: 26
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Forwarding rate: 41.7 Mpps
Switching capacity: 56 Gbit/s
Store-and-forward: Yes
Jumbo frames: 10000
Number of queues: 4
Jumbo frames support: Yes
MAC address table: 8000 entries
Packet buffer memory: 4.1 MB

Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 250 W
Power over Ethernet (PoE) power per port: 30 W

Multicast features
Multicast support: Yes

Optical fiber
Fiber ethernet cabling technology: 1000BASE-X
