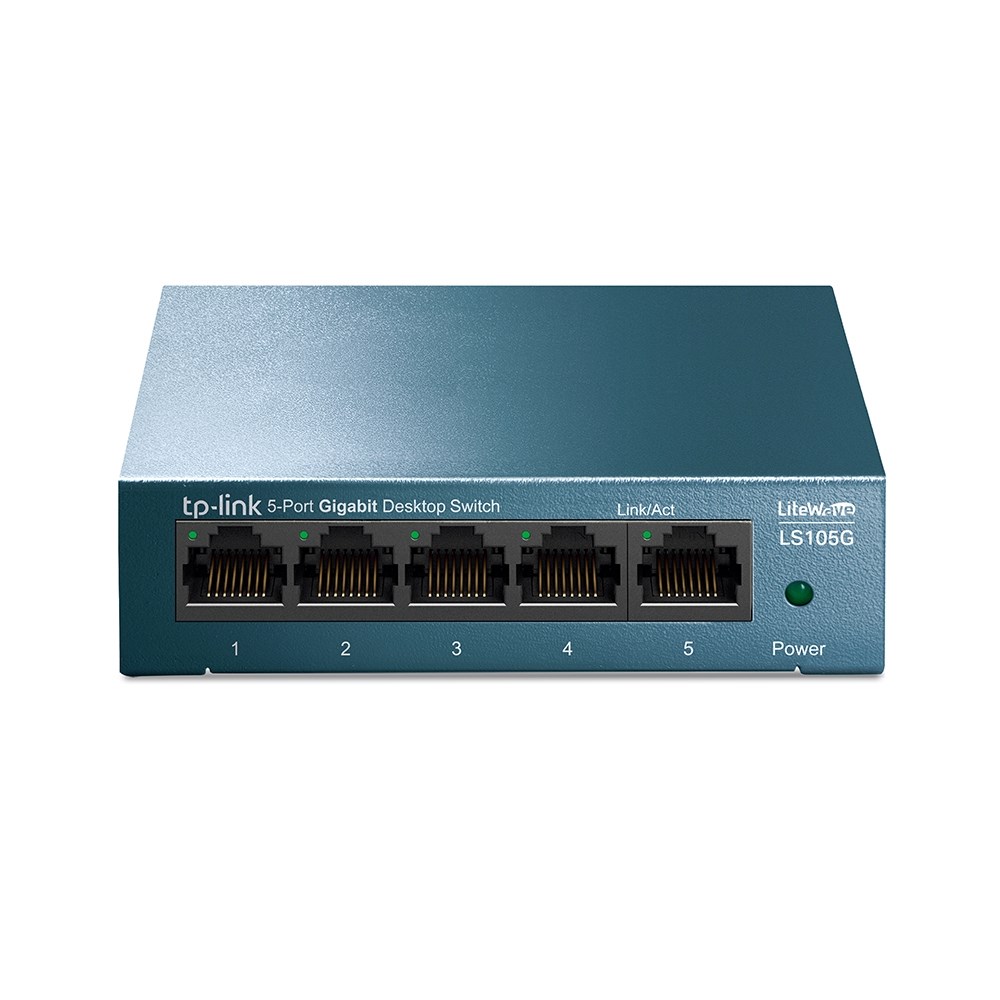

TP-Link 5-Port 10/100/1000Mbps Desktop Network Switch

Certification: CE, FCC, RoHS

Design
Rack mounting: No
Wall mountable: Yes
Housing material: Plastic
LED indicators: Activity, Link, Power
Product colour: Black

Power
Power source: DC
Power supply included: Yes
Input voltage: 5 V
Power consumption (max): 3.7 W
Input current: 0.6 A

Operational conditions
Heat dissipation: 12.617 BTU/h
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 10 - 90%

Management features
Switch type: Unmanaged

Weight & dimensions
Width: 90 mm
Height: 23 mm
Depth: 72 mm

Network
Flow control support: Yes
Auto-negotiation: Yes
Auto MDI/MDI-X: Yes
10G support: No
Networking standards: IEEE 802.3x, IEEE 802.3u, IEEE 802.3i

Packaging data
Package width: 91 mm
Package depth: 94 mm
Quick start guide: Yes
Package type: Box
Package height: 84 mm
Package weight: 180 g

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Packet buffer memory: 1.5 MB
Switching capacity: 10 Gbit/s
Forwarding rate: 7.4 Mpps
MAC address table: 2000 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 16000

Power over Ethernet (PoE)
Power over Ethernet (PoE): No
