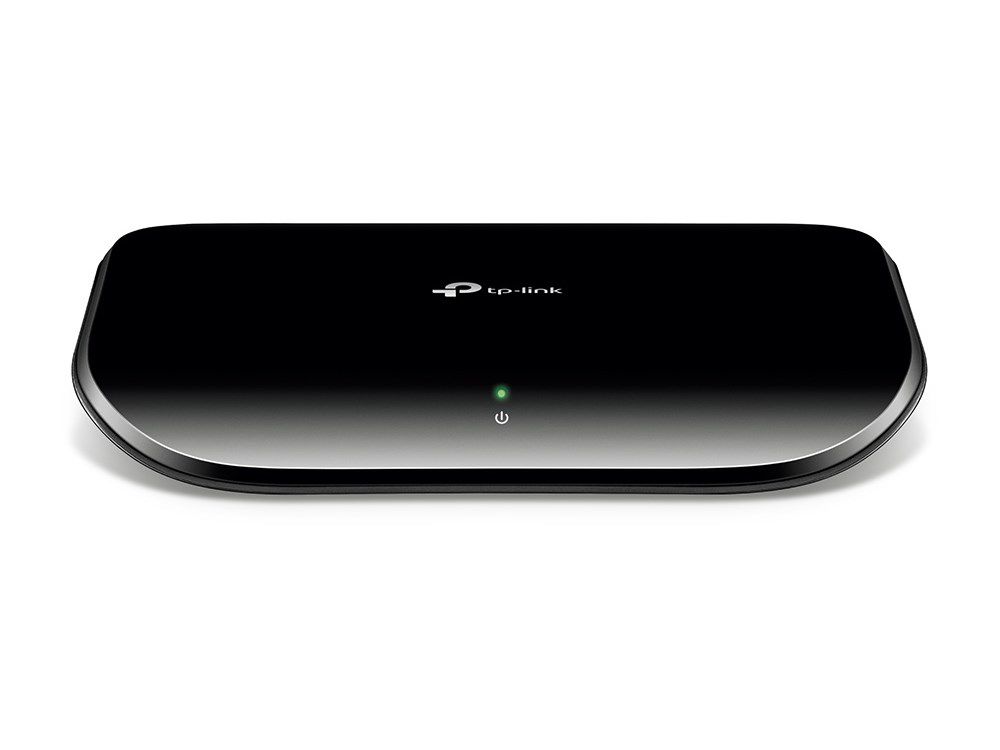

TP-Link 5-Port Gigabit Desktop Network Switch

Design
Stackable: No
Product colour: Black
Rack mounting: No
LED indicators: Yes

Power
Power supply included: No
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power source: DC
Input current: 0.6 A
Input voltage: 9 V
Power consumption (max): 2.47 W

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Heat dissipation: 8.22 BTU/h
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C

Management features
Switch type: Unmanaged

Weight & dimensions
Depth: 108 mm
Height: 28 mm
Width: 165 mm

Network
Half duplex: Yes
Auto-negotiation: Yes
Auto MDI/MDI-X: Yes
Full duplex: Yes
MAC address auto-aging supported: Yes
MAC address auto-learning supported: Yes
Networking standards: IEEE 802.3x, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab
Flow control support: Yes
10G support: No
Compatible operating systems: Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10, MacOS, NetWare, UNIX, Linux

Performance
Fanless: Yes
Maximum cable length: 100 m

Packaging data
Package height: 85 mm
Package weight: 180 g
Quick start guide: Yes
Package depth: 145 mm
Package width: 108 mm

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack
Gigabit Ethernet (copper) ports quantity: 5

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
MAC address table: 8000 entries
Jumbo frames: 15000
Switching capacity: 10 Gbit/s
Jumbo frames support: Yes
Store-and-forward: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE): No
