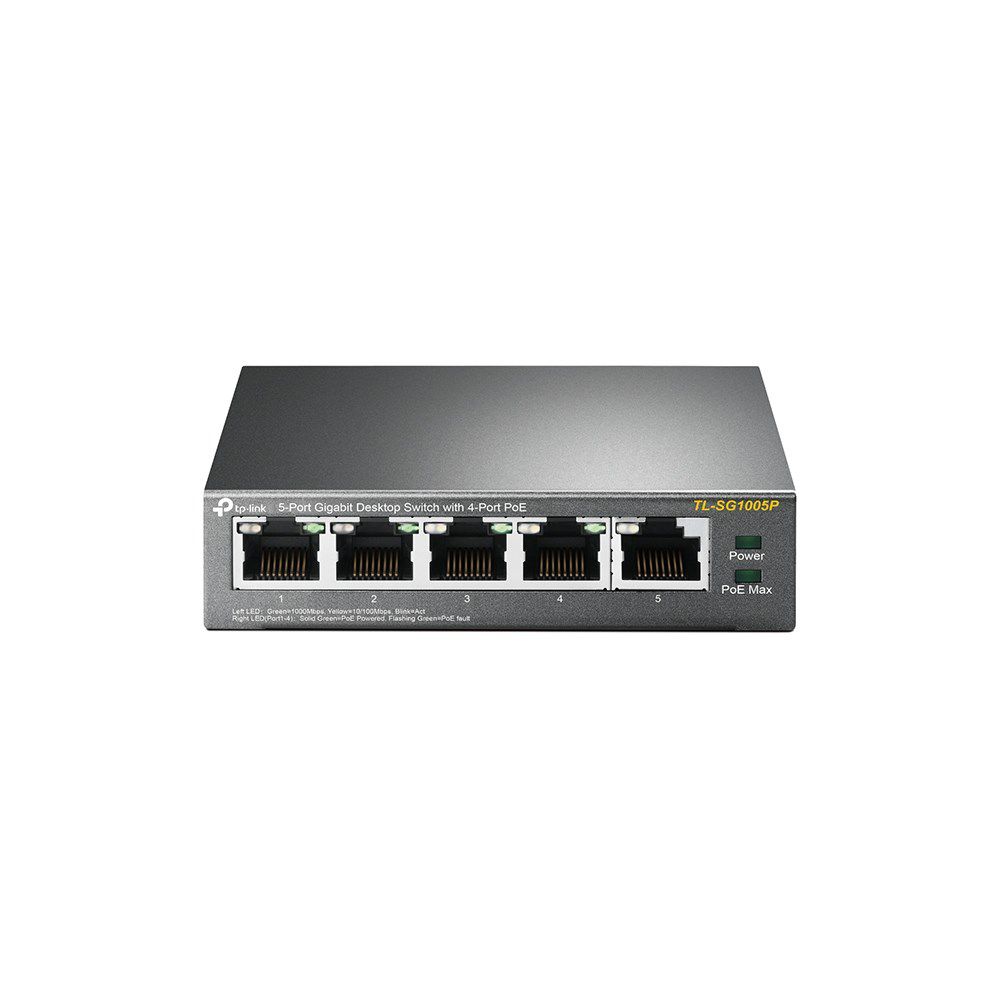

TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port

Technical details
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE

Design
LED indicators: Yes
Stackable: No
Product colour: Black
Rack mounting: No

Power
DC input voltage: 48 V
Power source: DC/PoE
Power supply included: Yes
Input current: 1.25 A
Power consumption (max): 64.44 W

Security
IGMP snooping: Yes

Operational conditions
Heat dissipation: 219.87 BTU/h
Storage relative humidity (H-H): 5 - 90%
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C

Management features
Switch type: Unmanaged
Quality of Service (QoS) support: Yes

Weight & dimensions
Depth: 98 mm
Width: 99.8 mm
Height: 25 mm

Network
Networking standards: IEEE 802.3u, IEEE 802.3, IEEE 802.1p, IEEE 802.3x, IEEE 802.3af
Cable types supported: Cat3, Cat5, Cat5e, Cat4, Cat6
Copper ethernet cabling technology: 100BASE-TX, 10BASE-T, 1000BASE-T
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Flow control support: Yes
10G support: No
MAC address auto-learning supported: Yes
MAC address auto-aging supported: Yes

Performance
Maximum cable length: 100 m
Fanless: Yes

Packaging data
Package width: 131 mm
AC adapter included: Yes
Package type: Box
Package height: 121 mm
Package depth: 196 mm
User guide: Yes
Package weight: 800 g

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Gigabit Ethernet (copper) ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Store-and-forward: Yes
Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2000 entries

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 56 W
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet (PoE): Yes

Sustainability
Sustainability compliance: Yes
Sustainability certificates: CE, RoHS, Federal Communications Commission (FCC)
