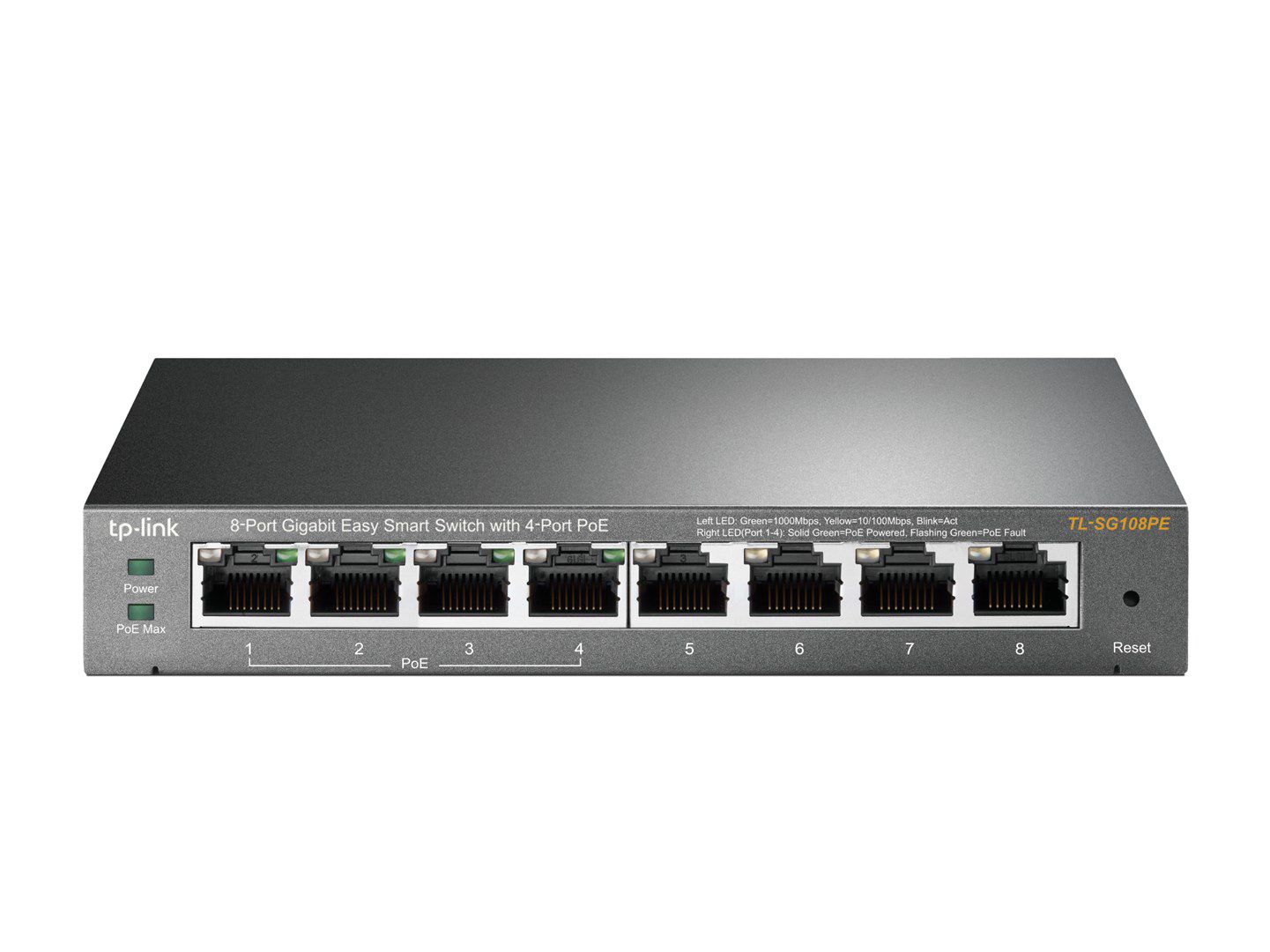

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE

Design
Product colour: Black
LED indicators: PoE, Speed, Link, Activity, Status, Power

Power
Power source: DC
Power consumption (max): 65.2 W
Input voltage: 48 V
AC input frequency: 50 Hz
AC input voltage: 220 V
Input current: 1.25 A
Power supply included: Yes

Security
IGMP snooping: Yes
Loop protection: Yes

Operational conditions
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 256.19 BTU/h

Management features
Web-based management: Yes
Quality of Service (QoS) support: Yes
Switch layer: L2
Switch type: Managed

Weight & dimensions
Height: 25 mm
Width: 158 mm
Depth: 101 mm

Network
Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3i
Auto MDI/MDI-X: Yes
VLAN support: Yes
Number of VLANs: 32
10G support: No
Cable types supported: Cat6, Cat4, Cat3, Cat5, Cat5e
Rate limiting: Yes
Virtual LAN features: Port-based VLAN
Port mirroring: Yes
Auto-negotiation: Yes
Broadcast storm control: Yes
Link aggregation: Yes

Packaging data
Package width: 131 mm
Package weight: 860 g
Package type: Box
Package height: 121 mm
Package depth: 196 mm

Packaging content
Cables included: AC
User guide: Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 8
Gigabit Ethernet (copper) ports quantity: 8

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Switching capacity: 16 Gbit/s
Forwarding rate: 11.9 Mpps
Jumbo frames: 15000
Store-and-forward: Yes
Packet forwarding rate (1 Gbps): 11900000 pps
MAC address table: 4000 entries
Jumbo frames support: Yes
Packet buffer memory: 1.5 MB

Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 15.4 W
Total Power over Ethernet (PoE) budget: 64 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet plus (PoE+) ports quantity: 4
