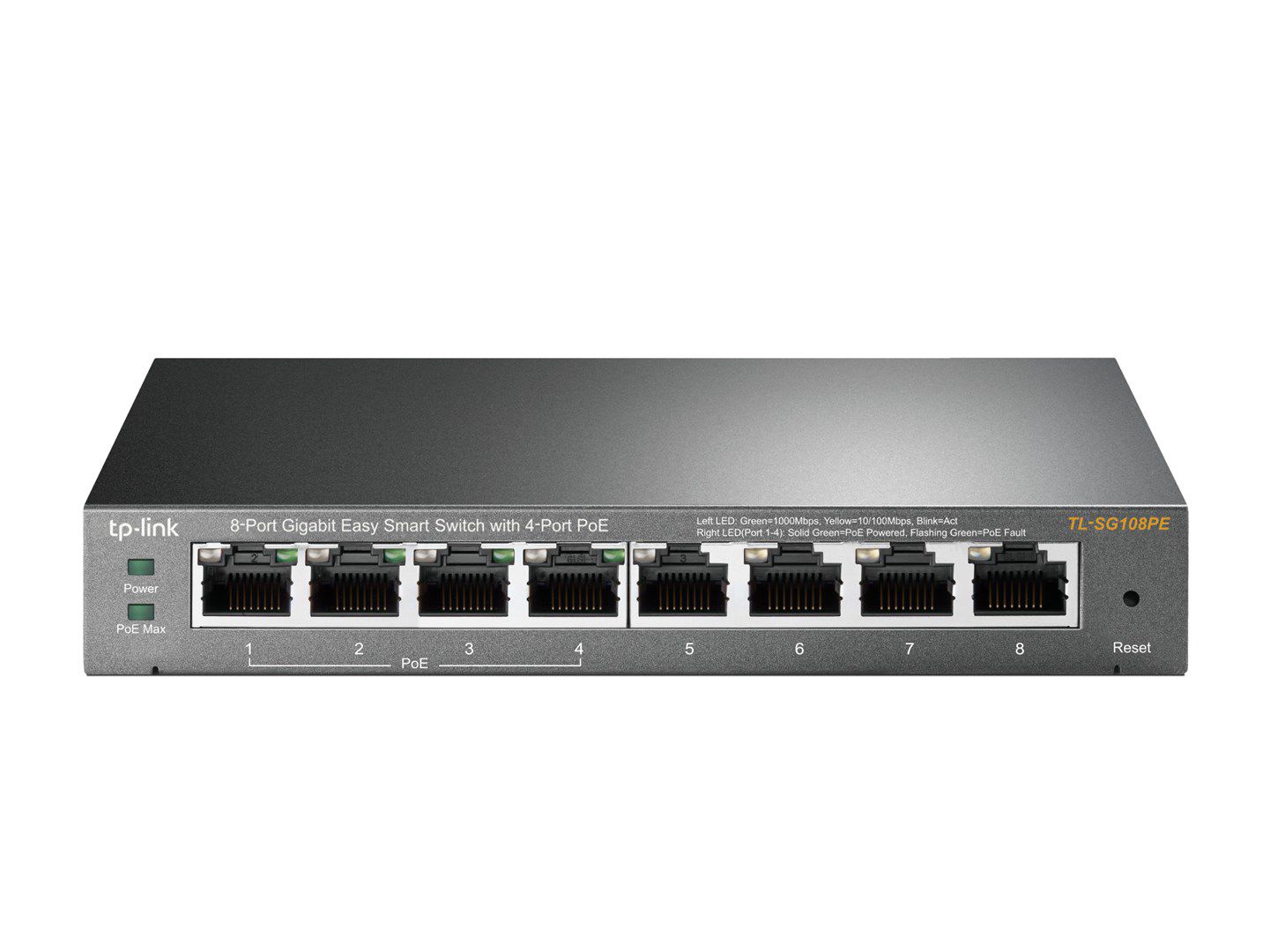

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE

Certification: FCC, CE, RoHS

Design
LED indicators: Activity, Speed, Status, Power, Link, PoE
Product colour: Black

Power
Power supply included: Yes
Input current: 1.25 A
Power source: DC
Power consumption (max): 65.2 W
Input voltage: 48 V

Security
IGMP snooping: Yes
Loop protection: Yes

Operational conditions
Storage relative humidity (H-H): 5 - 95%
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 40 °C
Heat dissipation: 256.19 BTU/h

Management features
Switch layer: L2
Quality of Service (QoS) support: Yes
Switch type: Managed
Web-based management: Yes

Weight & dimensions
Height: 25 mm
Width: 158 mm
Depth: 101 mm

Network
10G support: No
Port mirroring: Yes
Broadcast storm control: Yes
VLAN support: Yes
Networking standards: IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3i
Number of VLANs: 32
Auto-negotiation: Yes
Cable types supported: Cat3, Cat5, Cat5e, Cat4, Cat6
Link aggregation: Yes
Virtual LAN features: Port-based VLAN
Auto MDI/MDI-X: Yes

Packaging data
Package type: Box
Package weight: 890 g
Package width: 131 mm
Package height: 121 mm
User guide: Yes
Cables included: AC
Package depth: 196 mm

Ports & interfaces
Gigabit Ethernet (copper) ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 8

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Jumbo frames: 15000
MAC address table: 4000 entries
Packet buffer memory: 1.5 MB
Switching capacity: 16 Gbit/s
Forwarding rate: 11.9 Mpps
Store-and-forward: Yes
Jumbo frames support: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 15.4 W
Power over Ethernet (PoE) ports quantity: 4
Total Power over Ethernet (PoE) budget: 64 W
Power over Ethernet (PoE): Yes
