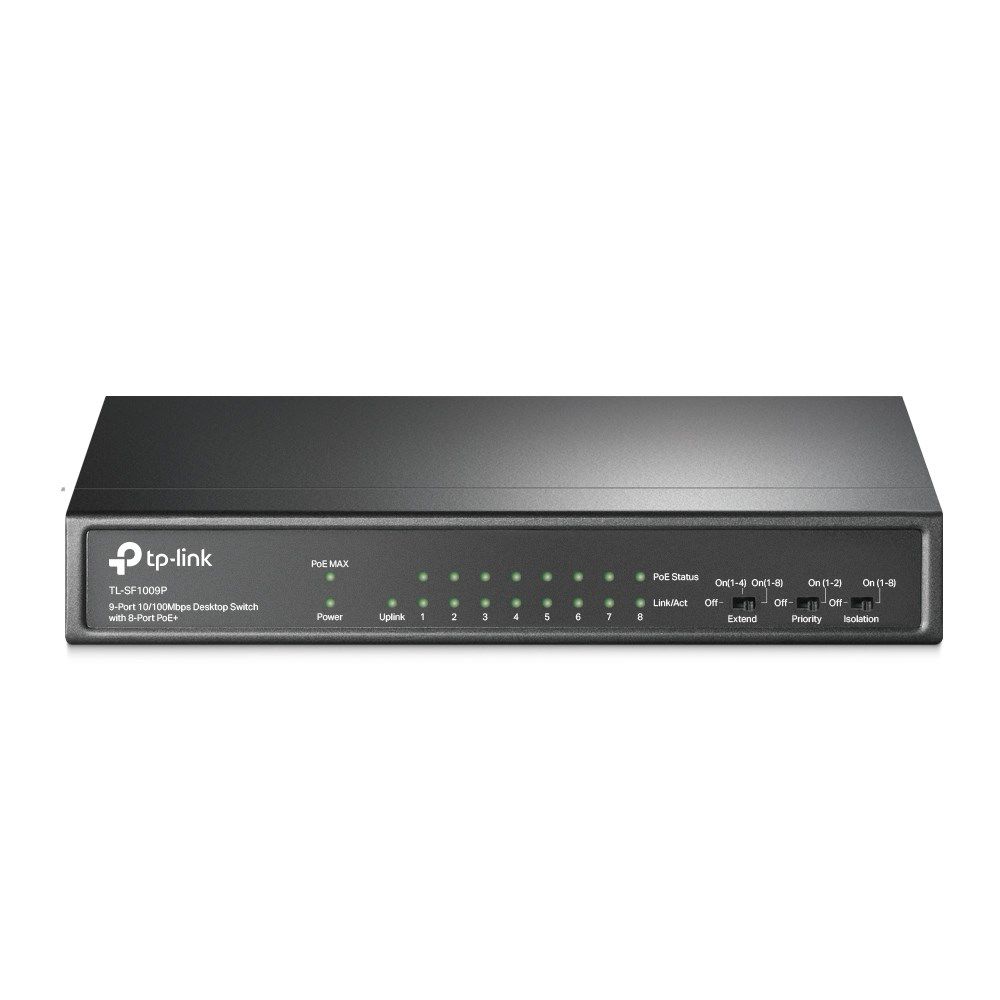

TP-Link 9-Port 10 /100Mbps Desktop Switch with 8-Port PoE+

Design
Housing material: Metal
Wall mountable: Yes
Stackable: No
LED indicators: Power, PoE, Link, Activity
Rack mounting: No
Product colour: Black

Power
Power supply included: No
Power source: DC/PoE
Input current: 1.31 A
DC input voltage: 53.5 V
Power consumption (max): 77.08 W
AC input frequency: 50 Hz
AC input voltage: 220 V

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 262.84 BTU/h

Management features
Switch type: Unmanaged

Weight & dimensions
Height: 27 mm
Depth: 98 mm
Width: 171 mm

Network
MAC address auto-learning supported: Yes
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Cable types supported: Cat5, Cat5e, Cat4, Cat3
Auto-negotiation: Yes
Full duplex: Yes
Flow control support: Yes
MAC address auto-aging supported: Yes
Auto MDI/MDI-X: Yes
Half duplex: Yes
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x, IEEE 802.3u

Performance
Fanless: Yes

Packaging data
Package depth: 280 mm
Package width: 223 mm
Package height: 68 mm
Package weight: 980 g
Package type: Box
AC adapter included: Yes

Packaging content
User guide: Yes
Certification: FCC, CE, RoHS

Certificates
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power connector: DC-in jack
Fast Ethernet (copper) ports quantity: 9
Basic switching RJ-45 Ethernet ports quantity: 9

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Store-and-forward: Yes
MAC address table: 2000 entries
Switching capacity: 1.6 Gbit/s
Forwarding rate: 1.3392 Mpps

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 65 W
Power over Ethernet plus (PoE+) ports quantity: 8

Sustainability
Sustainability compliance: Yes
